Specifications
Equipped With
Preliminary Specifications:
Measuring Range (XYZ) - 12" x 6" x 8"
Scale Resolution - 0.00004"
Table Load Capacity - 55 Lbs.
Motor Drives - DC Servos with 4-Axis Joystick Control
Zoom Lens - 12:1 AccuCentric Auto Calibration
Magnification Range - 32x to 280x
Measuring Unit Dimensions - 30" d x 26" w x 32" h
Weight, Approx - 260 Lbs (net)
Crated Shipping Weight, Approx 500 Lbs.
Equipped with:

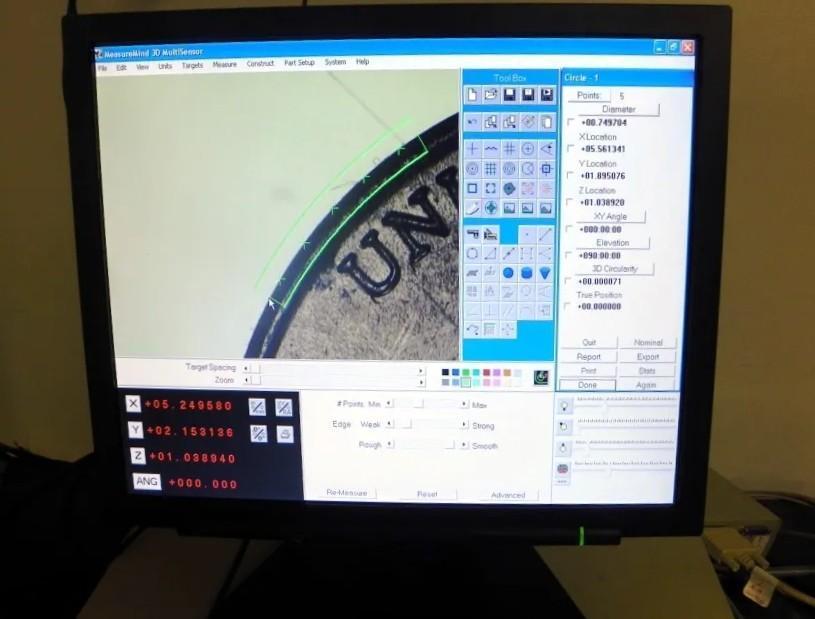

OGP Metrology Software
Renishaw PI200 Probe Interface
Renishaw TP20 Probe Body
Medium Force Probe Module
DC Servos with Variable Speed Joystick
Color Camera
Programmable Smartring Light
Manuals
* Availability Pending for servicing and checks.
* Specifications subject to independent verification by the buyer.

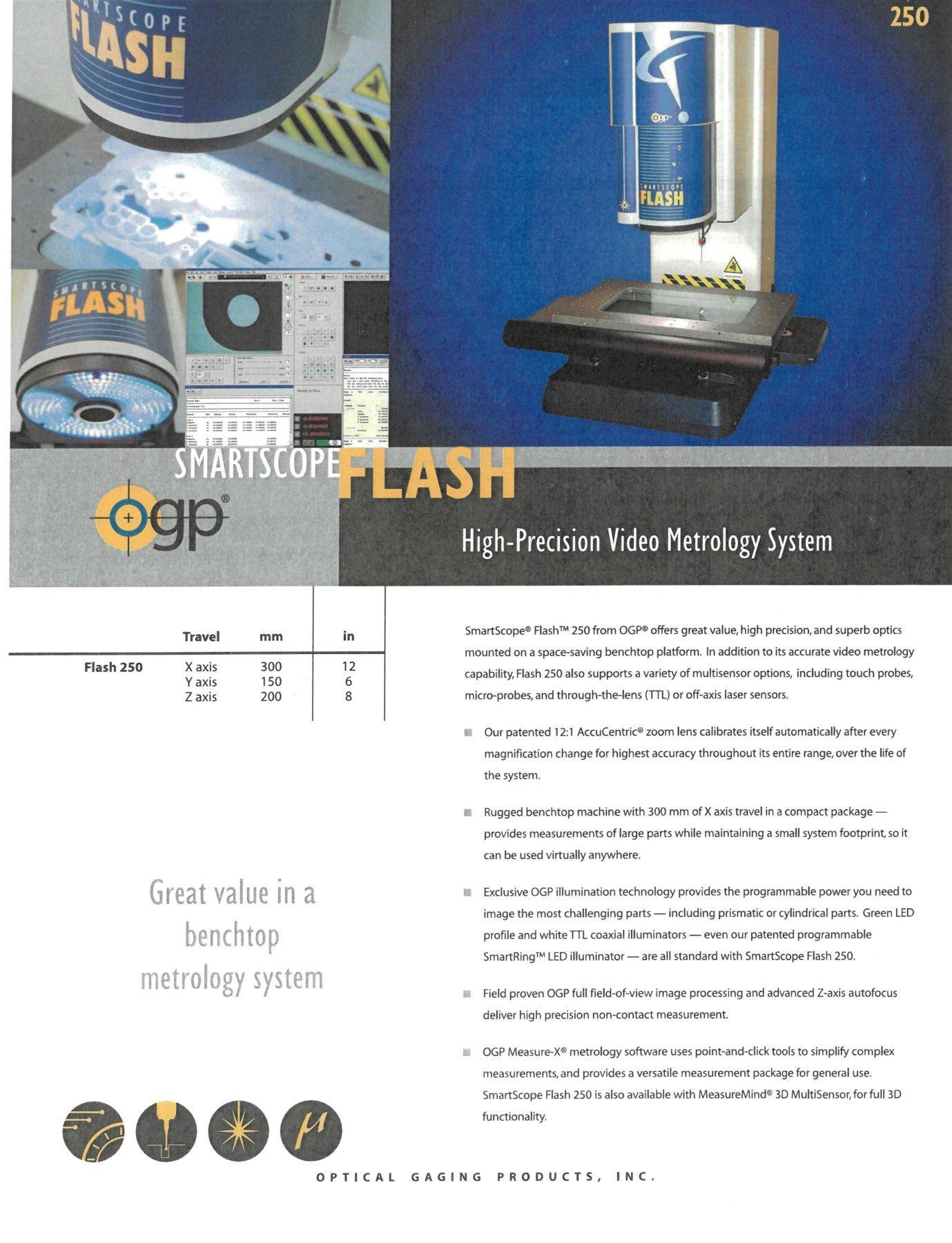

* Factory Literature is for reference only. There may be discrepancies.
* Shipping quotes available on request.
