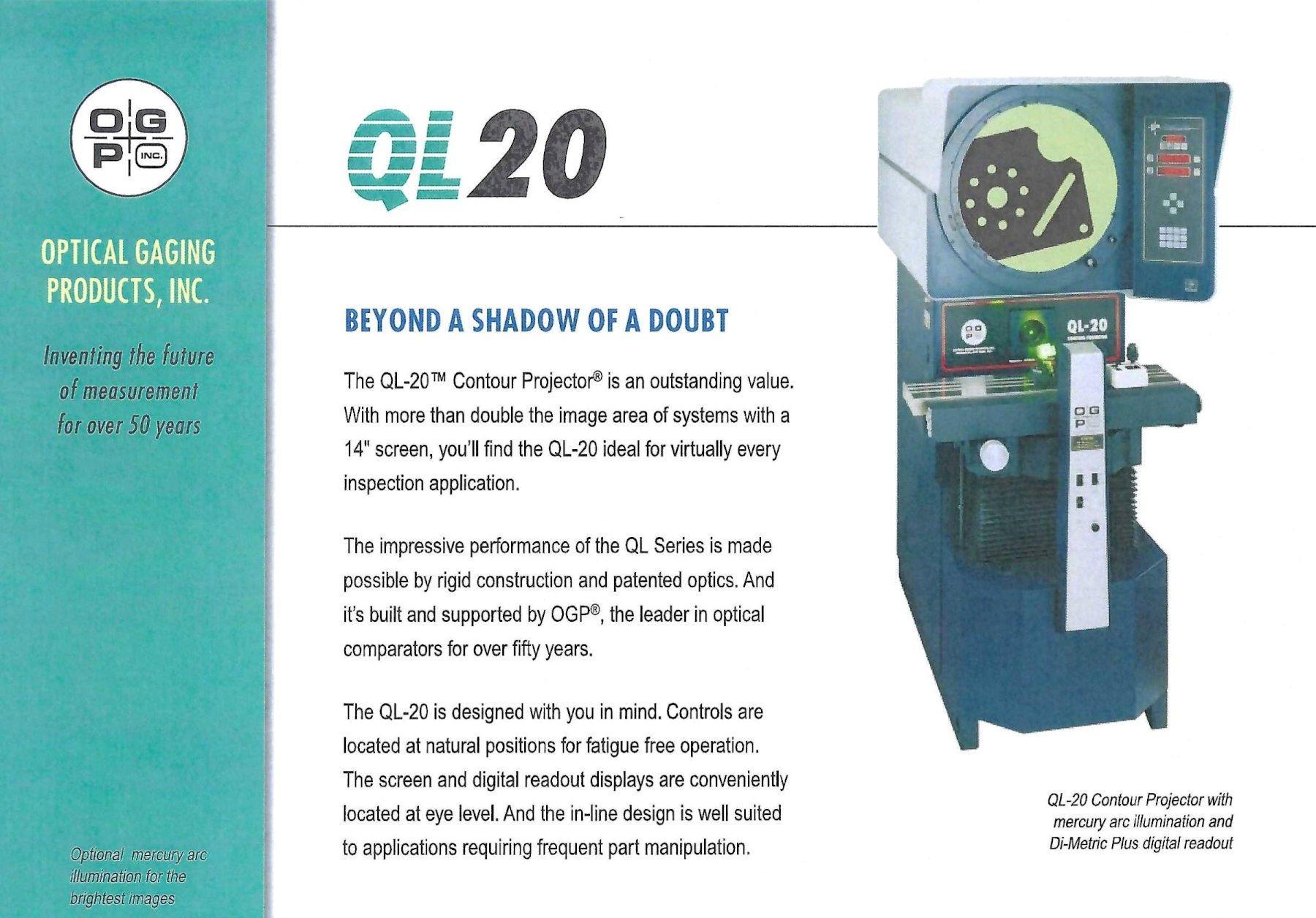

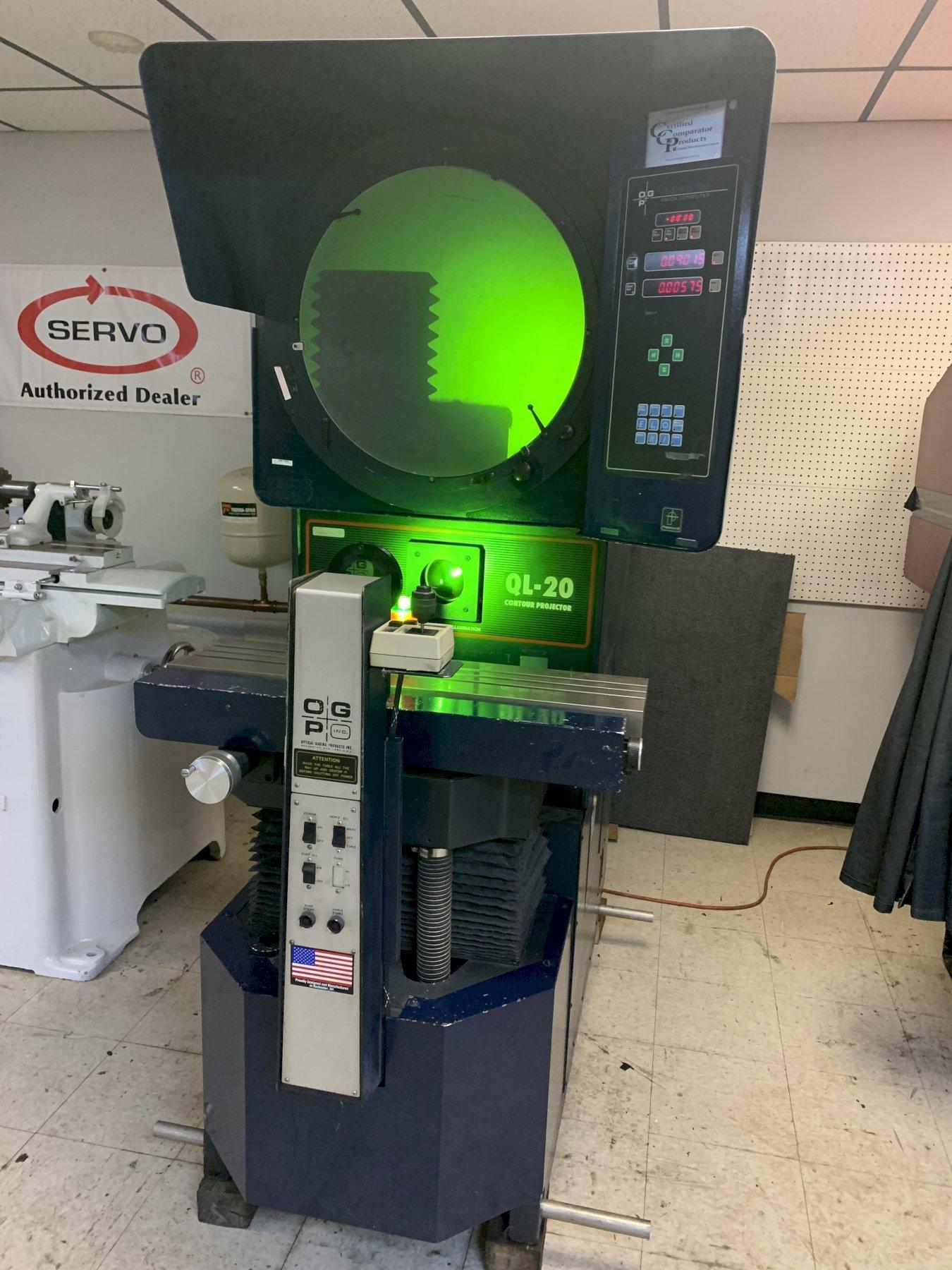

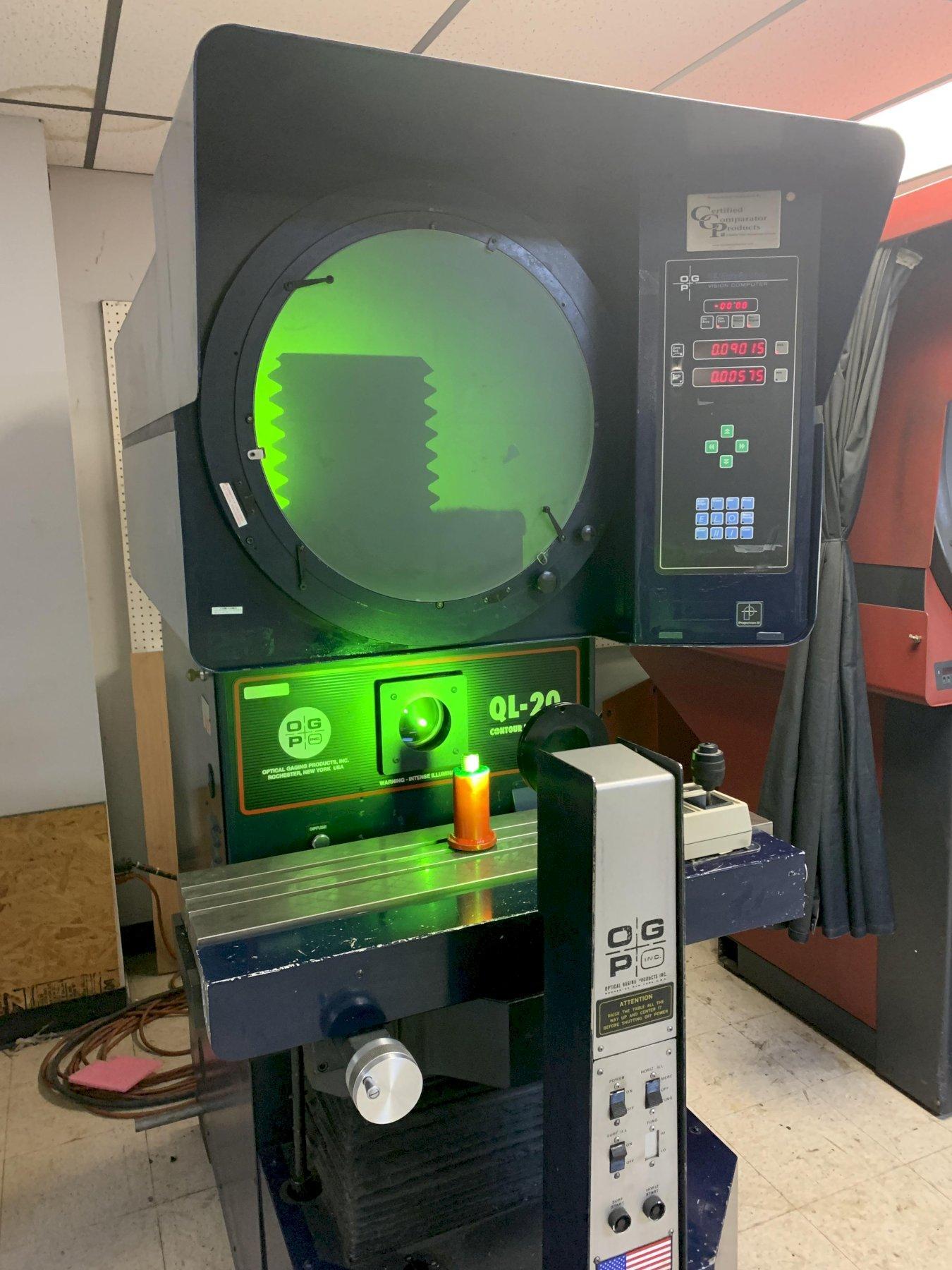

Specifications
Equipped With
Preliminary Specifications:

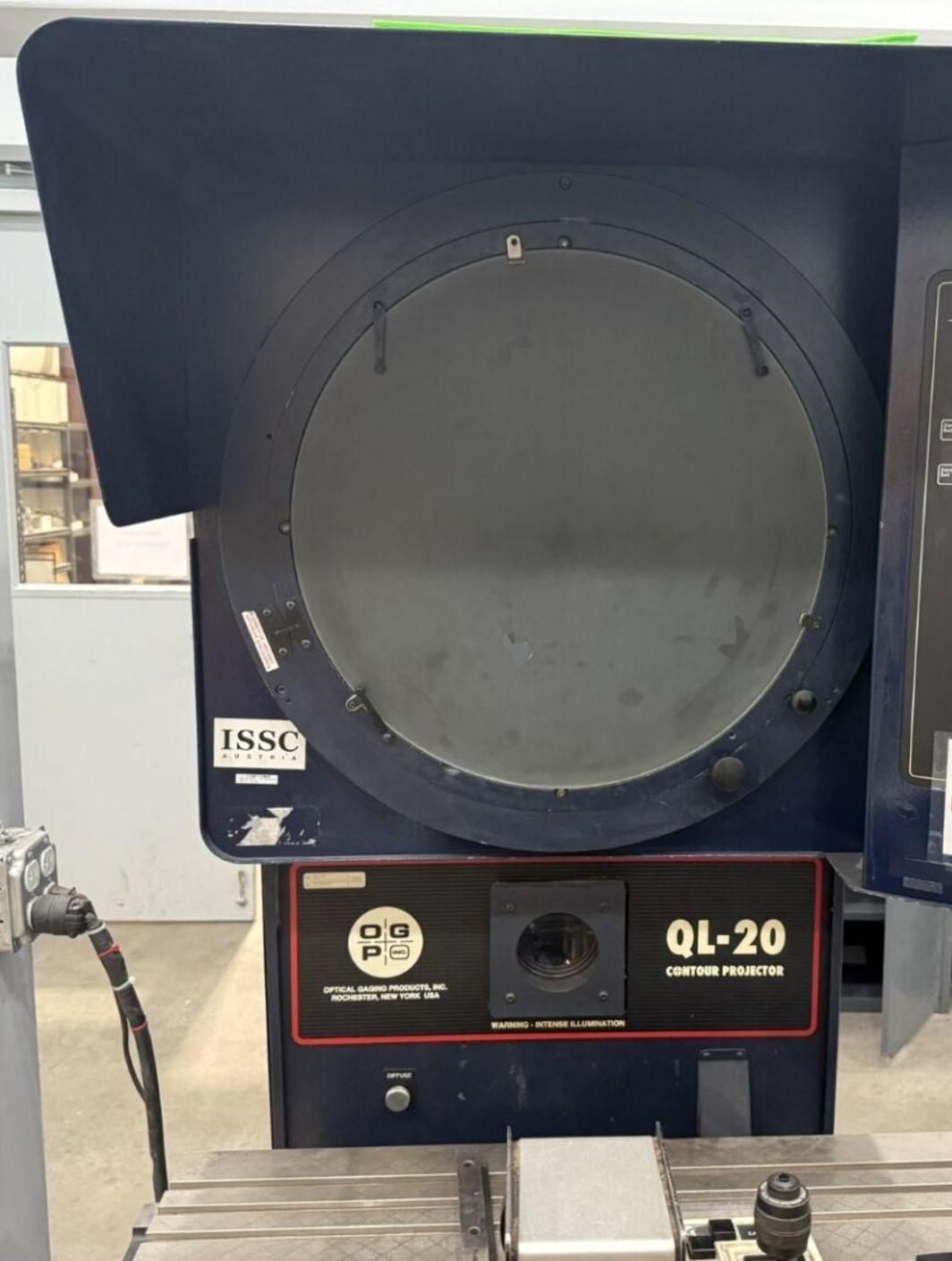

Screen Diameter - 20"
Table Size - 6-1/2" x 27"
Table Horizontal Travel - 12"
Table Vertical Travel - 6"
Focus Adjustment - 2"
Throat Clearance - 18-3/4"
Working Distance, Focal Plane to Front Relay Lens Housing - 8-3/8"
Collimator to Focal Plane - 10"
Electrics - 1/60/115 vac, 22 amp

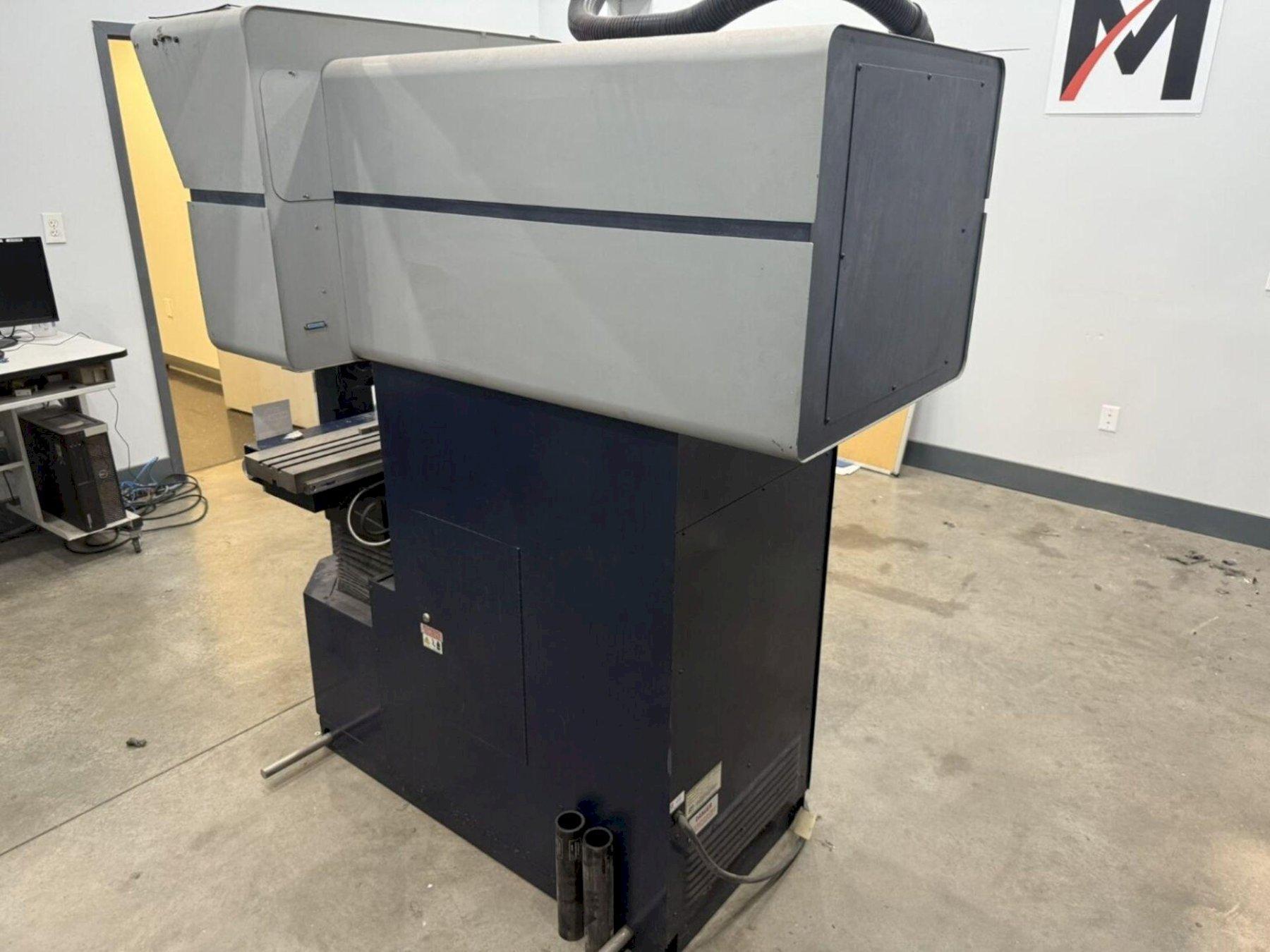

Approx Dimensions - 67" FB x 38" LR x 75" H
Approx Net Weight - 1600 Lbs.
Equipped with:

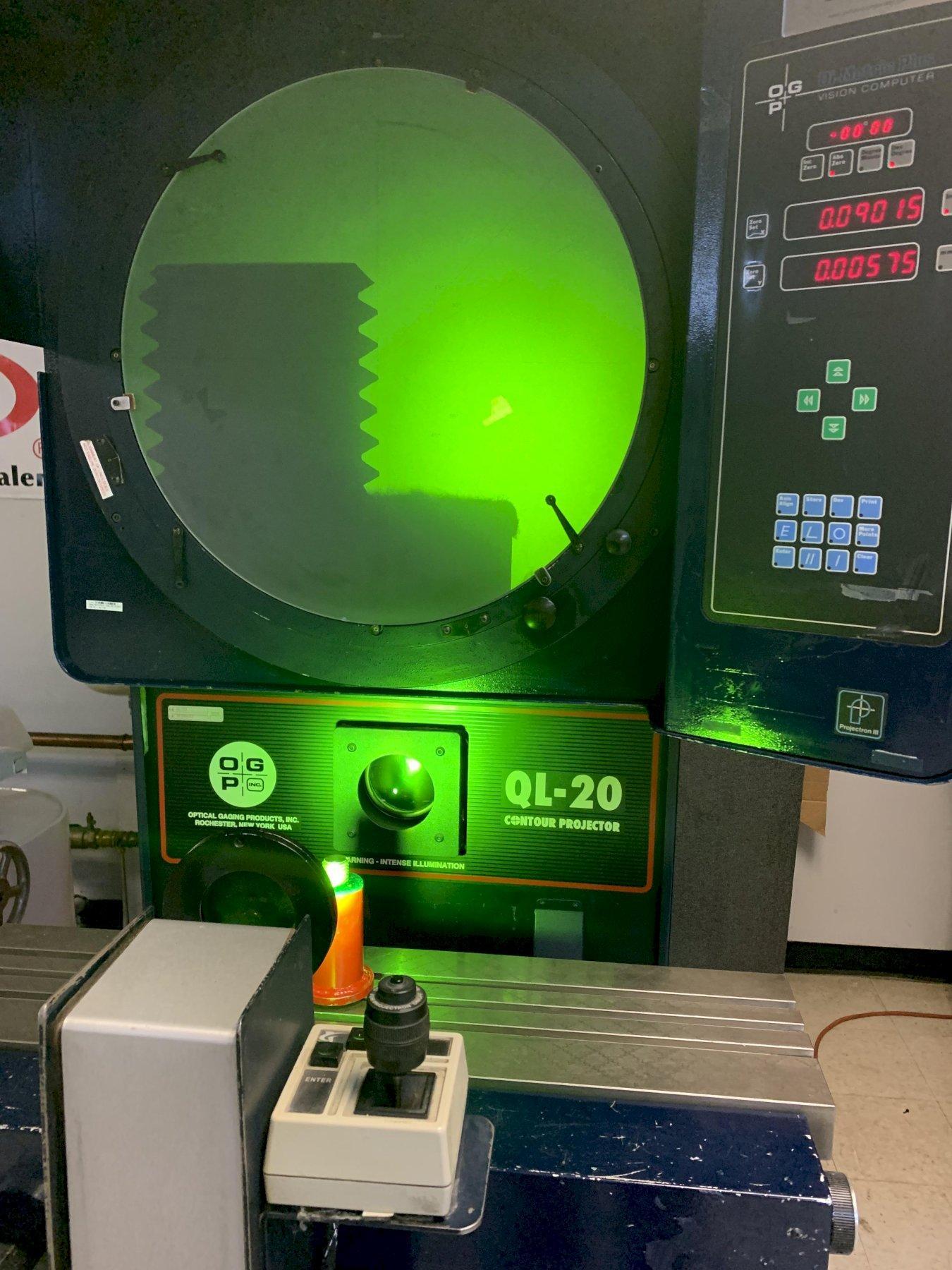

DiMetric Plus Digital Readout
0.00004" Resolutions Scales
Projectron III Edge Detection
Digital Angle Display
Power Table Travels with DC Servos and Joystick Control
Power Lens Turret
3 Lenses - 10, 20, 50x
Mercury Arc Projection
Mercury Arc Surface Illumination
Unreversed Image
All Necessary Manuals
