Specifications
Equipped With
Preliminary Specifications:

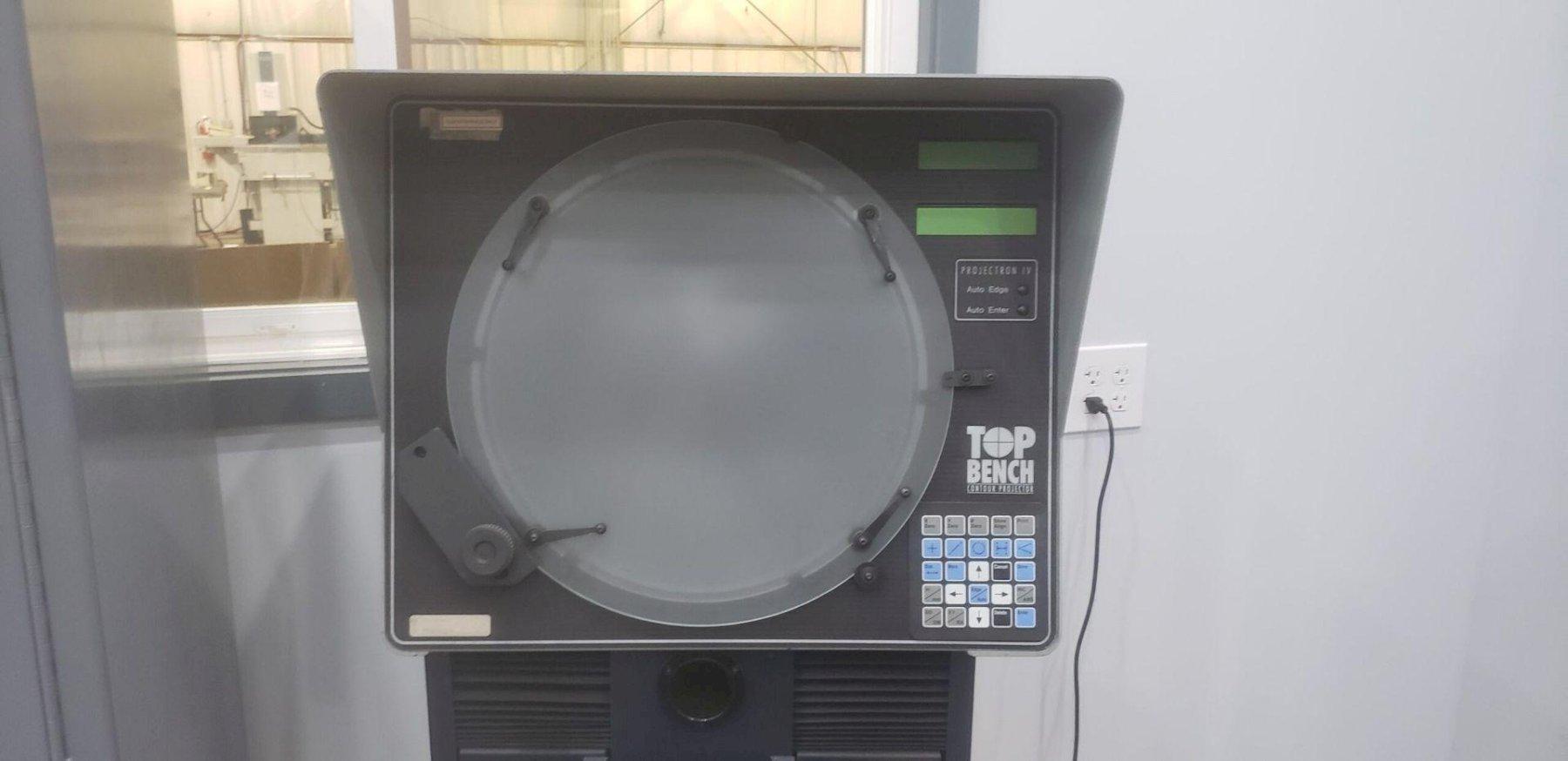

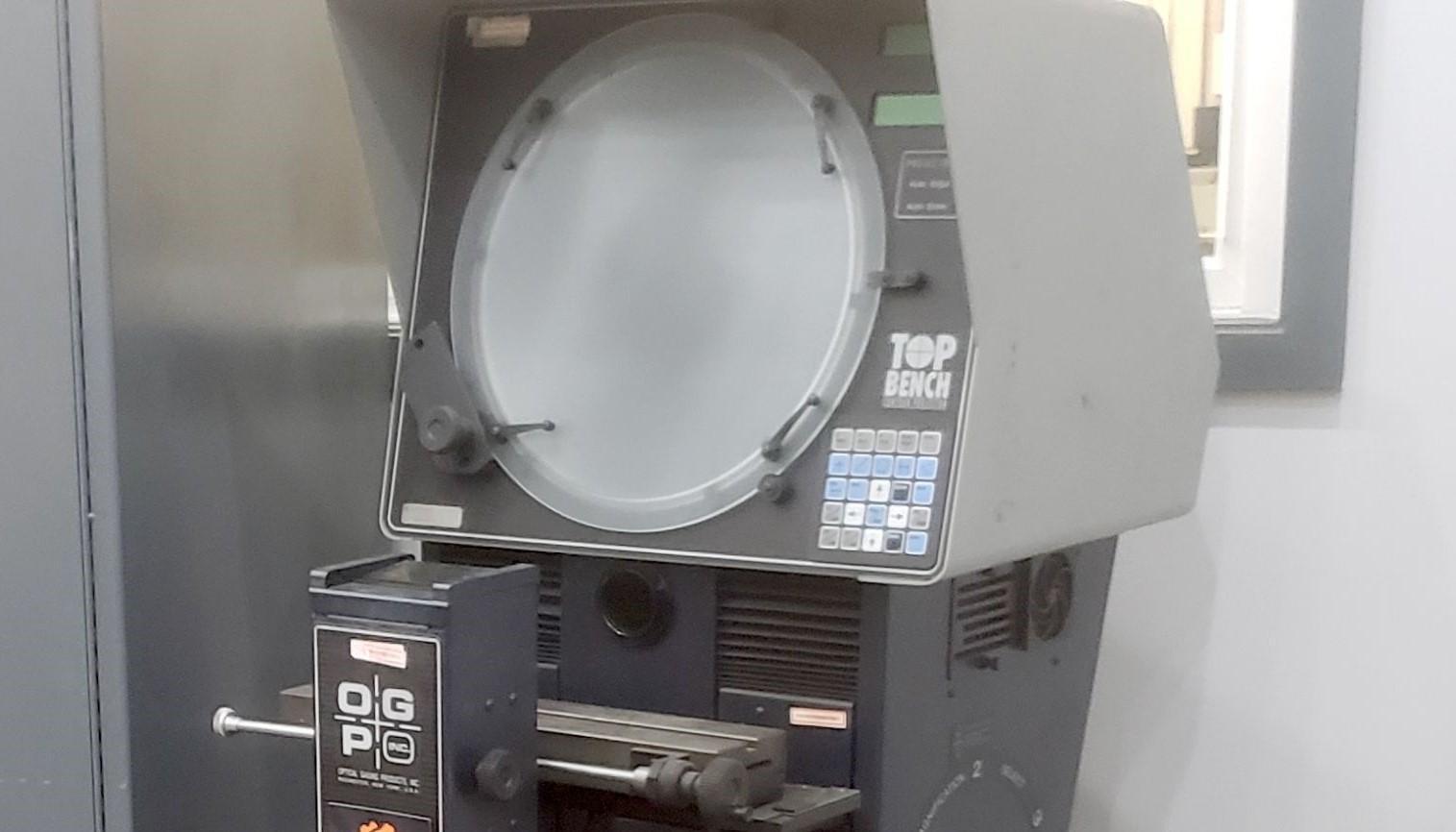

Screen Size - 14"
Table Size - 4-3/8" x 17-3/4"
Horizontal Table Travel - 12"
Vertical Table Travel - 6"
Table Load Capacity - 55 Lbs.
Chart Rotation - 360 Degrees w/Digital Display
Table Helix Adjustment - 7½º
Electrics - 1/60/115 Volts
Weight, Net / Shipping - 250 Lbs. / 400 Lbs.
Equipped with:
Built-in Digital Readout with Geometric Functions
Projectron IV Edge Detection
Digital Angle Display
Fresnel Lens for Maximum Screen Brightness
X-Axis Push Button Quick Release Travel
3 Position Lens Turret with 10 20 50x Lenses
Built-In Square-On Surface Reflection
Green Filter for Projection Lighting
Fully Correct Image (Contour & Surface)
Owners Manual
Preliminary details / arrival pending.
Specifications subject to independent verification by the buyer.
Buyer responsible for shipping. We can assist with rates on request.
