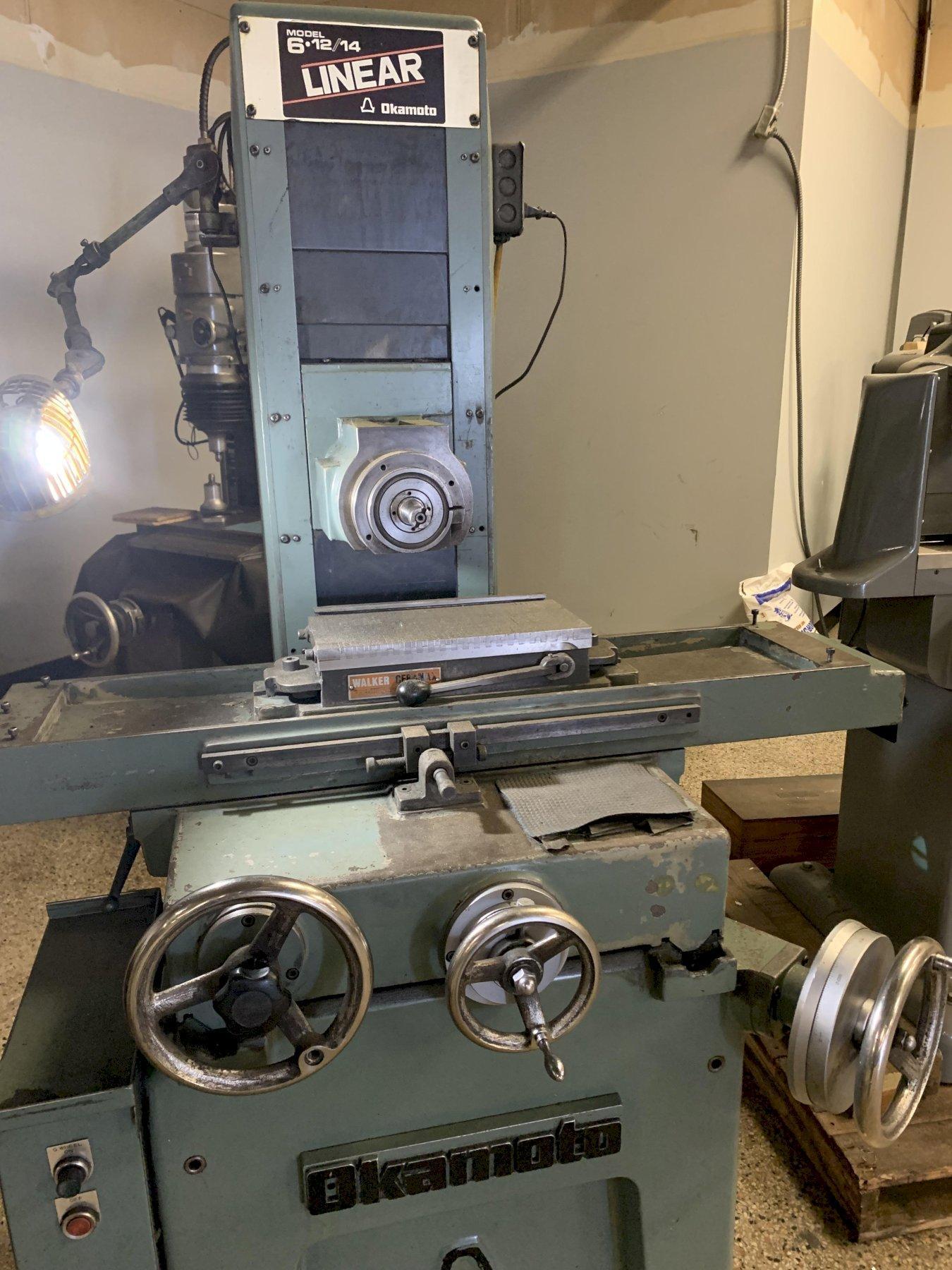

Specifications
Equipped With
Standard Specifications:
Width & Length Ground - 6" x 12"
Table to Spindle Center - 18"
Height under 8" Wheel to Chuck Surface - 11"
Longitudinal Table Travel - 14"
Cross Travel - 8"
Grinding Wheel Capacity - 8" x 1" x 1-1/4"

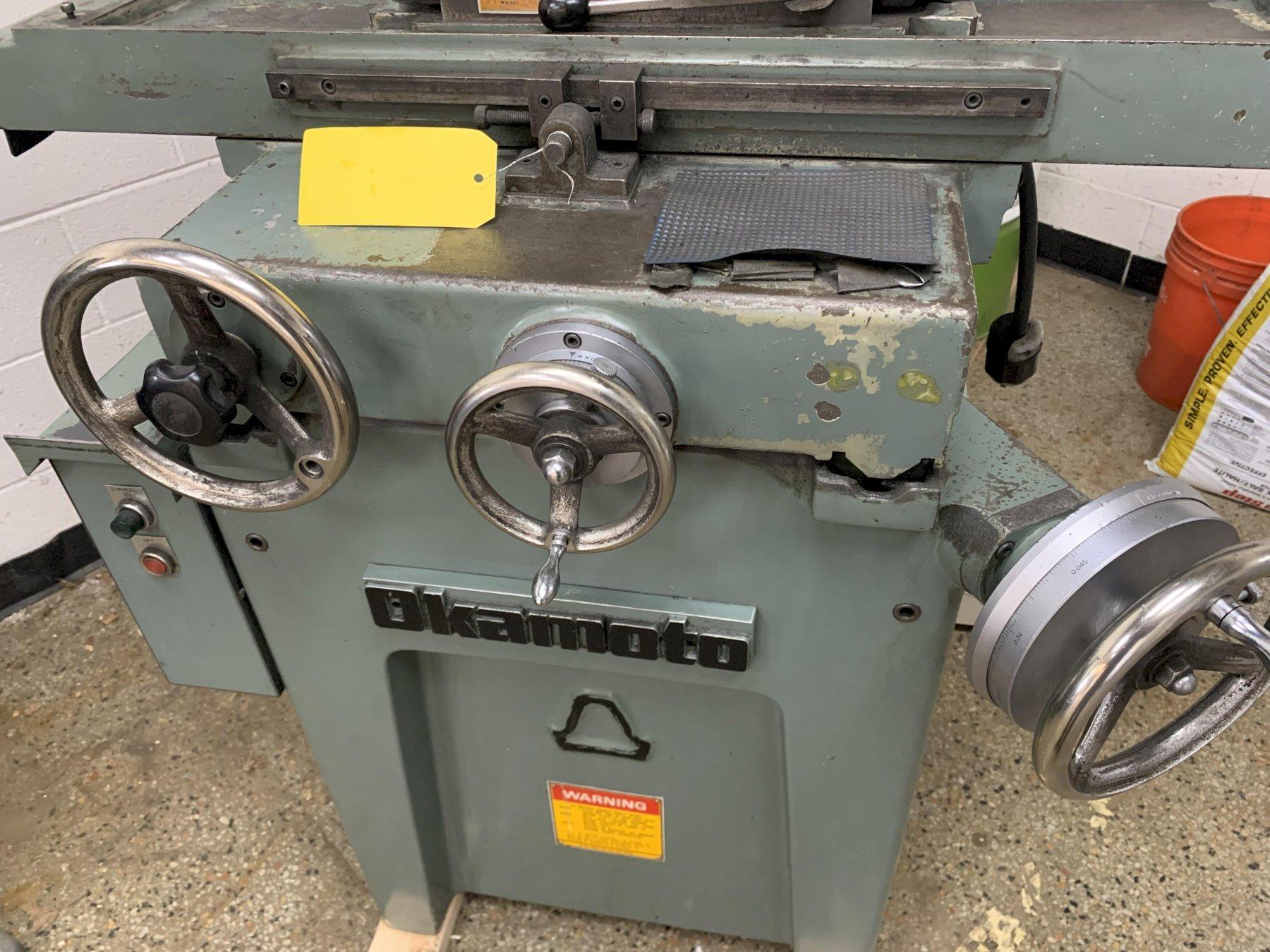

Cross Feed Per Rev. of Handwheel (.001 Grad) - 0.100"
Cross Feed Handwheel Vernier Reads to - 0.0001"
Vertical Feed Per Rev. of Handwheel (.0002 Grad) - 0.0500"

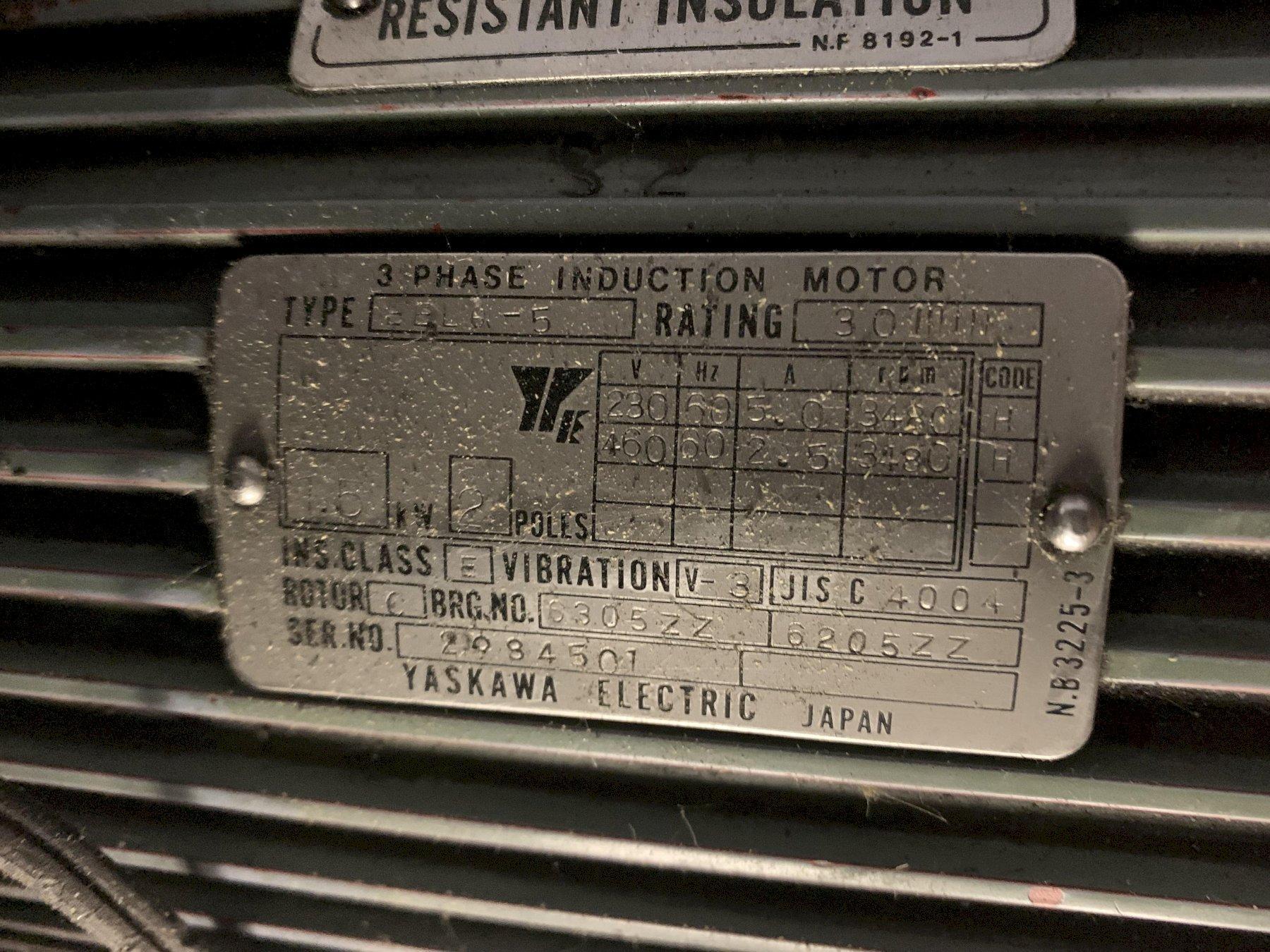

Spindle Motor - 2 HP
Approx Dimensions - 58" x 46" x 71" H
Approx Weight - 1,650 Lbs.
Equipped with:

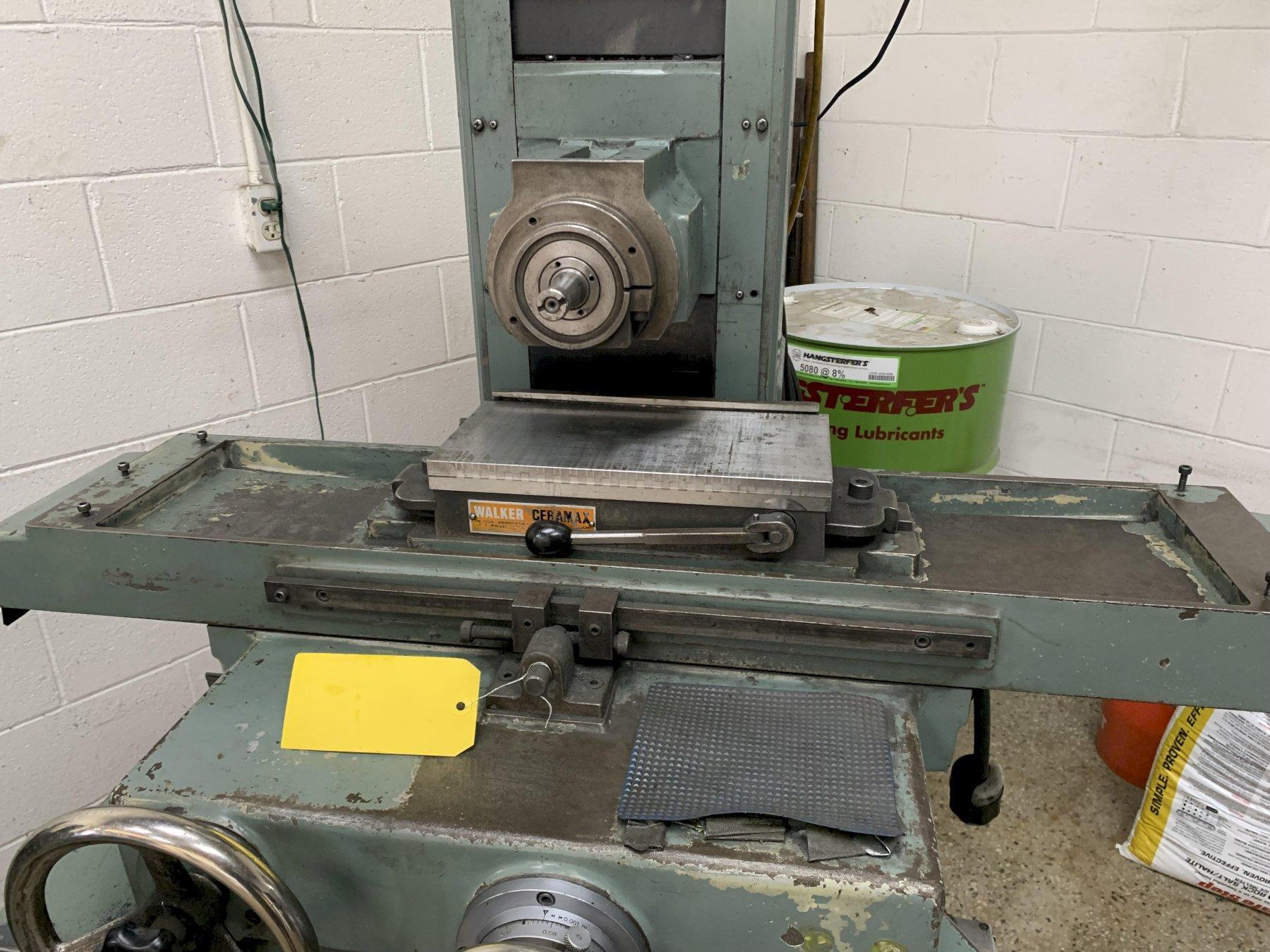

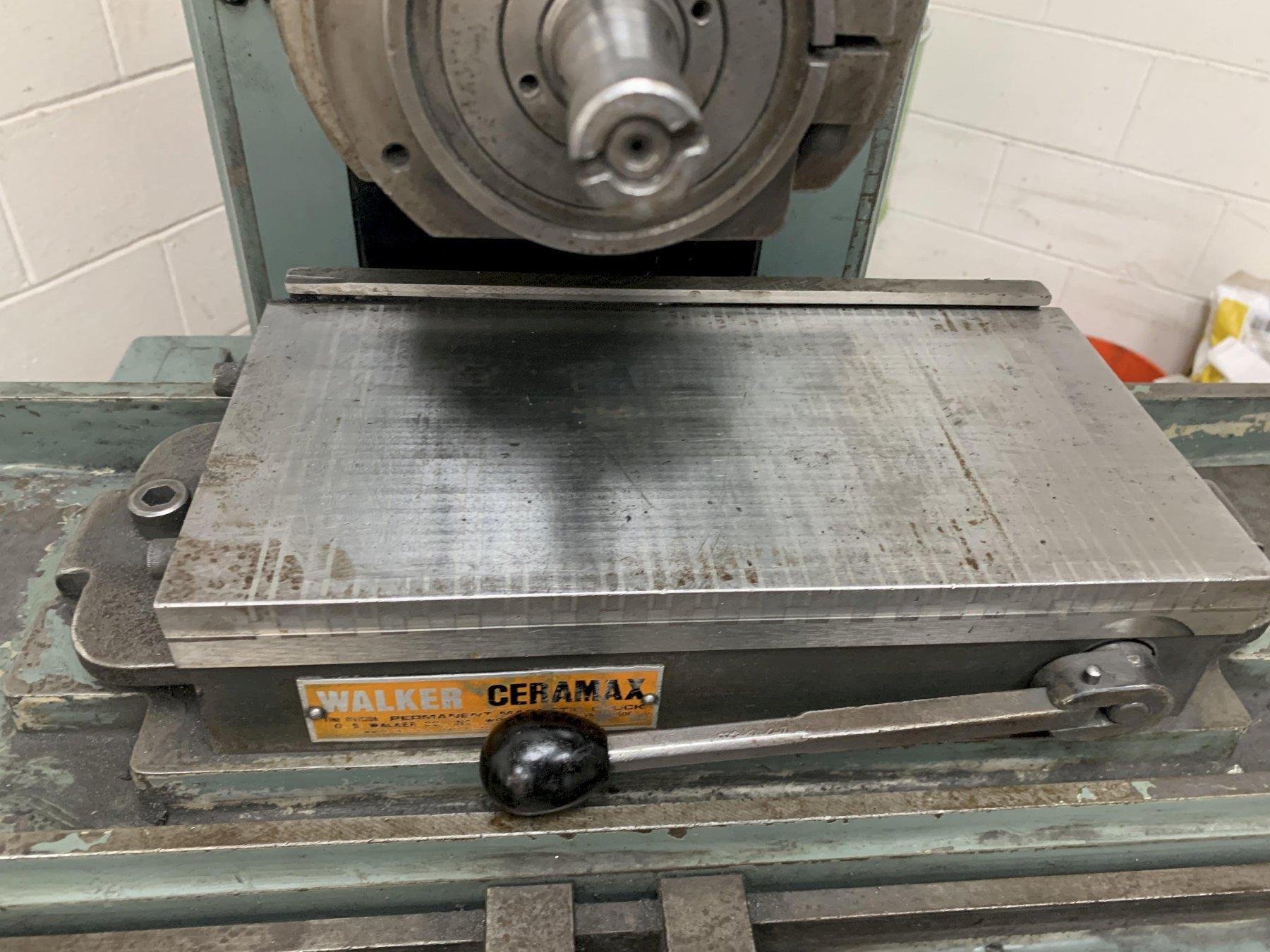

Walker-Ceramex 6" x 12" Magnetic Chuck
Longitudinal Table Travel of Linear Ball Bearings Driven by Cable System
One Shot Lube

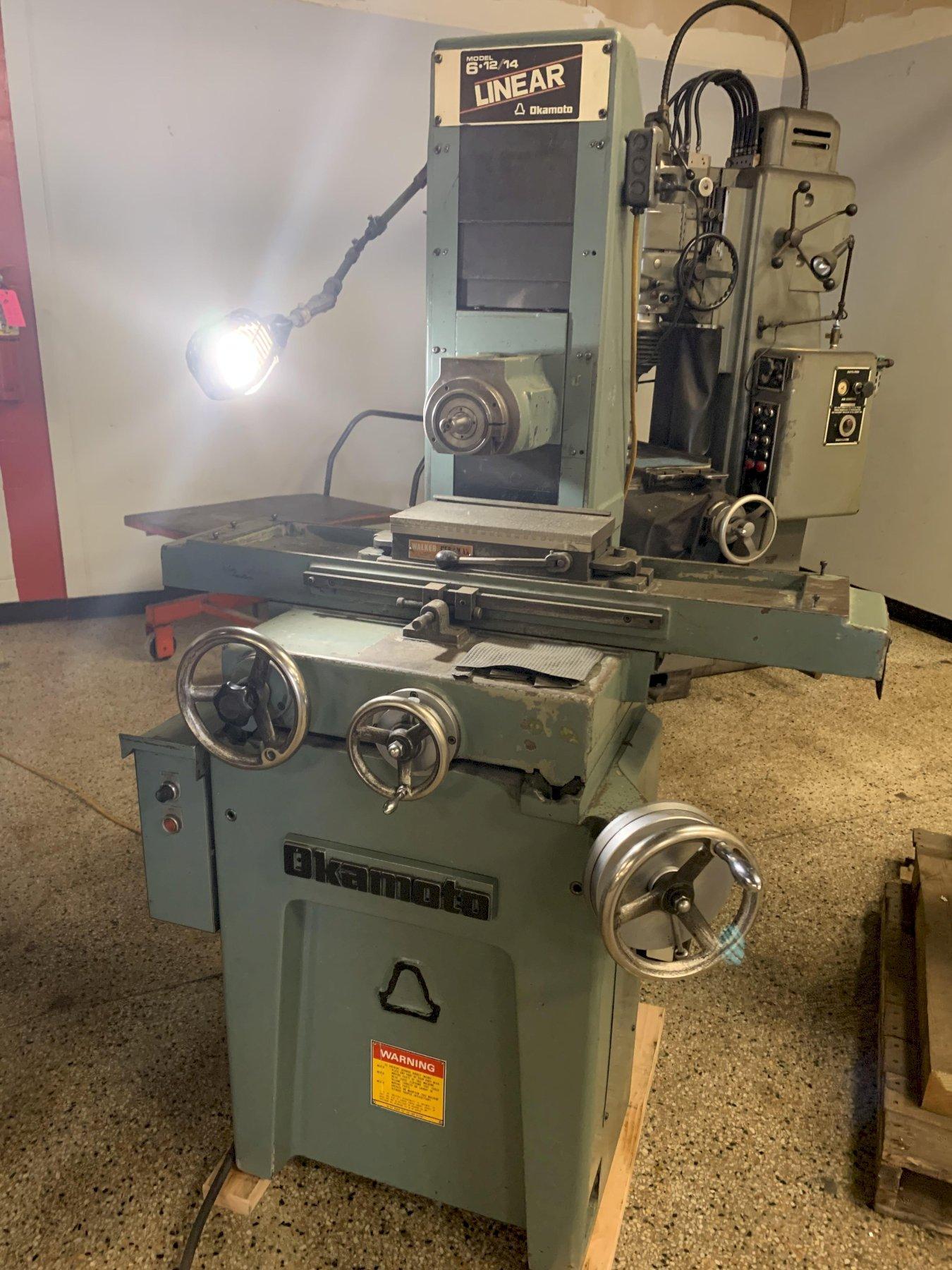

Work Light
Specifications are subject to independent verification by the buyer.
Seller can load. Extra fee to skid if required for transport.
