Specifications
Equipped With
Specifications:
Travels:
X-Axis Travel (column left/right) - 22.05"
Y-Axis travel (spindle up/down) - 15.49"
Z-Axis (table front/back) - 24.61"
Spindle center to pallet top - 1.97" to 25.98"
Spindle nose to pallet center - 3.35" to 27.95"

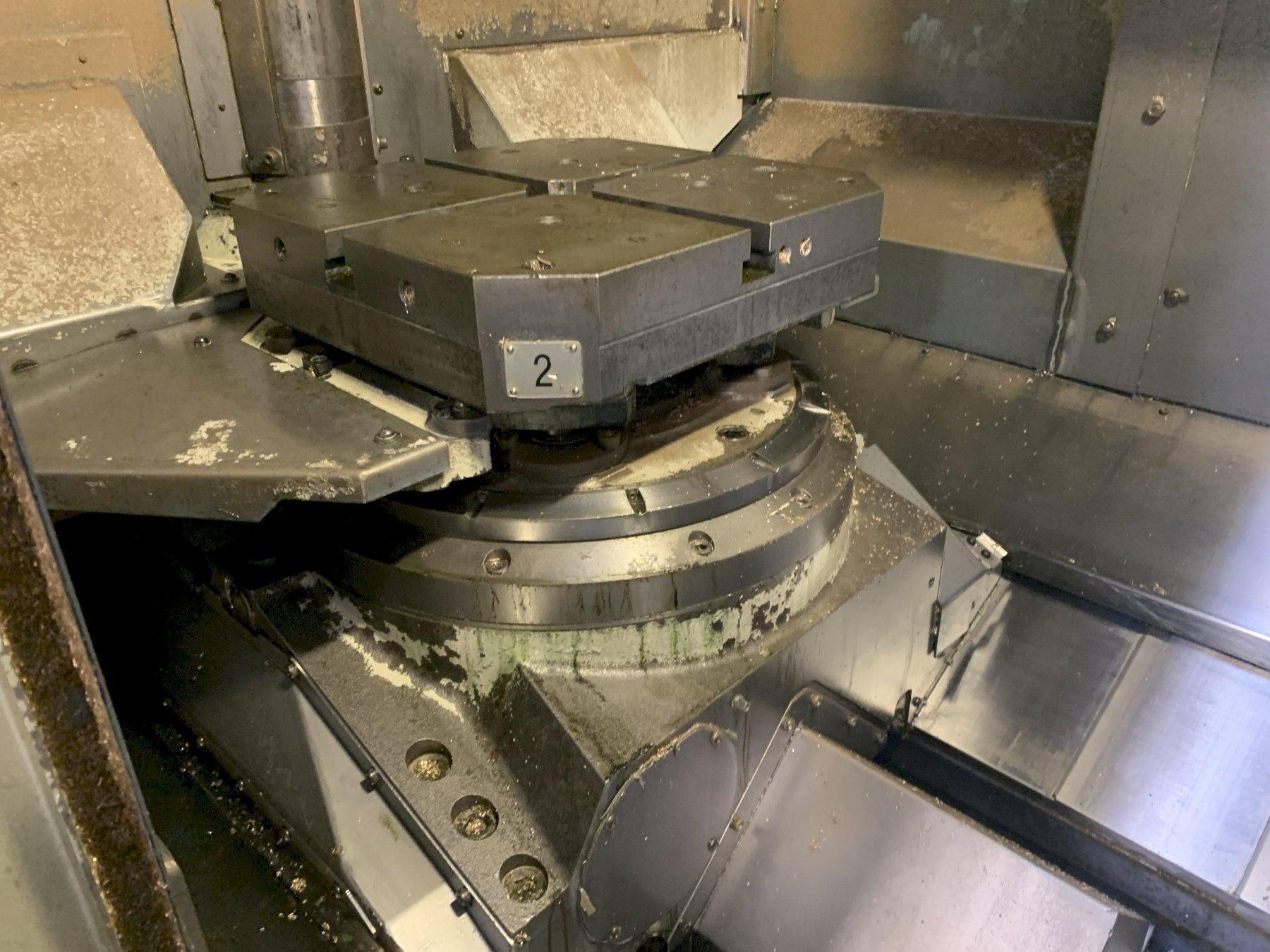

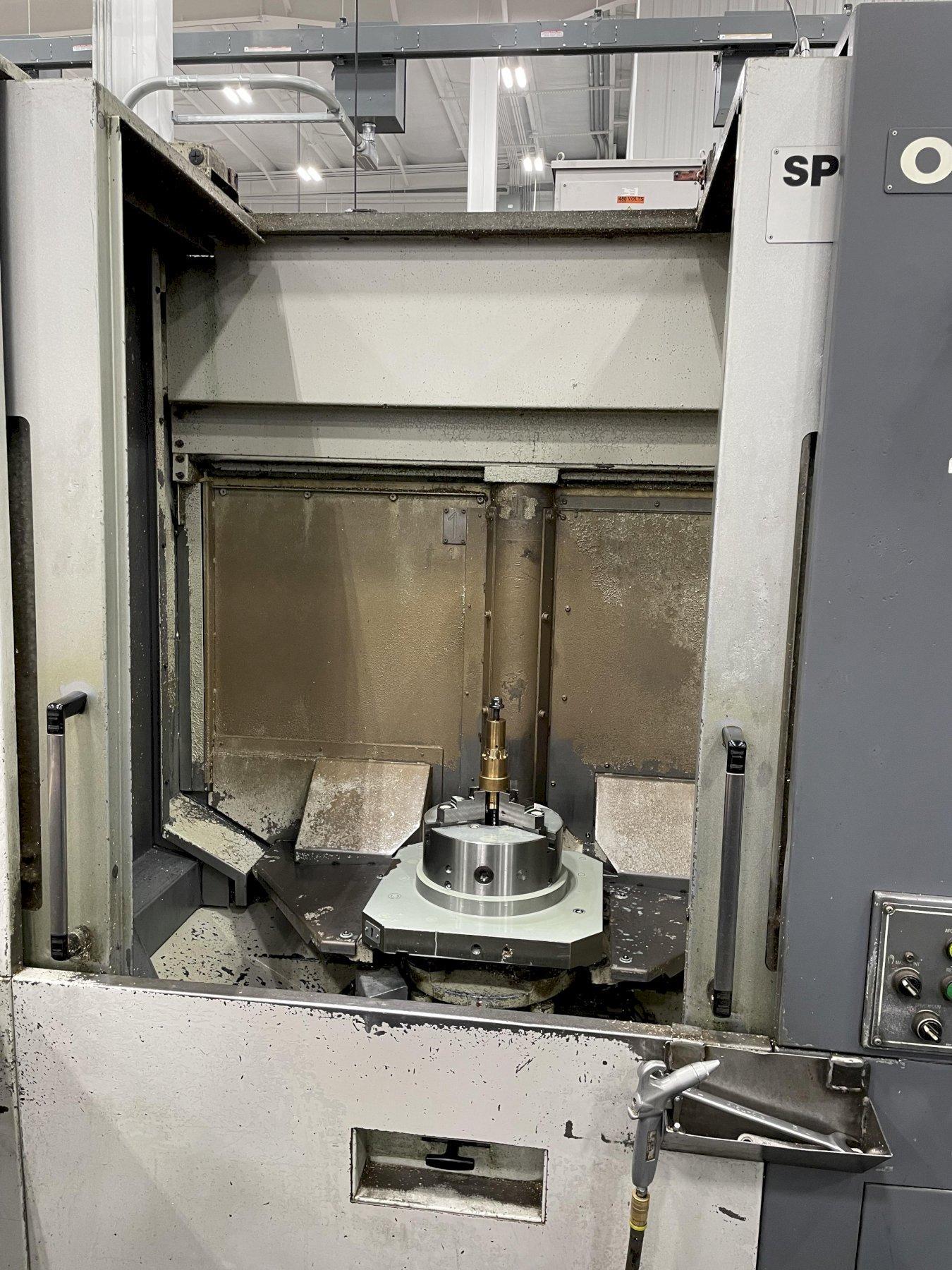

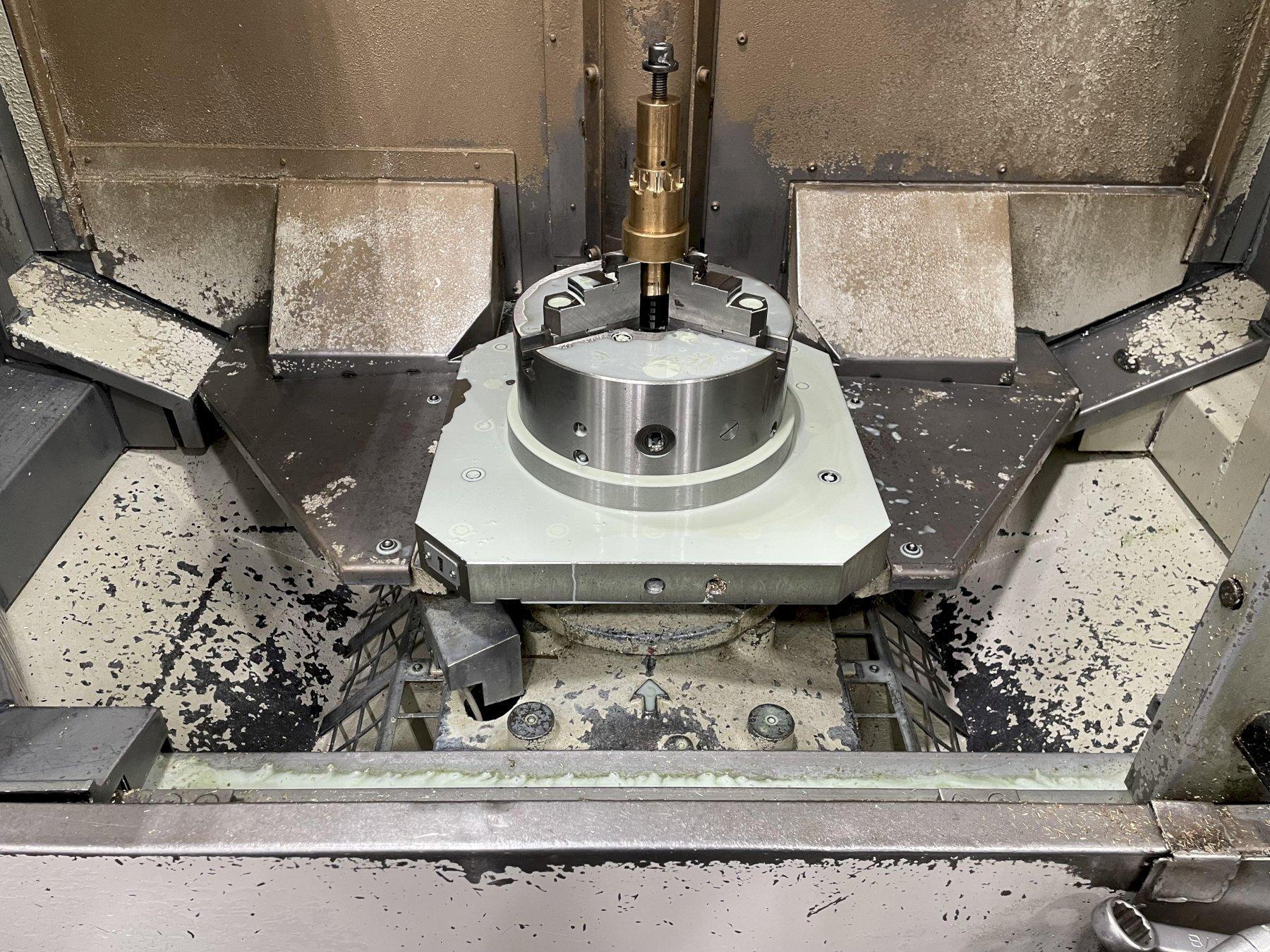

Pallets:
Work area - 15.75" x 15.75"
Indexing angle - 0.001"
Max workpiece dimensions - 23.62" x 27.95"
Max load capacity - 880 lbs.
Pallet change time - 7 secs.
Spindle:
Spindle speed - 50 to 15,000 rpm
Taper bore - No. 40 (CT40)
Feed rate:
Rapid traverse XYZ - 2,362 ipm
Cutting feed rate - 0.04 to 2,363 ipm
Motors:
Spindle (10 min/cont) - 35/25 hp
Feed axis - 6.3 hp
Table indexing - 4.1 hp

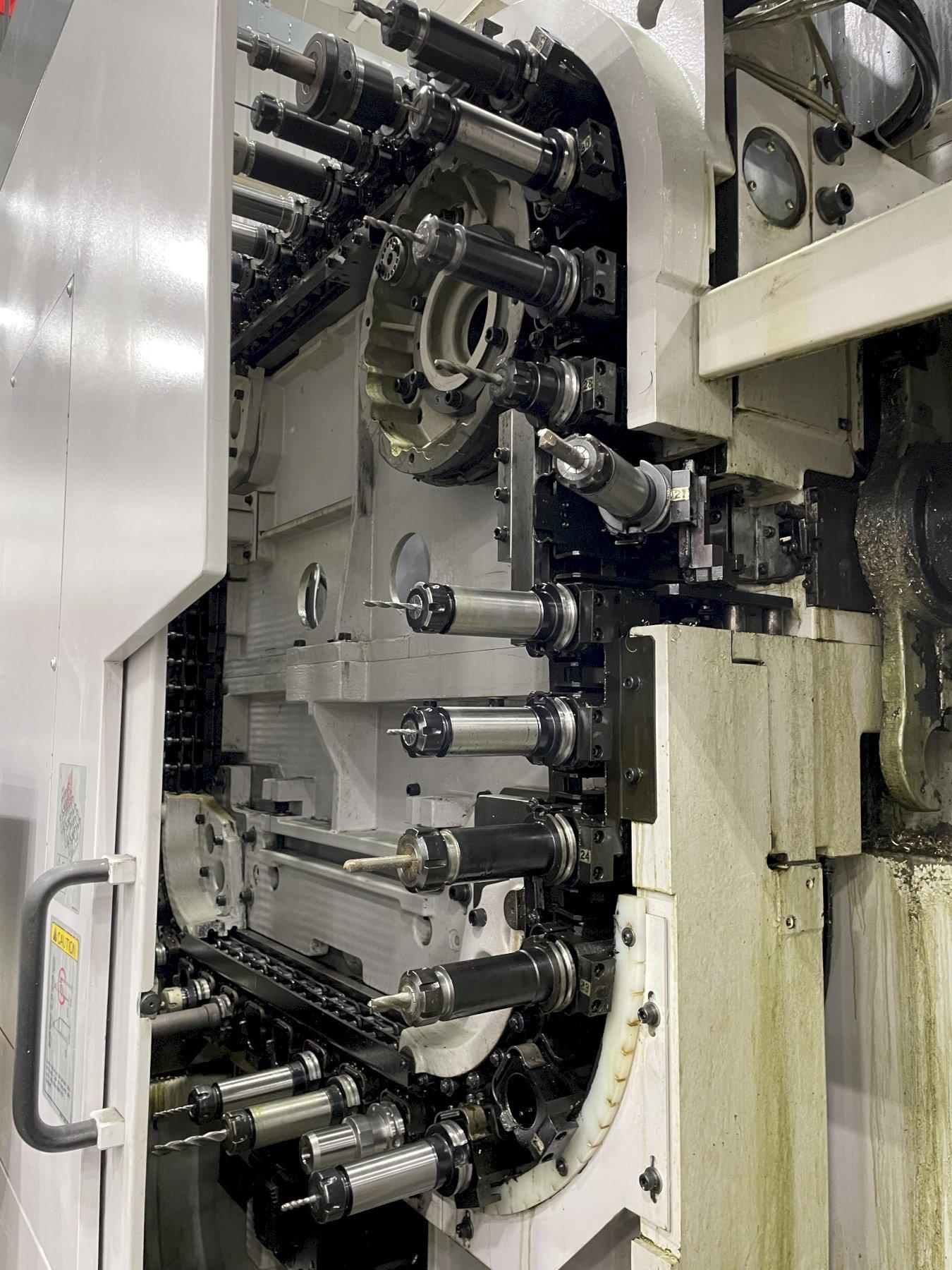

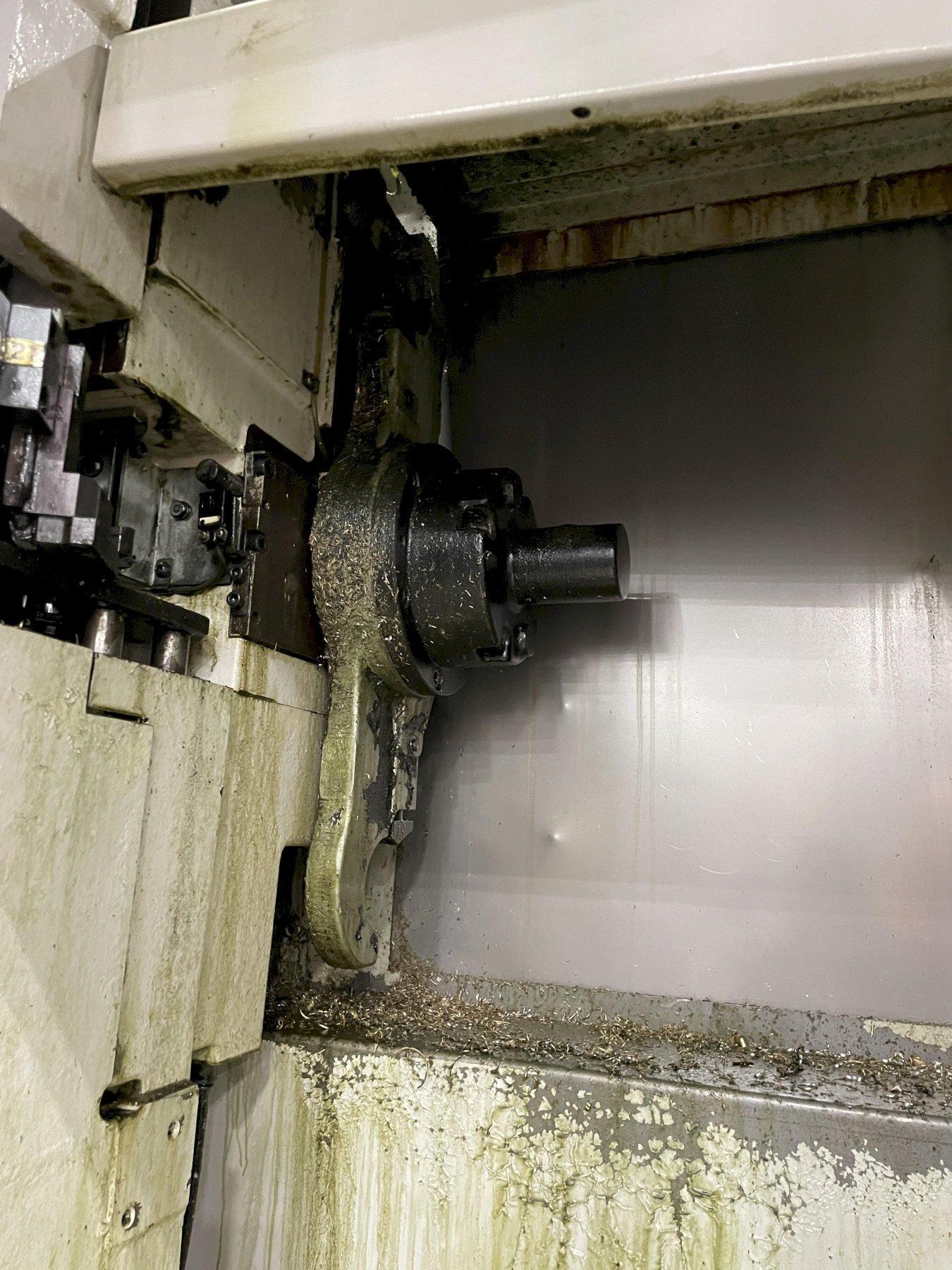

ATC:
Magazine capacity - 30 (subject to confirmation)
Tool change time - 1.3 sec tool to tool
Dimensions:
Height - 108.62"
Floor space, w x d - 95.04" x 178.43"
Weight, approx - 25,080 lbs.
Equipped with:

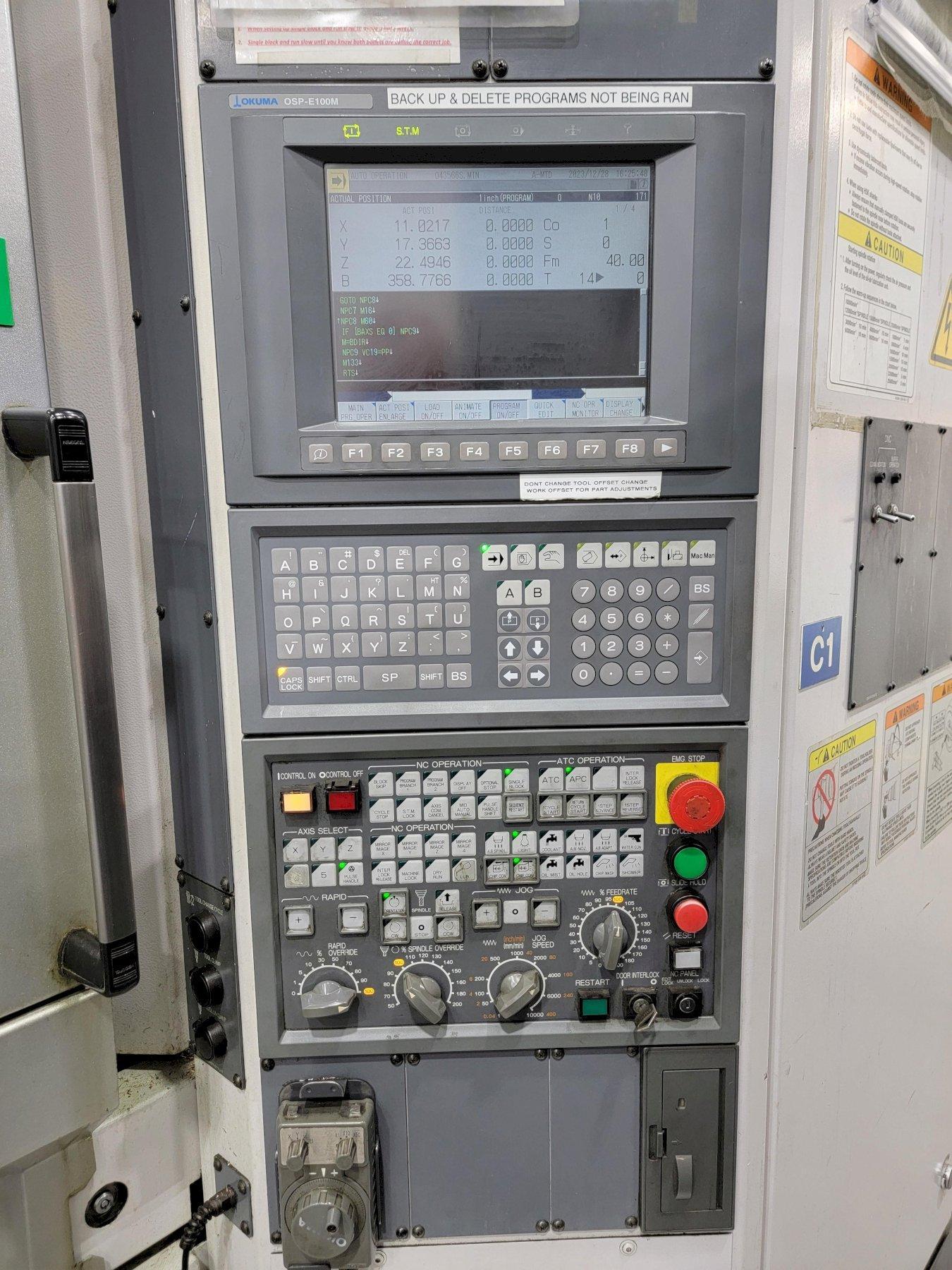

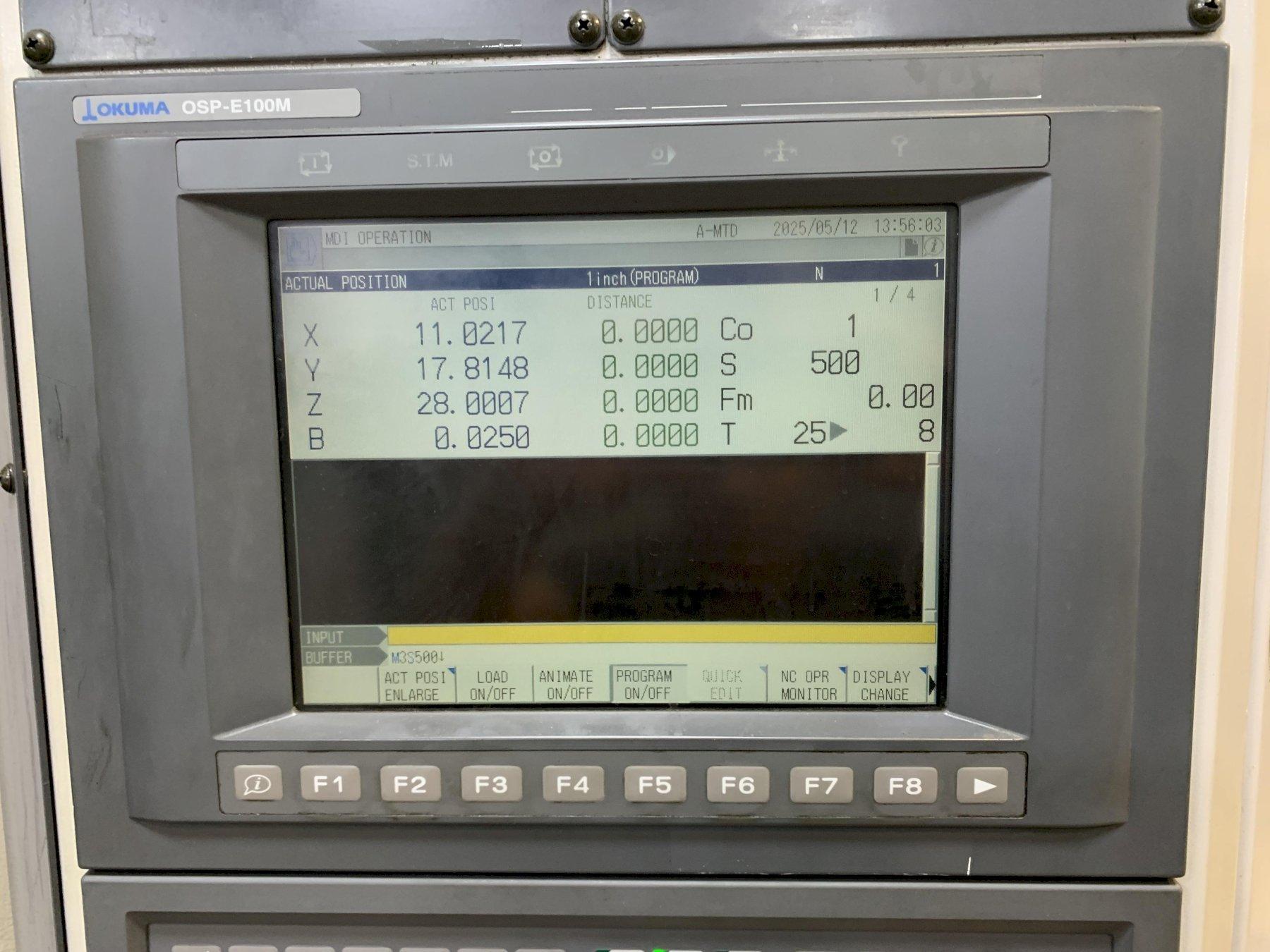

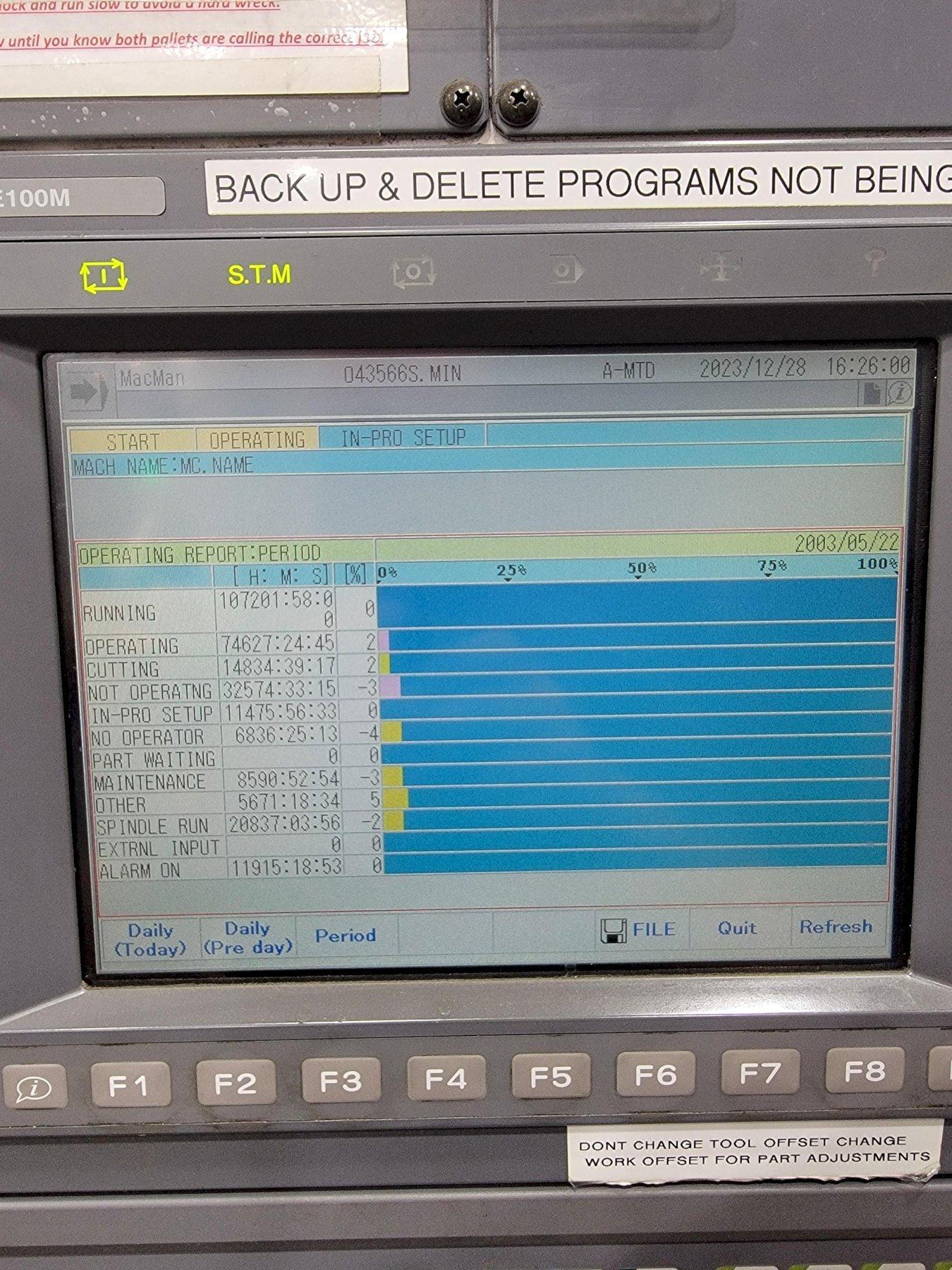

OSP -E100M Control
Full B Axis
15,000 RPM Spindle
Plumbed for HP TSC (no pump)

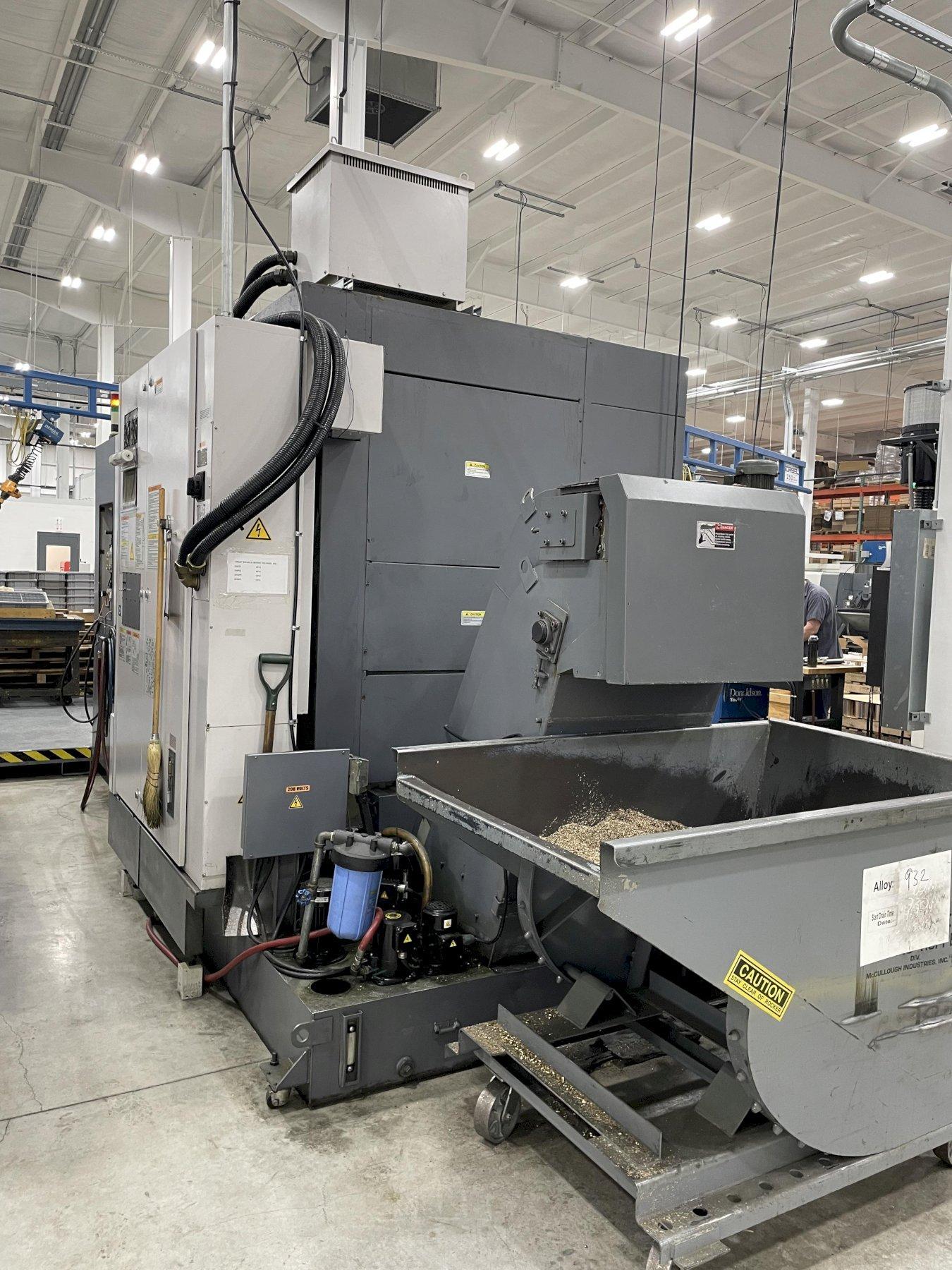

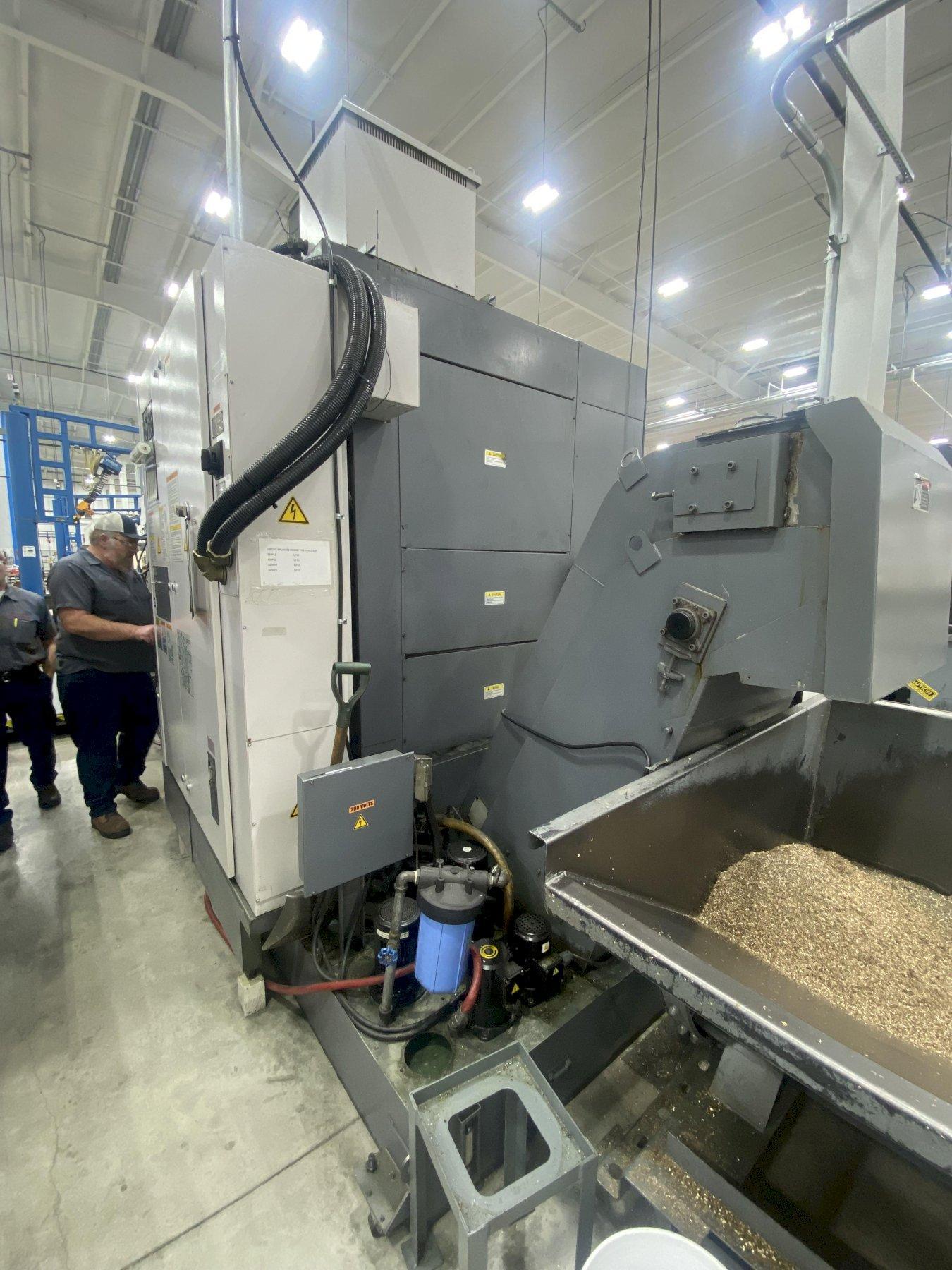

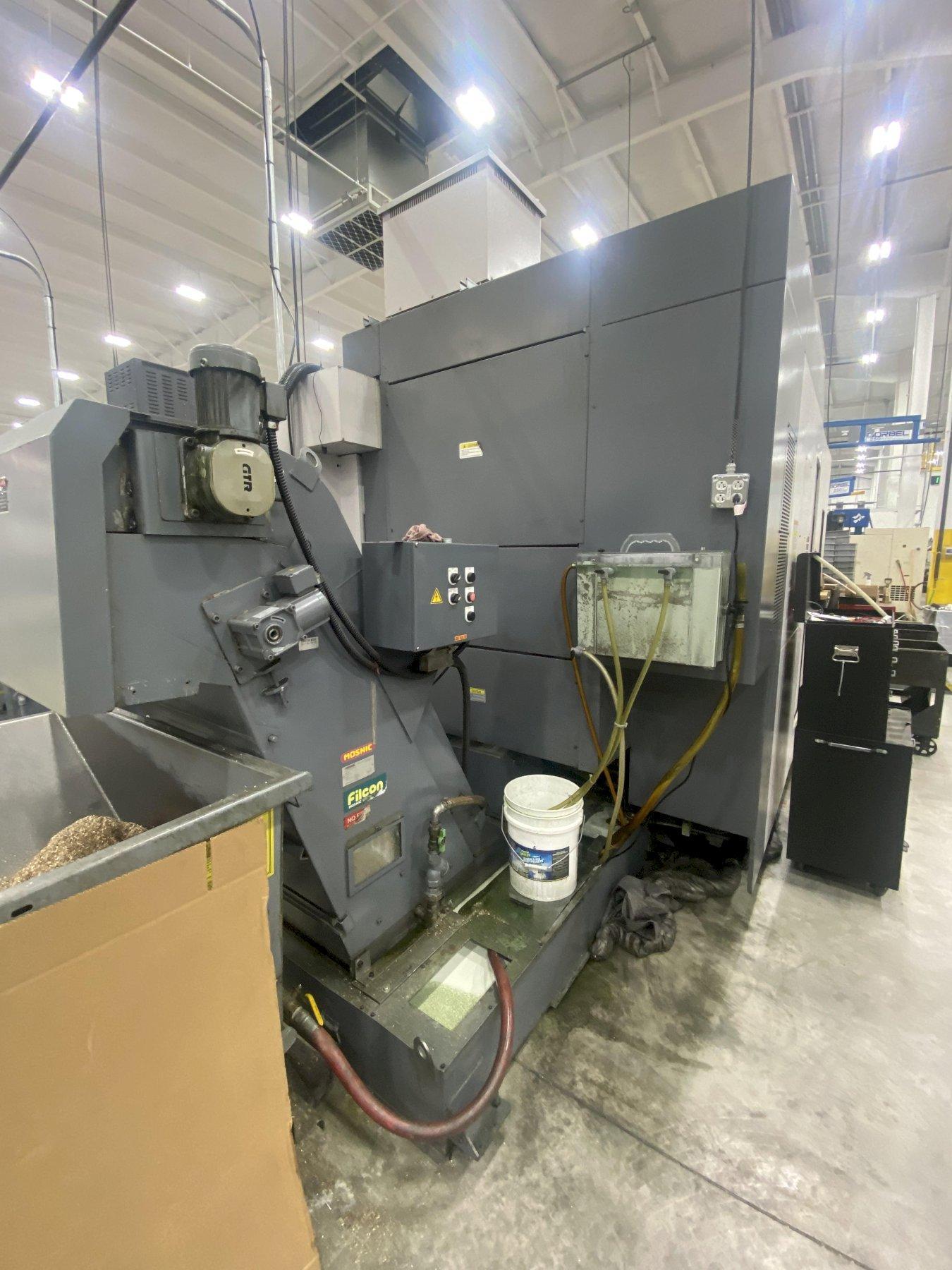

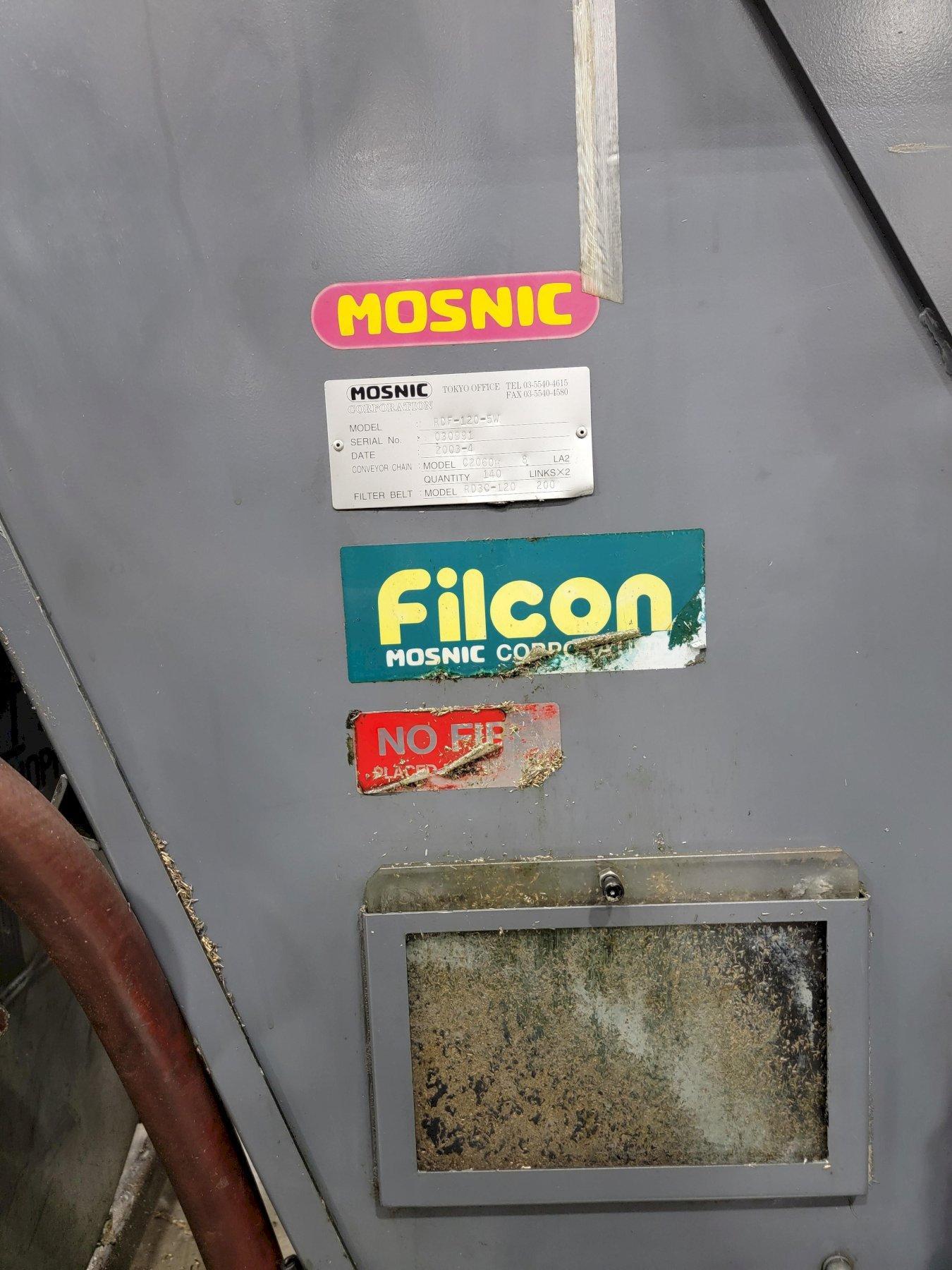

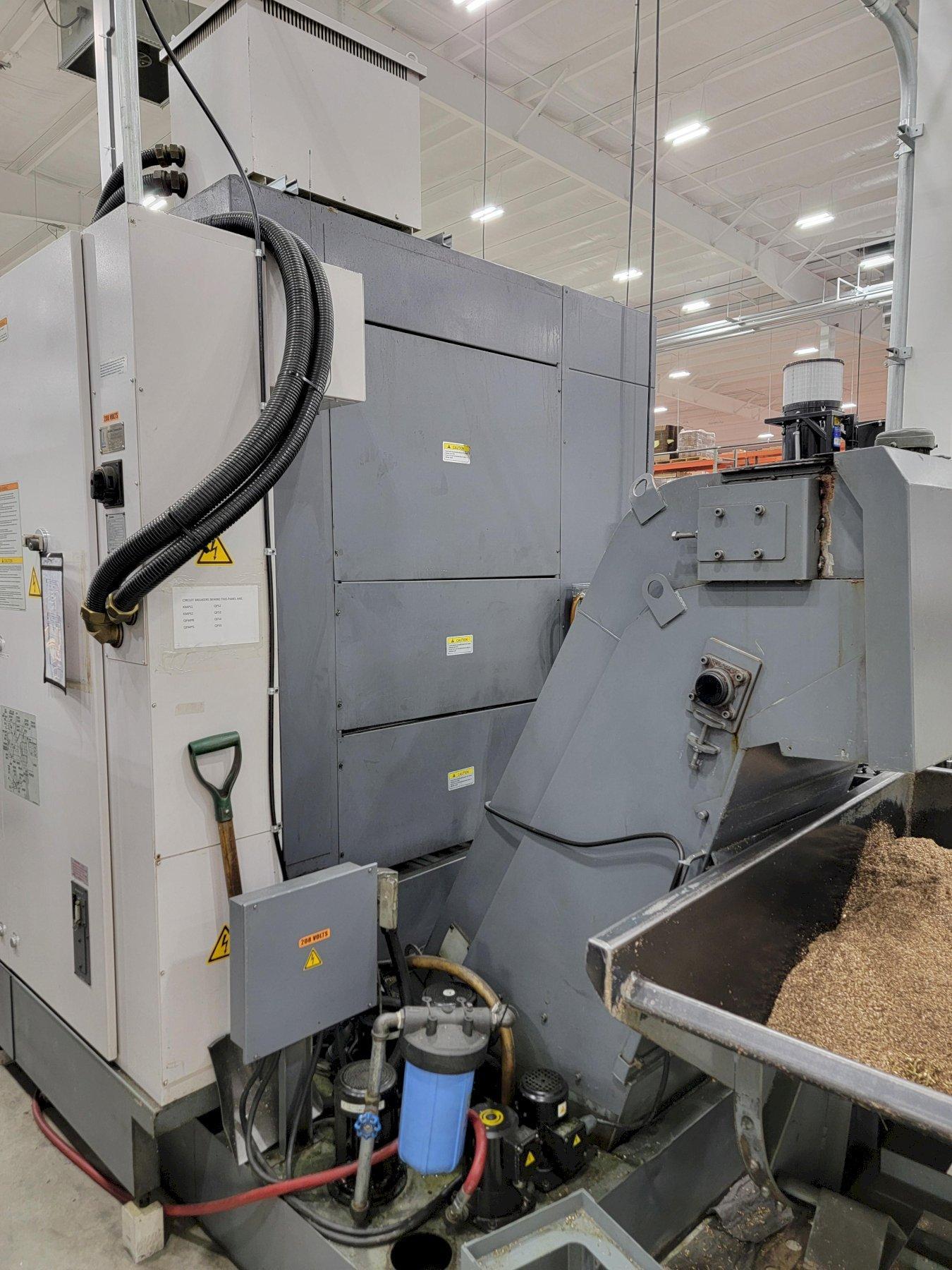

MOSDIC Coolant Filtration Chip Conveyor

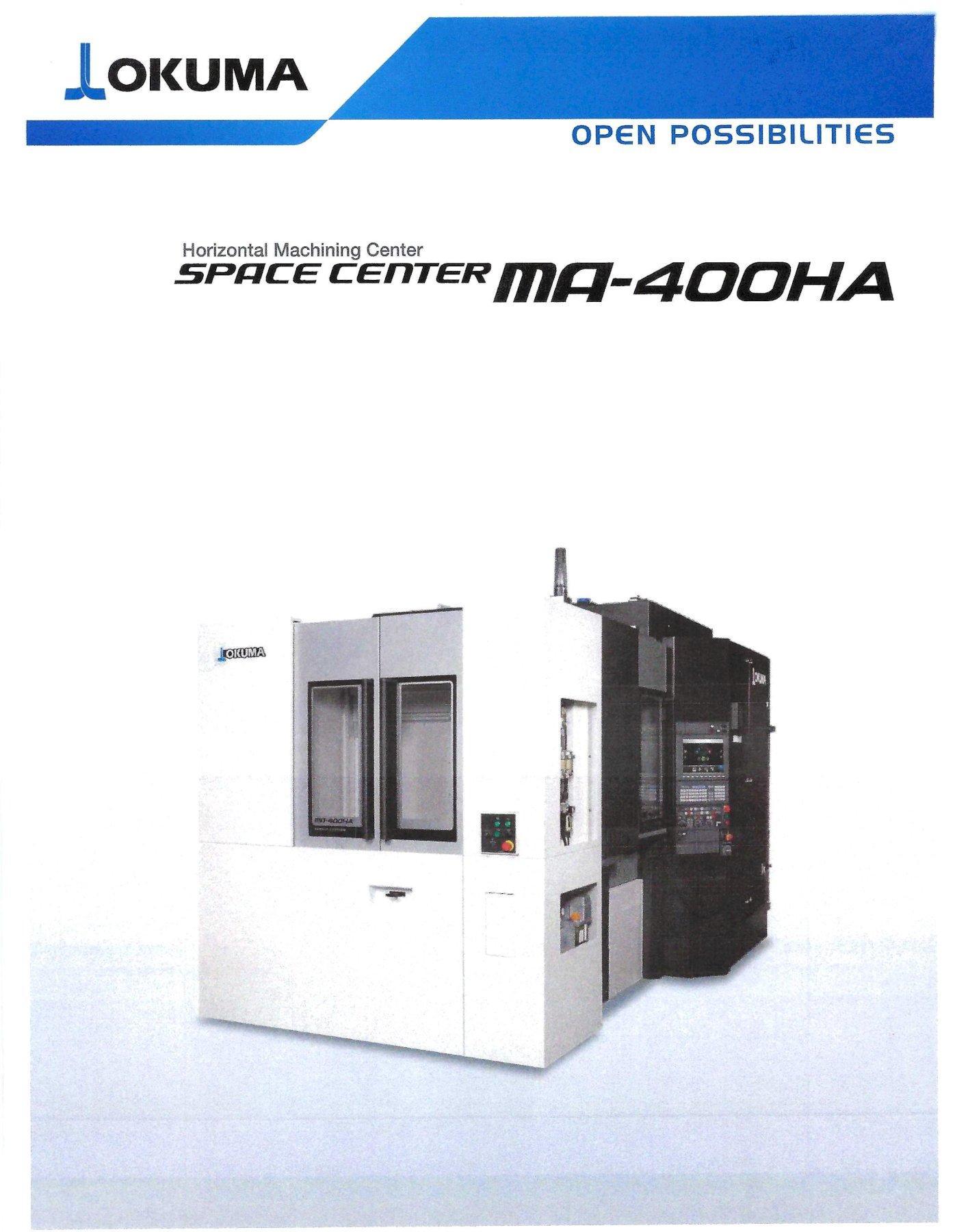

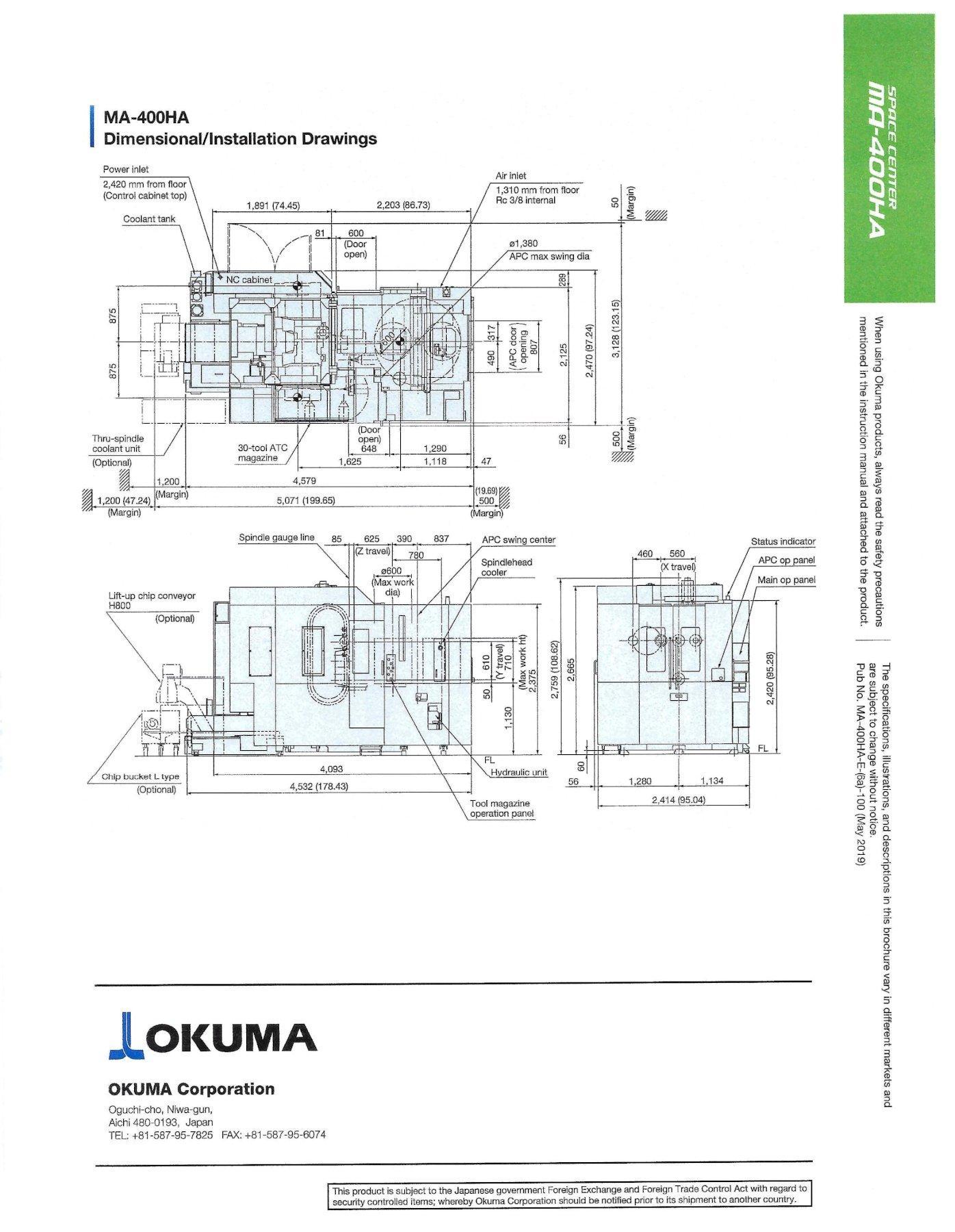

(3) Manuals as shown in pictures
* Machine in good operating condition at time of decommission. Was used to cut brass and well maintained.
* No tooling or fixturing is included. Removed at time of decommission.
* Seller can load by appointment only.
* Specifications subject to independent verification by the buyer.
)
