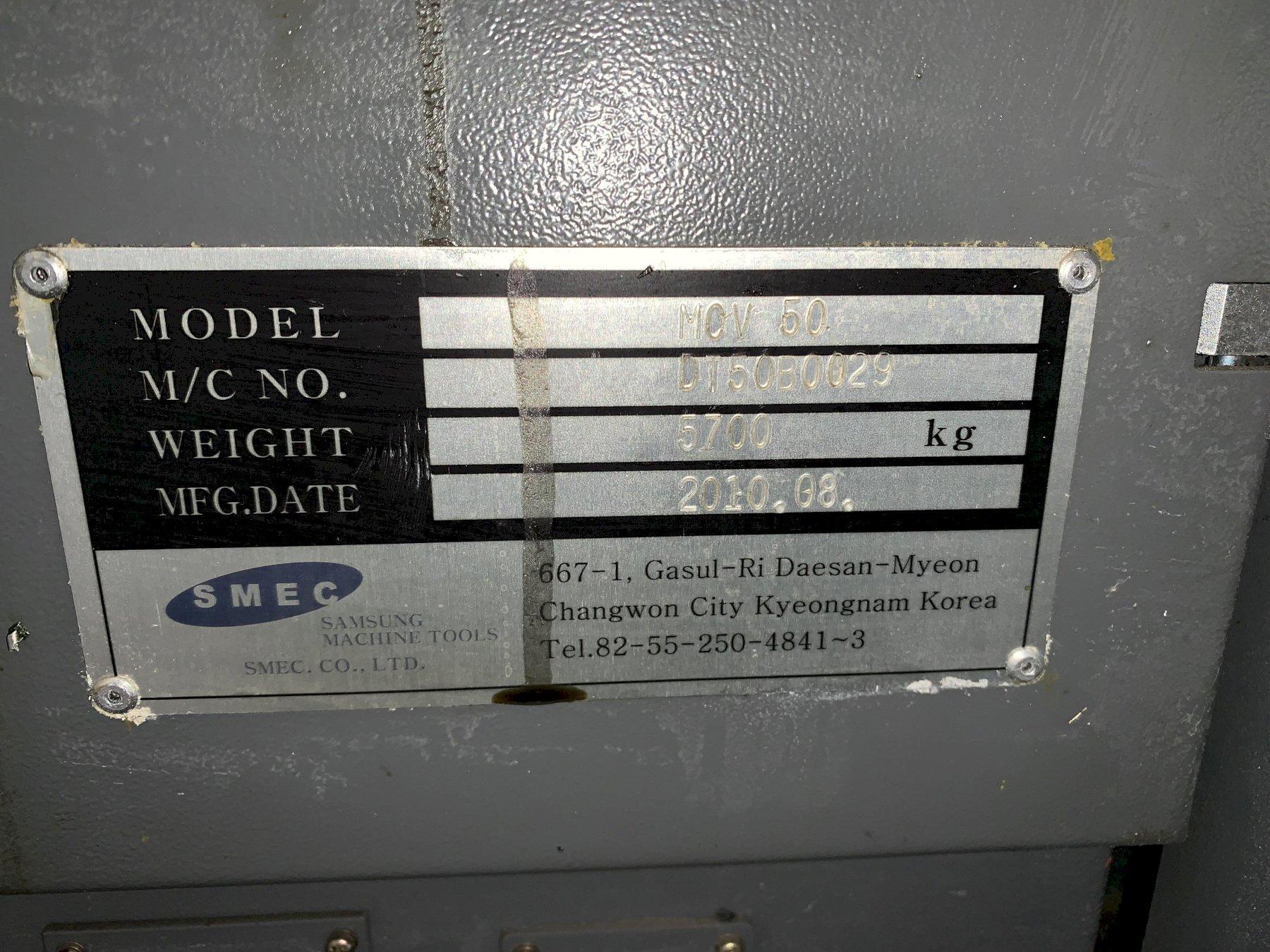

SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
  • SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
  • SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
  • SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
  • SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
  • SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
  • SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
  • SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
  • SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
  • SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.
  • SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.

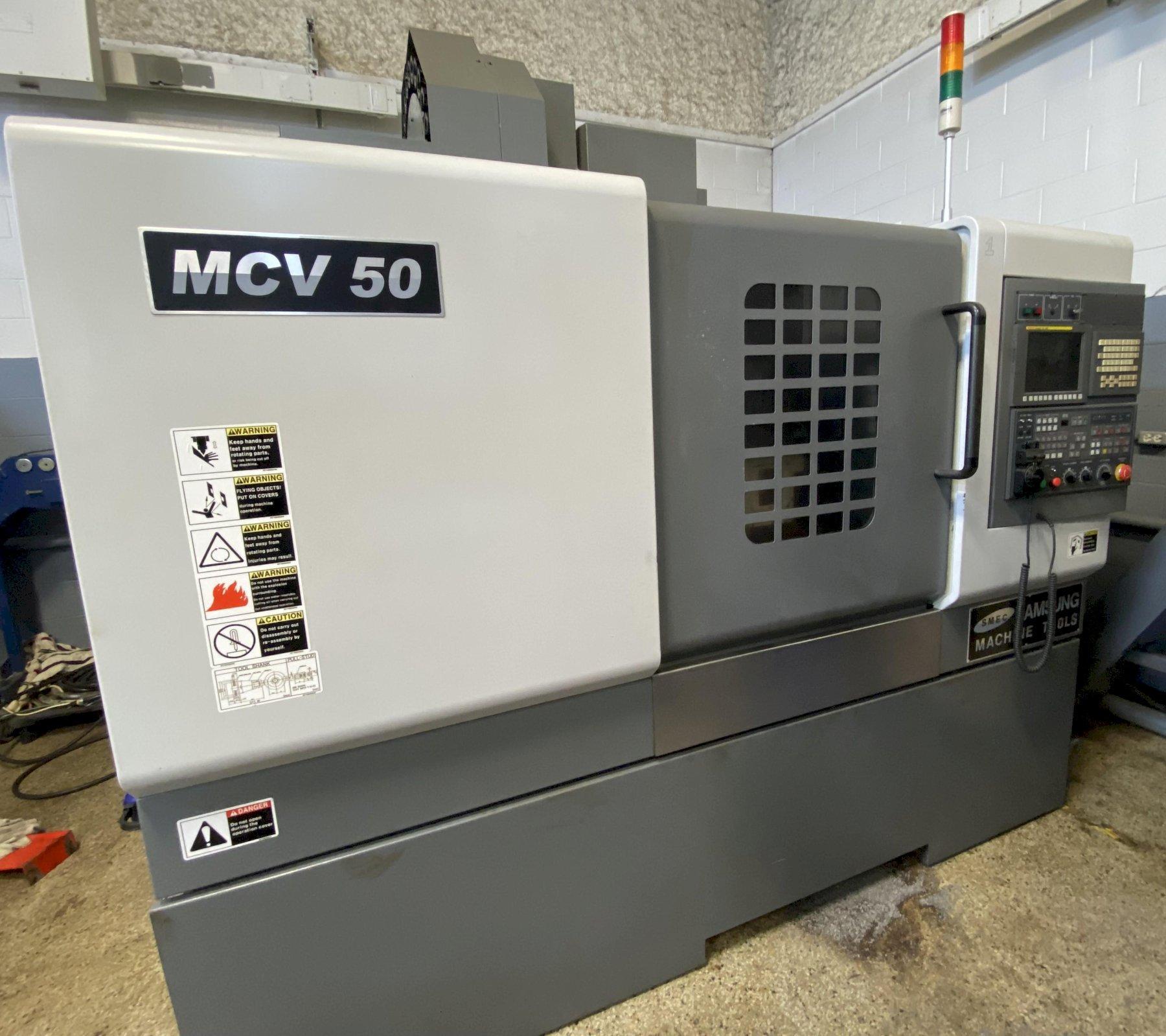

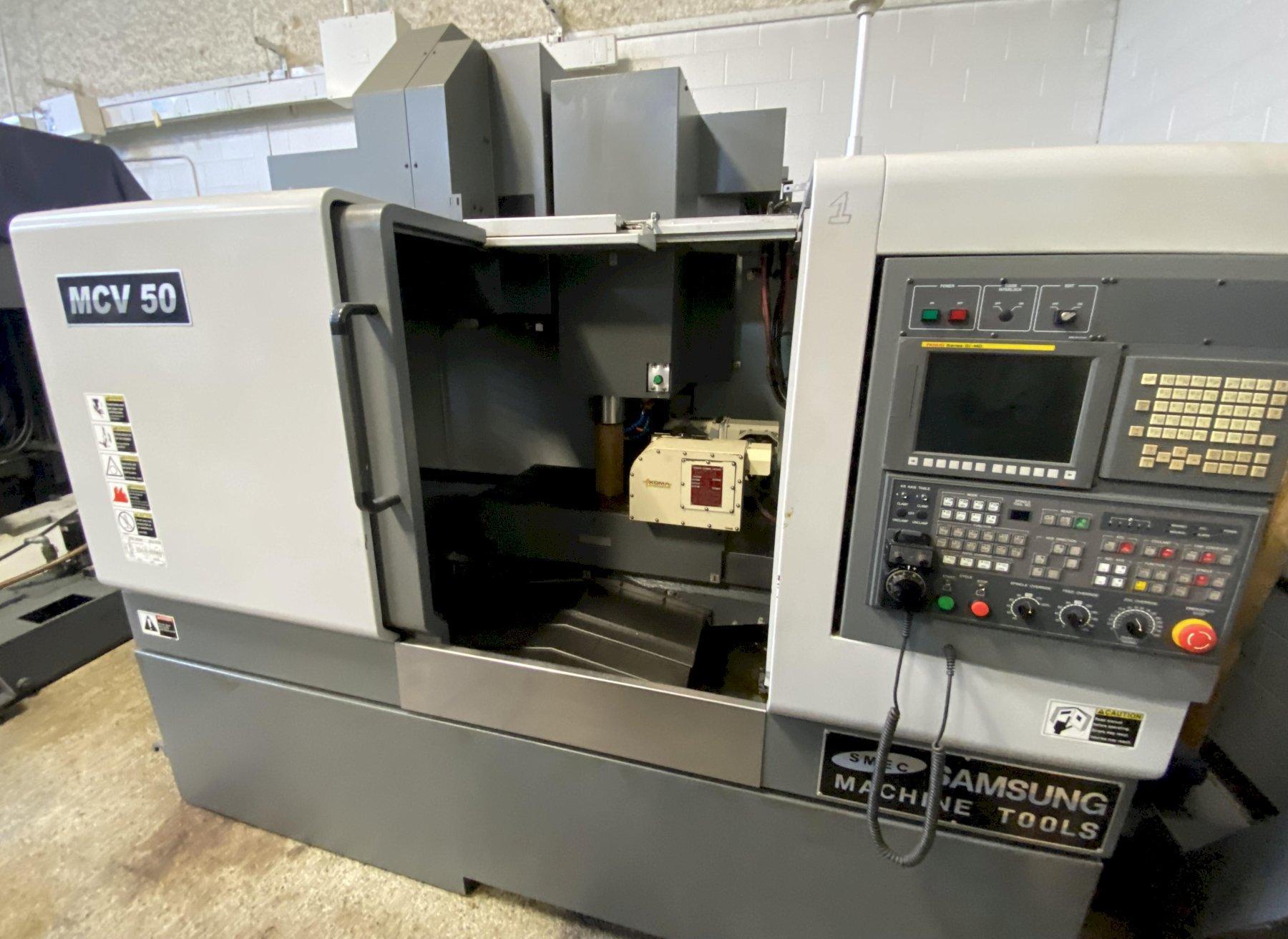

SAMSUNG Model MCV50 5-Axis CNC Vertical Machining Center, S/N DT50B0029, New 2010.

Brand
SAMSUNG

Model
MCV50

Type
Machining Centers, Vertical, (5-Axis or More)

Stock #
34560

Condition
Very Good

Year
2010

Location
Dayton, Ohio
United States

Price
$39,900.00

Request Quote

Specifications

Equipped With

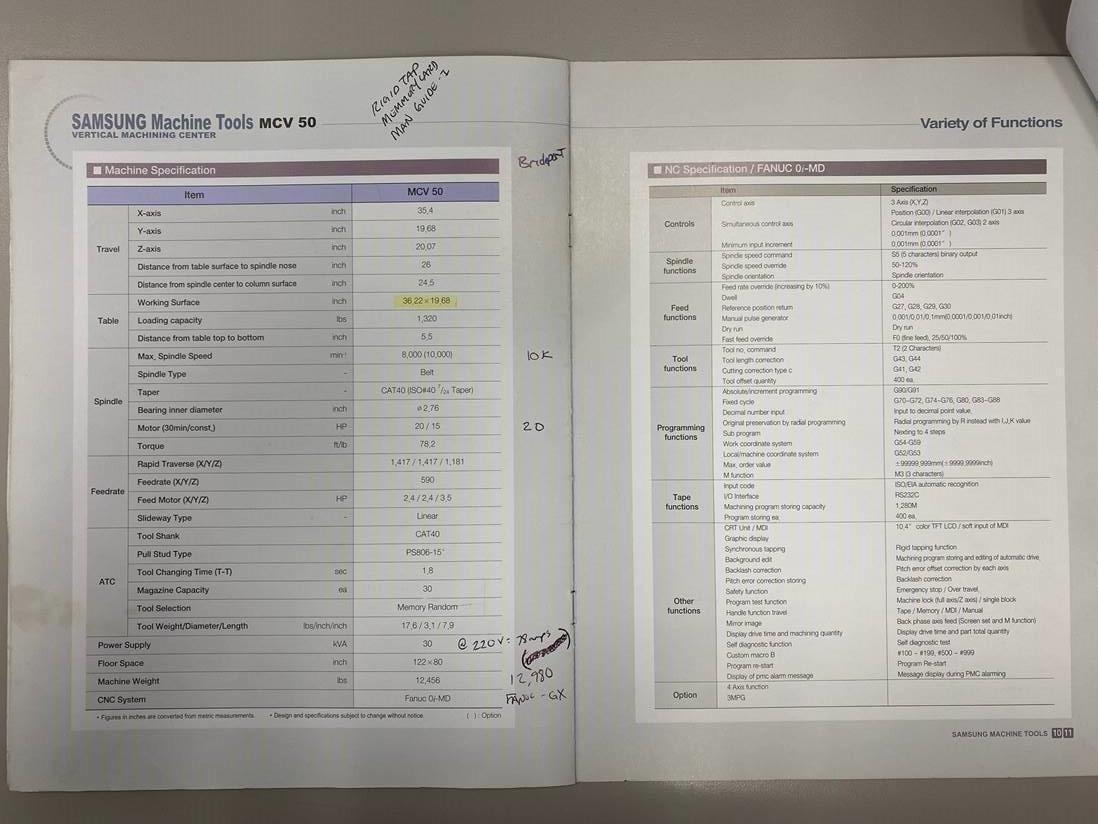

Specifications: (subject to independent verification by the buyer)
X-Axis Travel – 35.4 "
Y-Axis Travel – 19.68"
Z-Axis Travel – 20.07”
Distance from table surface to spindle nose 26”
Distance from spindle center to column 24.5”
Table working surface – 36.22” x 19.68”
Table load capacity – 1320 lbs.
Spindle rpm – 10,000
Spindle taper – CAT40
Spindle motor – 20/15 (30 min / cont.)
Rapid traverse (X/Y/Z) – 1417 / 1417 / 1181 ipm
Feed rate – 590 ipm
Tool change time – 1.8 sec
Magazine capacity – 30
Floor space – 122” x 80”
Machine weight, approx. - 13,000 lbs

Equipped with:

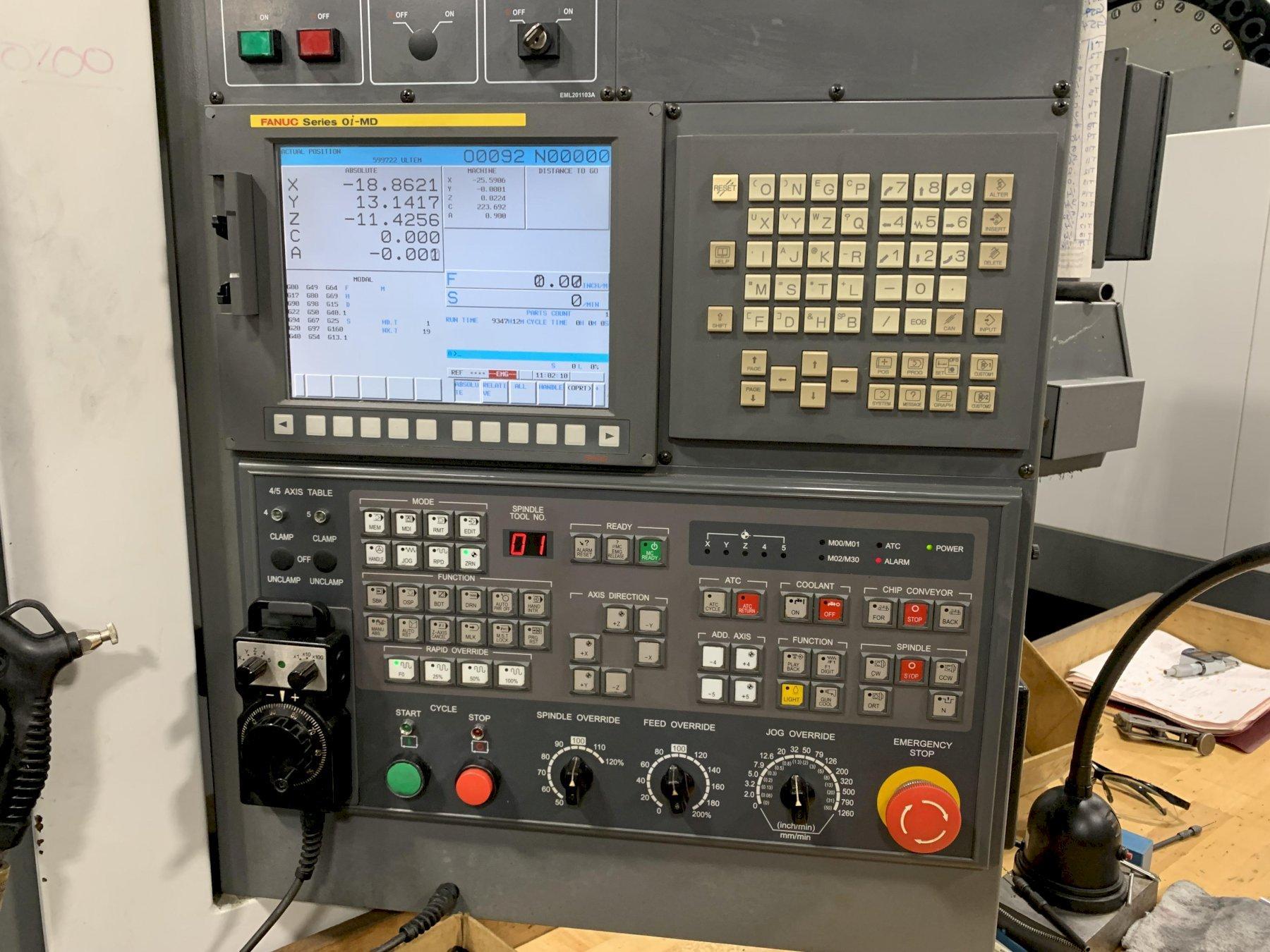

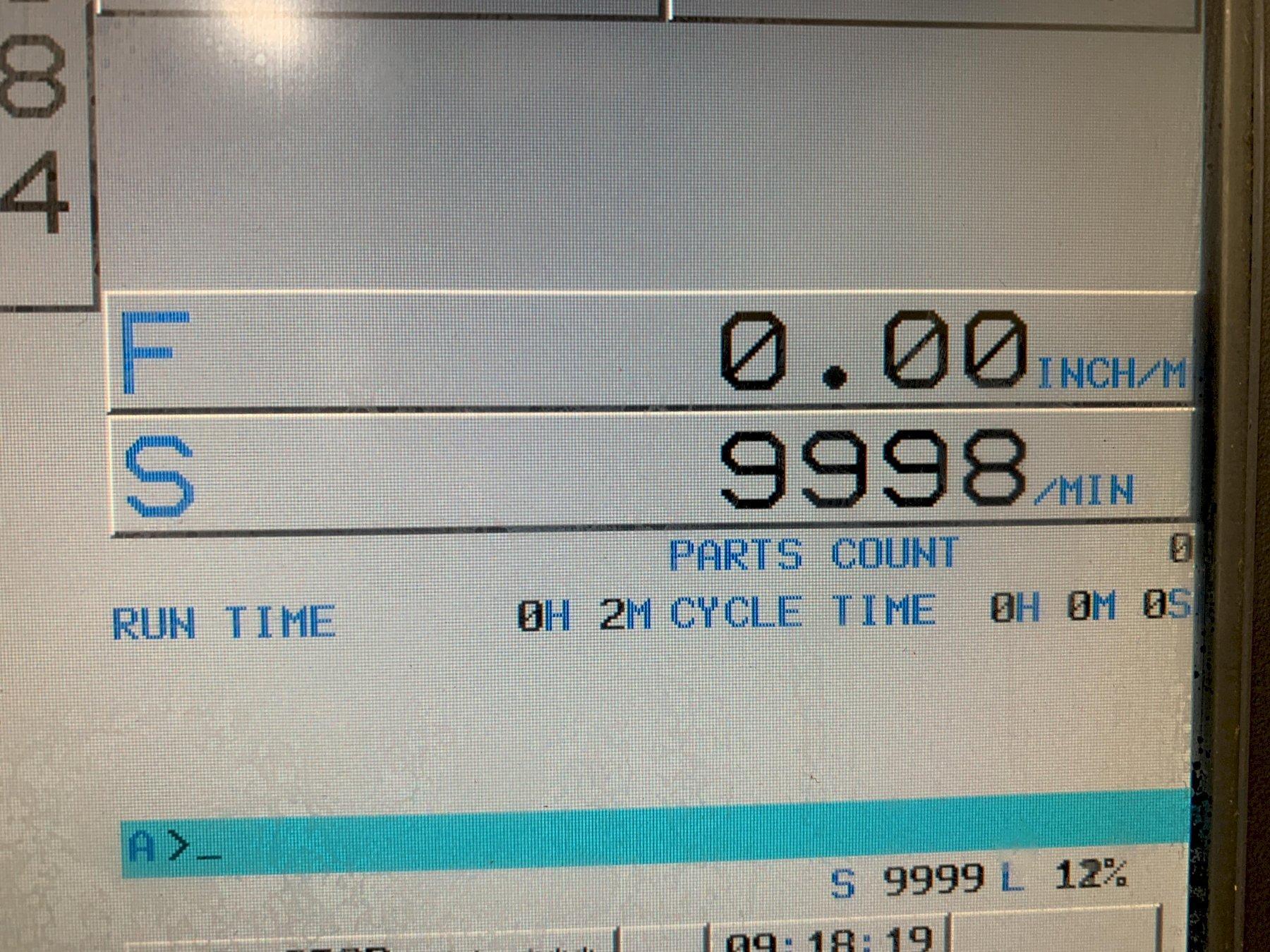

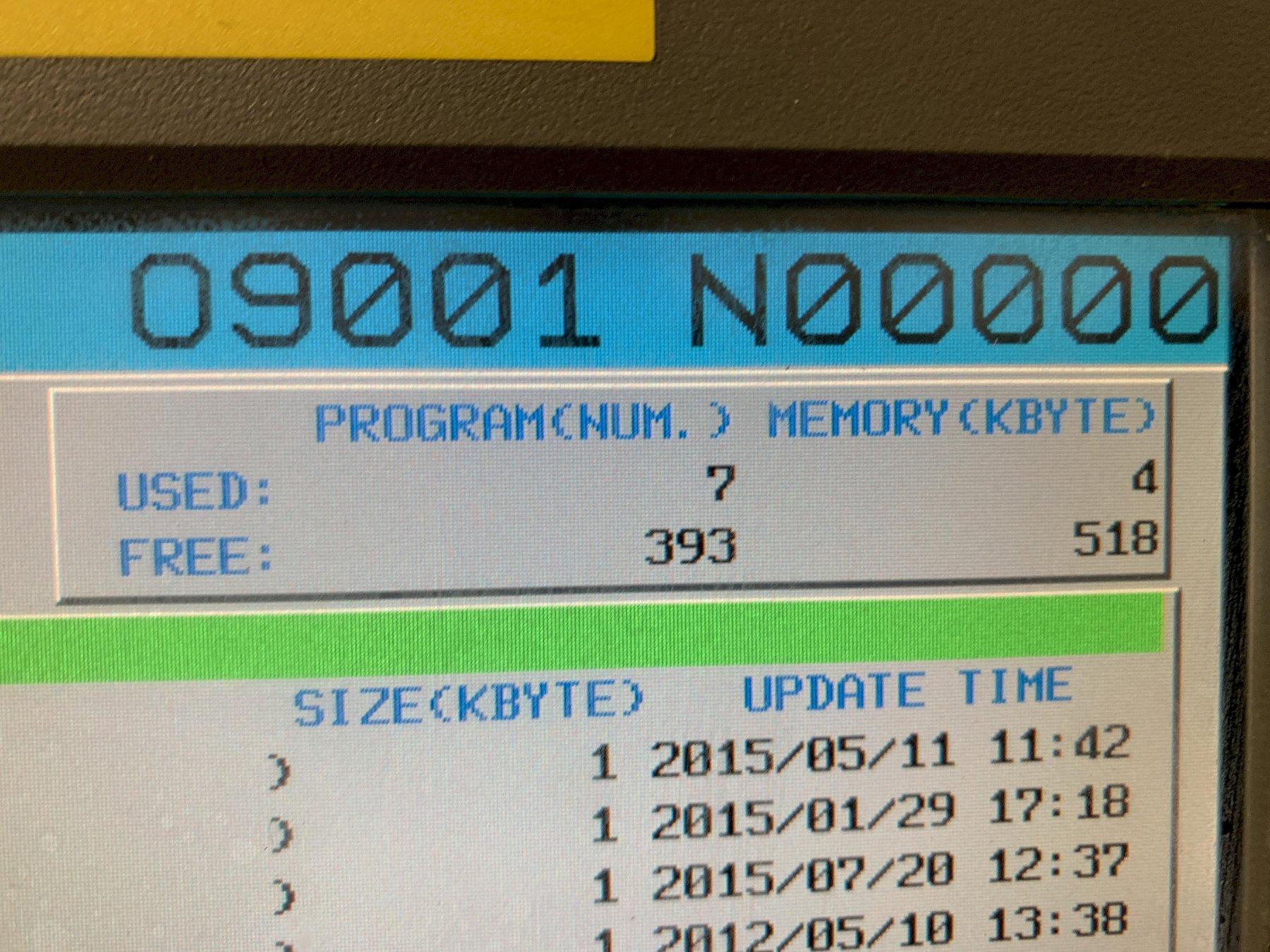

Fanuc Oi-MD Control

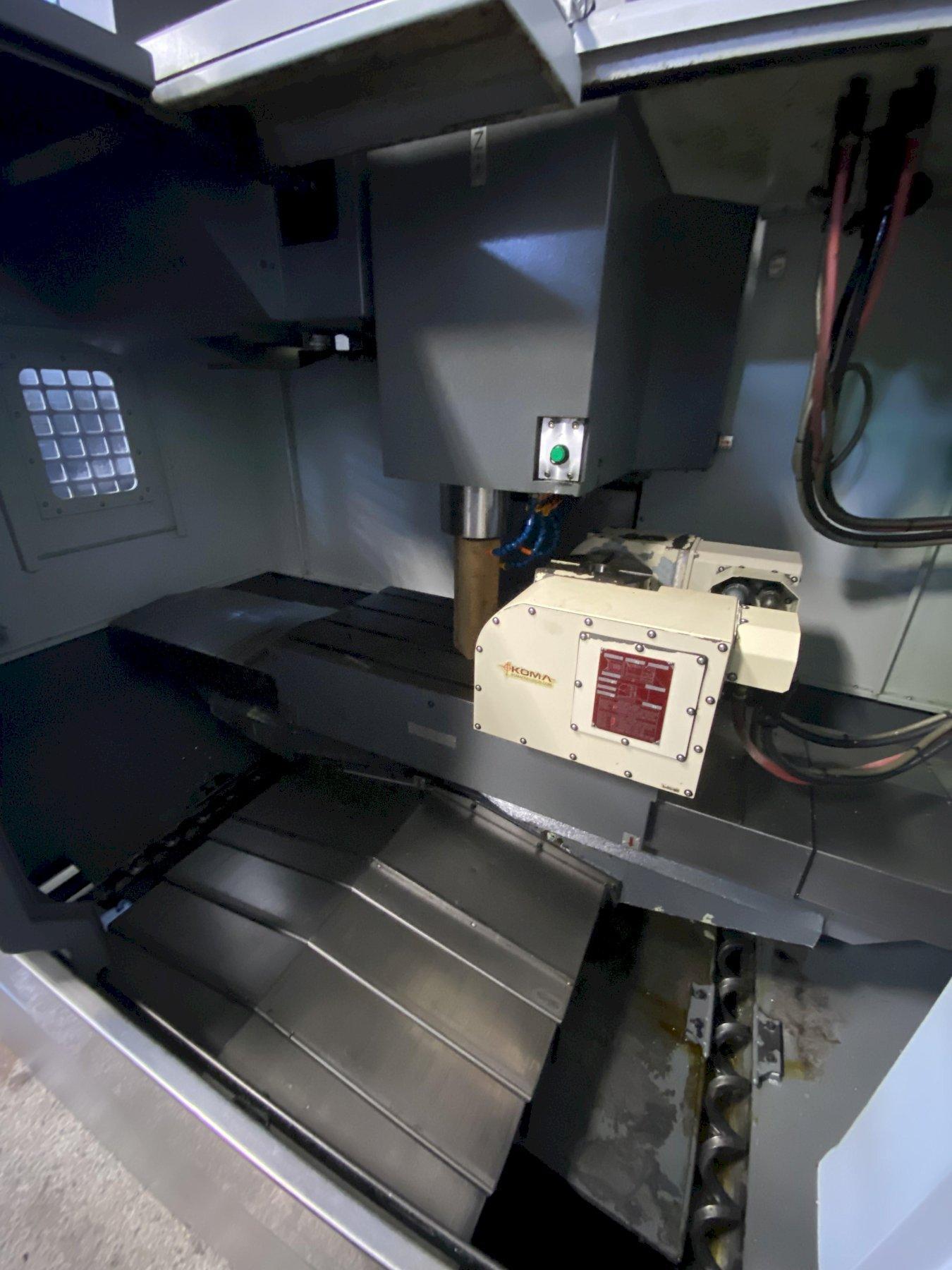

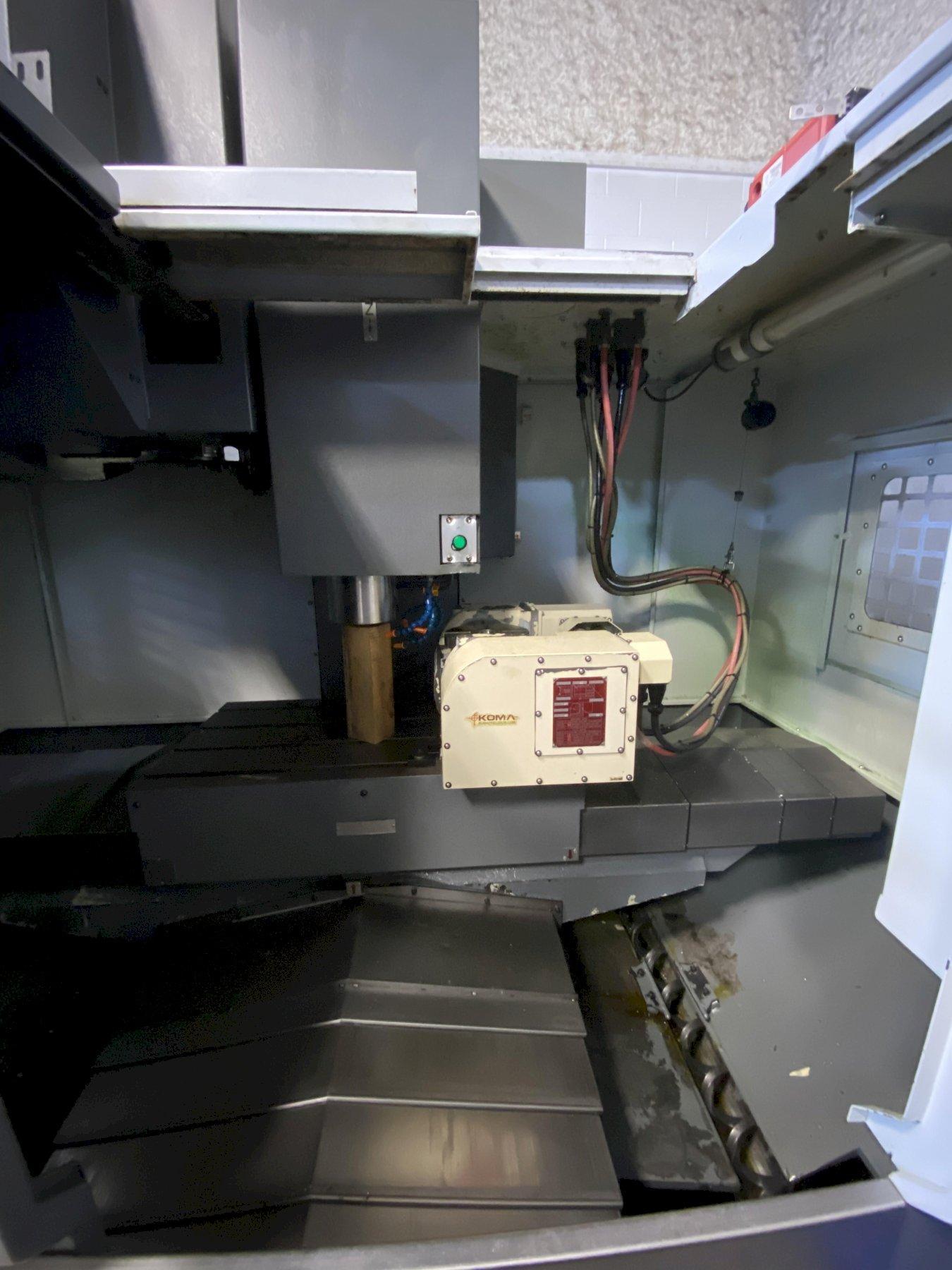

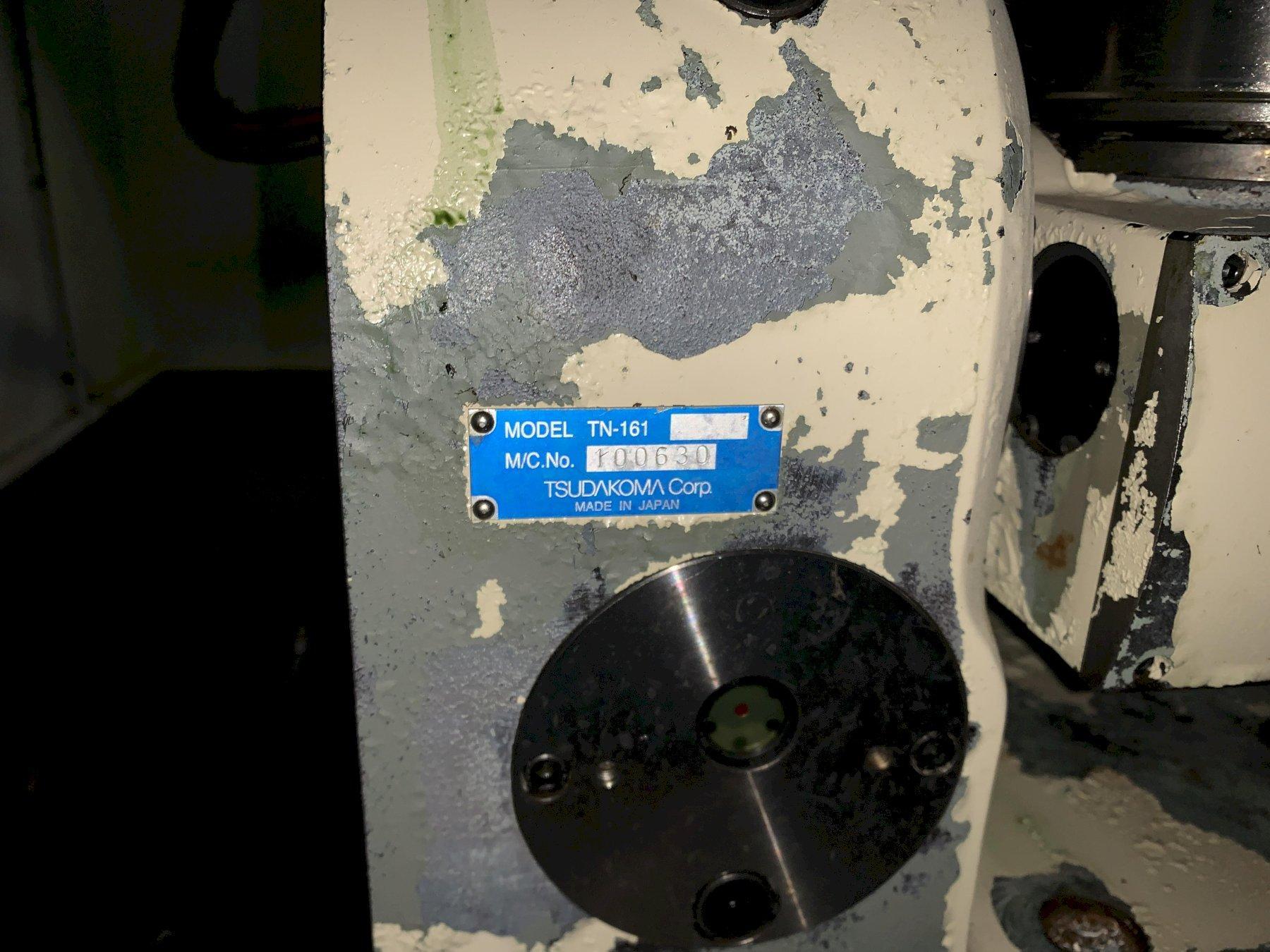

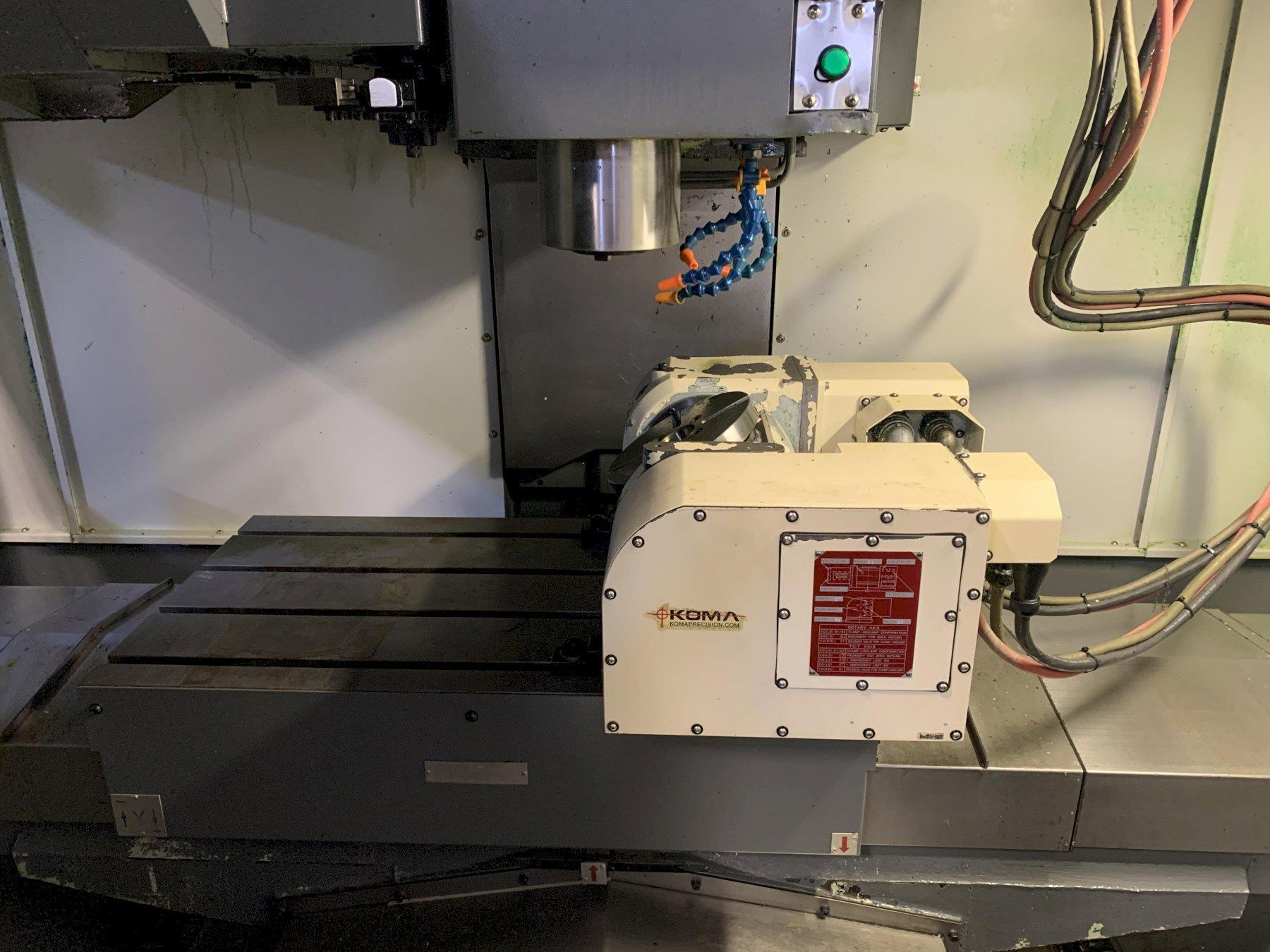

Integrated KOMA 5-Axis Tilting Rotary Table
Thru Spindle Coolant
Chip Auger
Spindle Chiller
Linear Guide Ways
Coolant System
Auto Lube
Full Enclosure
9,589 hours
Vises and tooling pictured is not included
https://youtube.com/shorts/gQ3zfeCfhYg

* All specs and info subject to independent verification by the buyer.
* Air ride flatbed with tarps required for transport. Loading by appointment.
