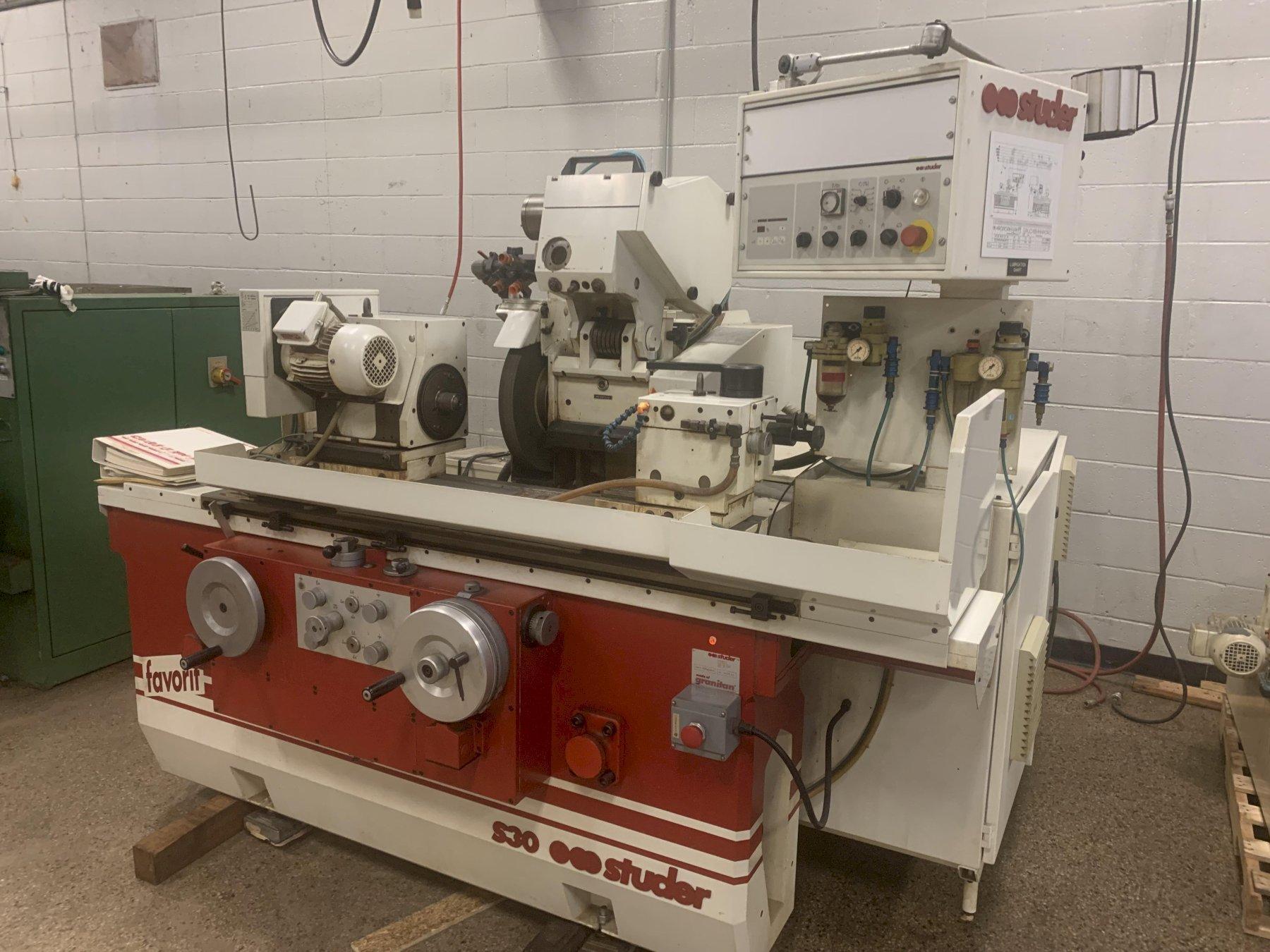

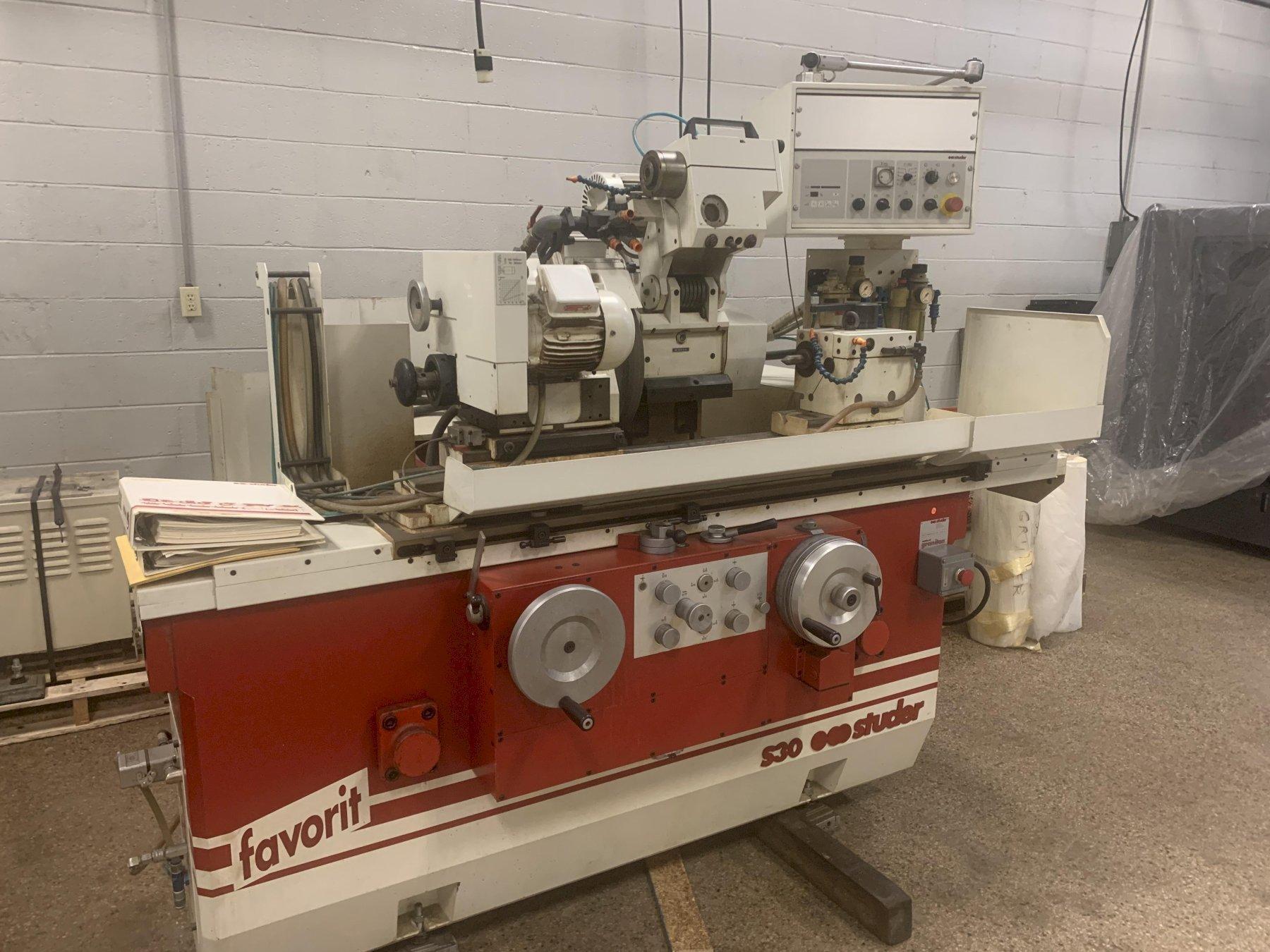

Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
  • Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
  • Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
  • Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
  • Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
  • Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
  • Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
  • Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.
  • Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.

Studer Model S30 Favorit Universal Cylindrical Grinder, S/N 3465-41.

Brand
STUDER

Model
S30 Favorit

Type
Grinders, Cylindrical, Universal

Stock #
34926

Condition
Used

Year
1993

Location
Dayton, Ohio
United States

Price
$59,000.00

Request Quote

Specifications

Equipped With

Factory Specifications:
Center Height - 6.9"
Center Distance - 25.4"
Max Longitudinal Table Travel - 27.6"
Minimum Automatic Longitudinal Travel - .06"
Table Speeds - 2 to 216 ipm
Reversal Dwell - 0-6 s
Maximum Swivel of Table - 10 deg
Wheelhead slide travel - 11.8"
Rapid Approach - 2.4"
Plunge Depth in Dia - .13"
Infeed 1 - .0005 to .236 ipr
Infeed 2 - .0005 to .047 ipr
Incremental infeed - .0004" to .002"
Grinding wheel size (D x W x B) - 16" x 3.15" x 5"
Wheelhead Motor - 7.5 HP
Wheelhead Speeds - 1670/2110 rpm
Workhead Swivel Range - 0 to 90 deg
Workhead Speeds, Stepless - 30 to 1000 rpm
Workead Fitting Taper - Morse 5
Workhead Collets - W-25
Workhead Motor - .75 HP
Max Workpeice Weight Between Centers - 290 lbs.
Live Grinding Load - 74 ft lbs
Tailstock Fitting Taper - Morse 3
Tailstock Travel of Barrel - 1.37"
Tailstock Fine Adjustment - +/- .0016
Machine Dimensions - 88.8" LR x 78.5" FB x 71.6" H
Machine Weight - 6160 lbs.

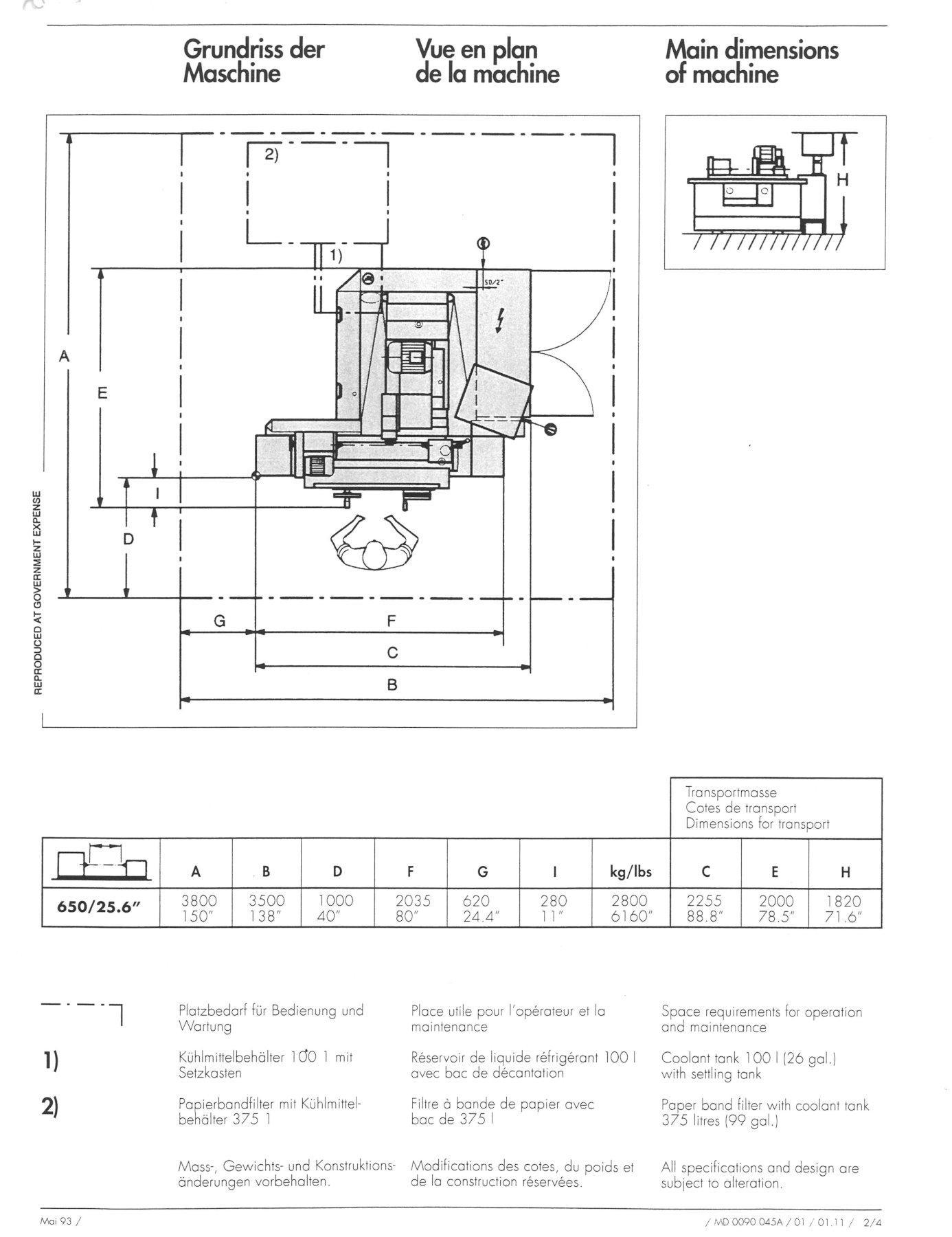

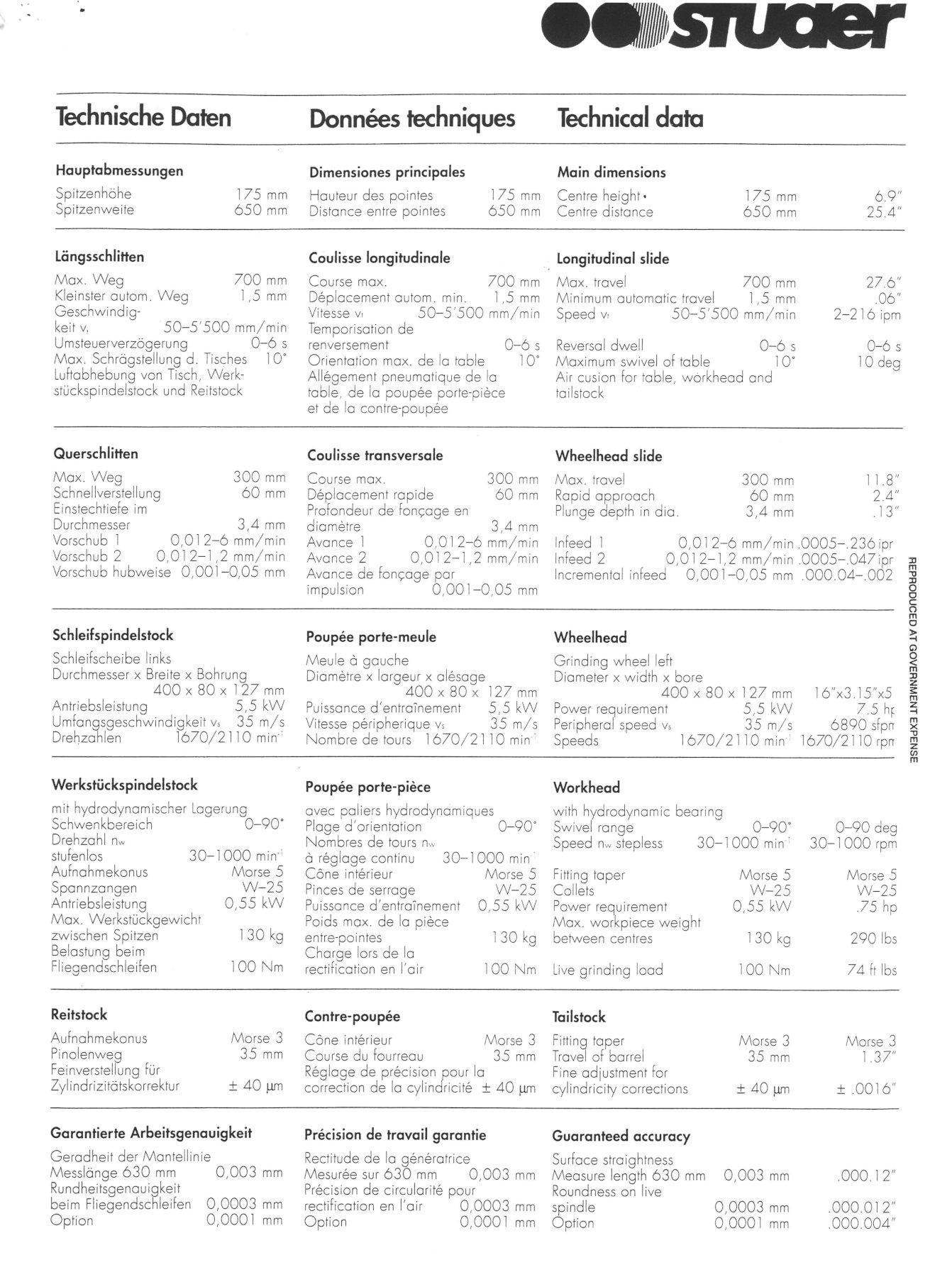

See pictures for factory spec sheets.

Equipped with:
Granitan Vibration Dampening Base
Swing Down Internal Grinding Attachment
Hydraulic Tailstock with Fine Adjustment
Coolant Filtration System with Paper Media Filtration
Manual Collet Drawbar in Workhead
Users Manual / Schematics
Work Light
Leveling Pads
Transformer

Notes:

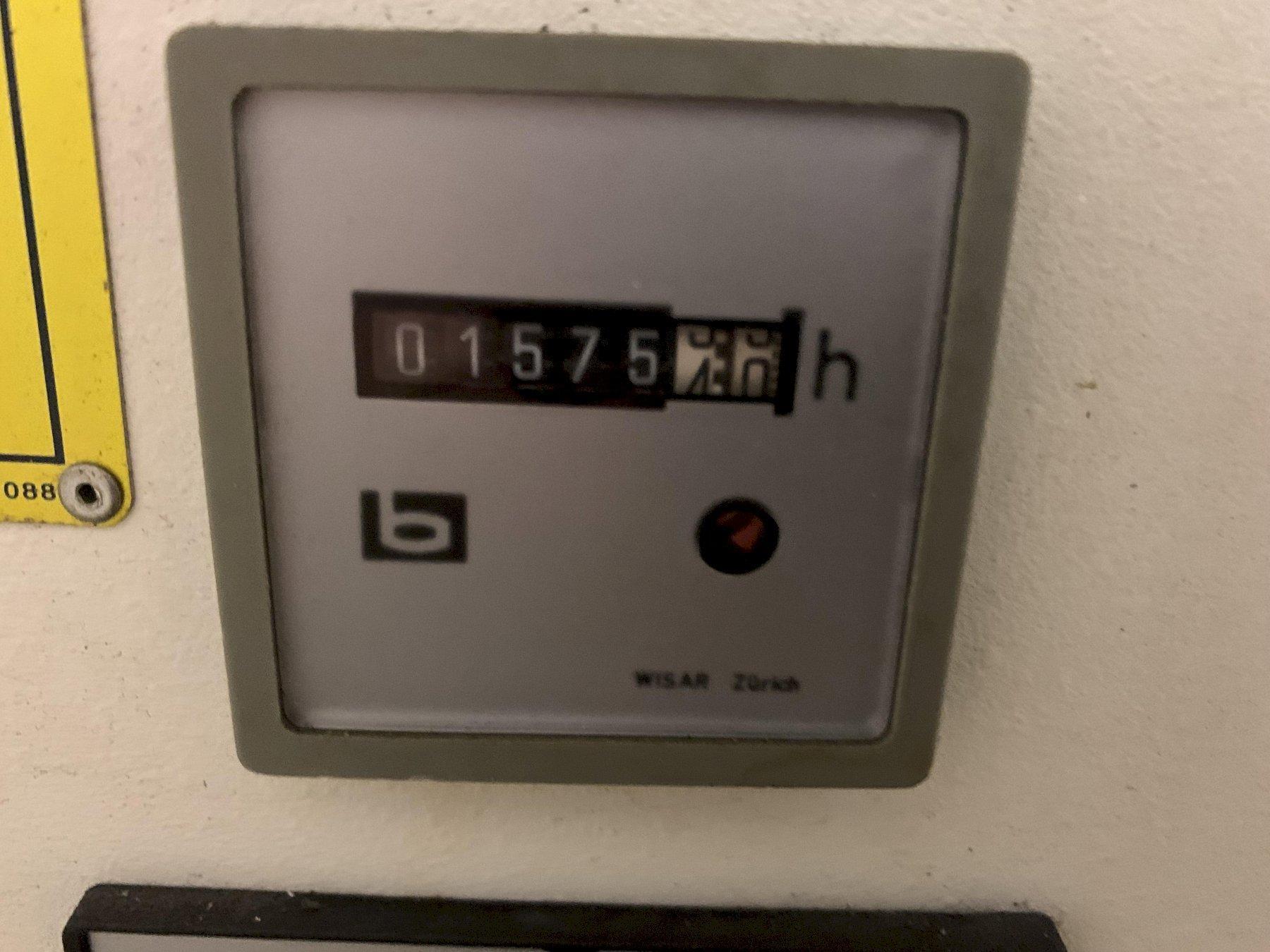

Only 1575 Hours
Specifications subject to independent verification by the buyer.
Excellent condition and appearance as from Fortune 500 Aerospace / Defense Contractor.
