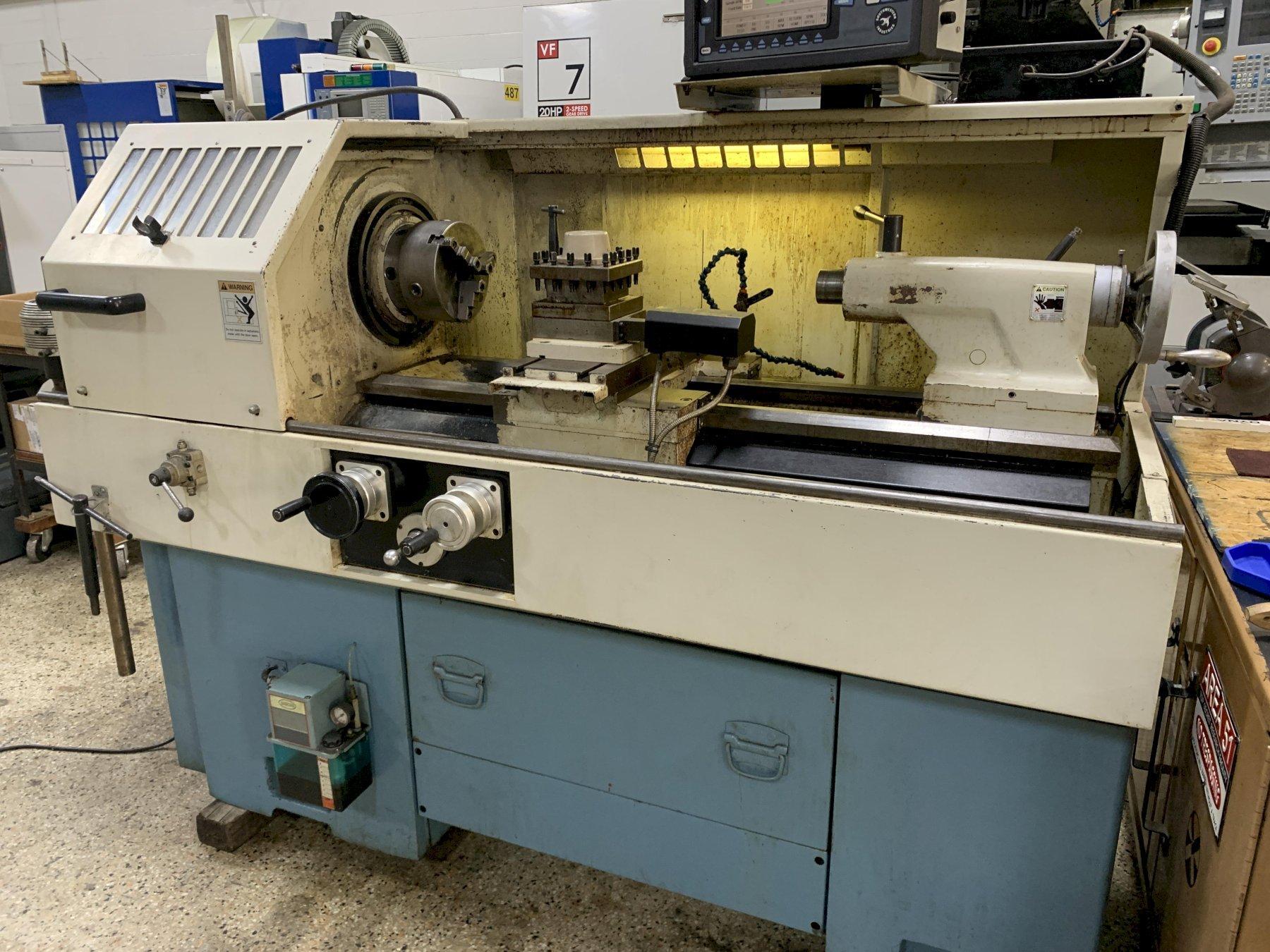

ProtoTRAK 1630SX CNC – Versatile CNC/Manual Lathe with 4-Position Automatic Tool Turret
Key Features

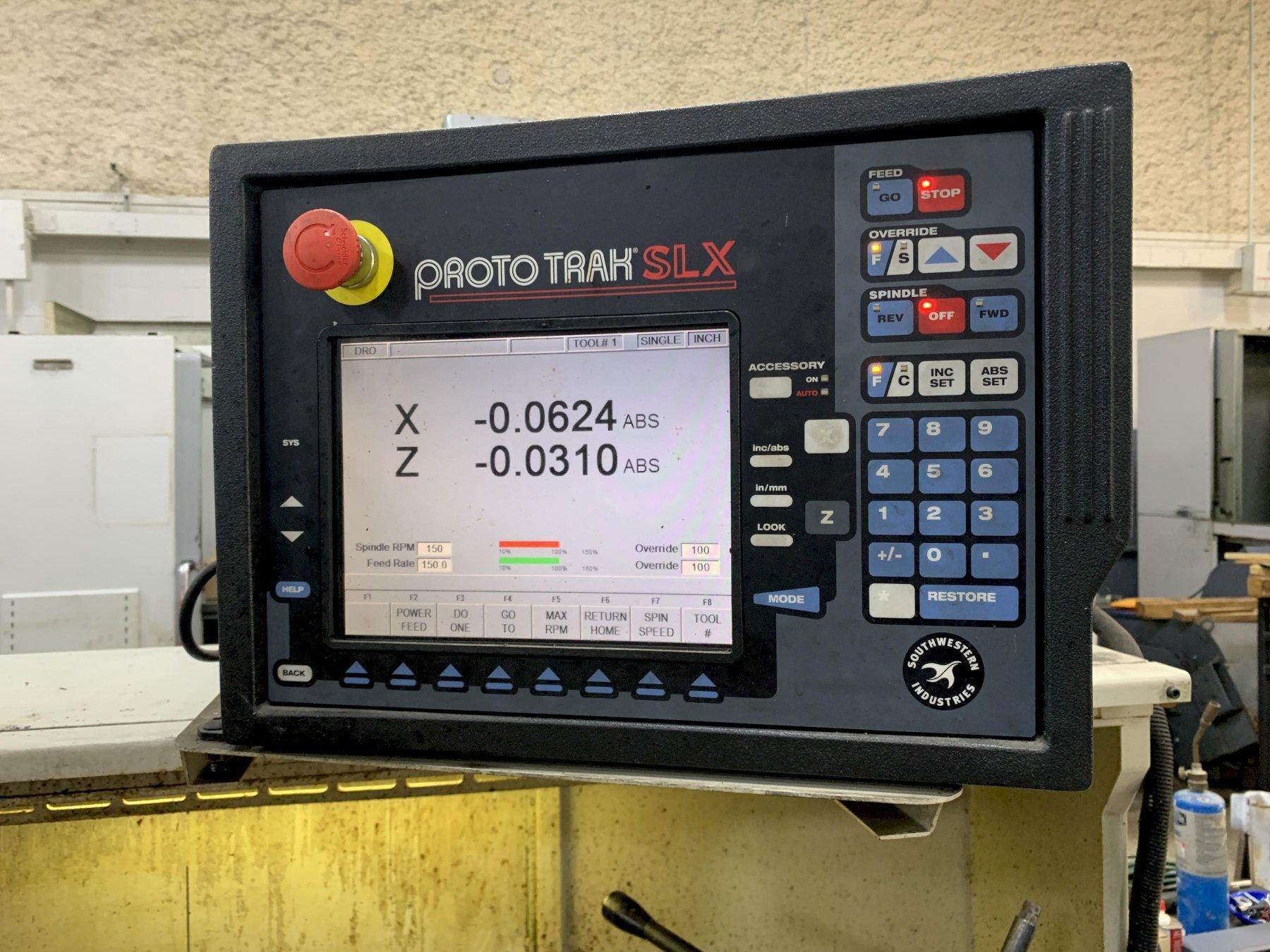

- ProtoTRAK SLX CNC Control – Industry-leading conversational programming; switch seamlessly between CNC and manual (DRO) modes
- 4-Position Automatic Tool Turret – Quick, powered indexing for multi-tool setups; reduces setup time and boosts productivity on complex or repeat jobs
- Hybrid Operation – Full CNC for production runs + manual handwheel/jog for one-offs; TRAKing® allows "wind the handle" feel even in CNC mode
- Constant Surface Speed (CSS) & Programmable Spindle – Maintains optimal cutting speeds automatically (PENDING)
- Enclosed Design – Interlocked sliding door for chip/coolant containment and safety
- Rugged Build – Hardened and ground ways; precision-ground ballscrews for accuracy and longevity
Machine Specifications
|
Category
|
Specification
|
|
Swing Over Bed
|
16"
|
|
Swing Over Cross Slide
|
8.6
|
|
Distance Between Centers
|
30"
|
|
Spindle Bore / Through Hole
|
2.12"
|
|
Spindle Nose
|
D1-6 Camlock
|
|
Spindle Speeds, Programmble
|
150–2,500 RPM (variable, single range)
|
|
Spindle Motor
|
7.5 HP
|
|
Tooling
|
4-Position Automatic Tool Turret (electric indexing)
|
|
Rapid Traverse (X/Z)
|
X: 100 IPM / Z: 150 IPM (approx.)
|
|
Tailstock
|
MT#4 quill, ≈5–6" travel
|
|
Approximate Weight
|
3,000 Lbs.
|
|
Floor Space (approx.)
|
82" L × 46" W × 72" H
|
|
Power Requirements
|
220V / 3-Phase / 25A full load (typical)
|
Standard / Typical Equipment (may vary by specific unit/year/configuration)

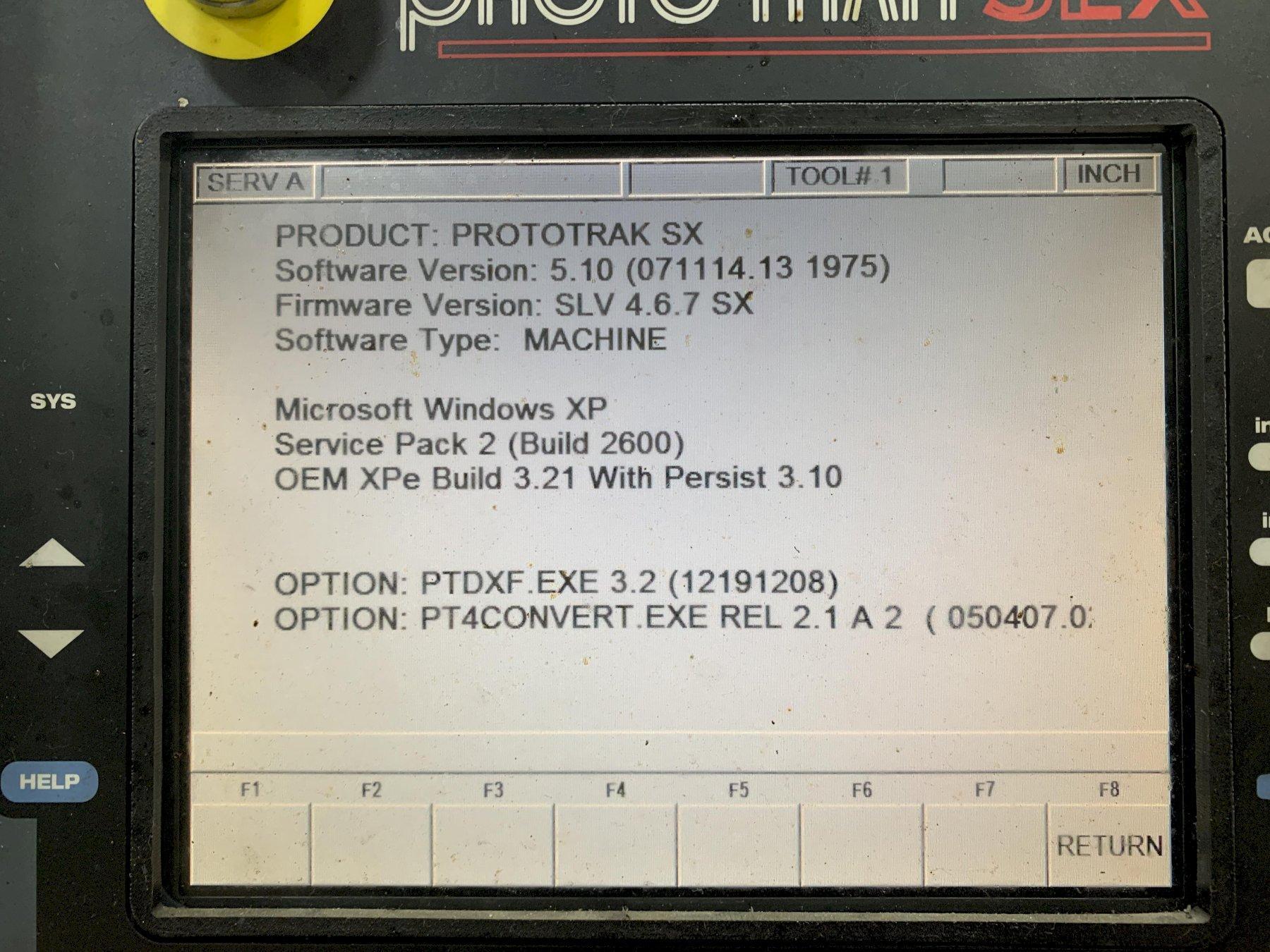

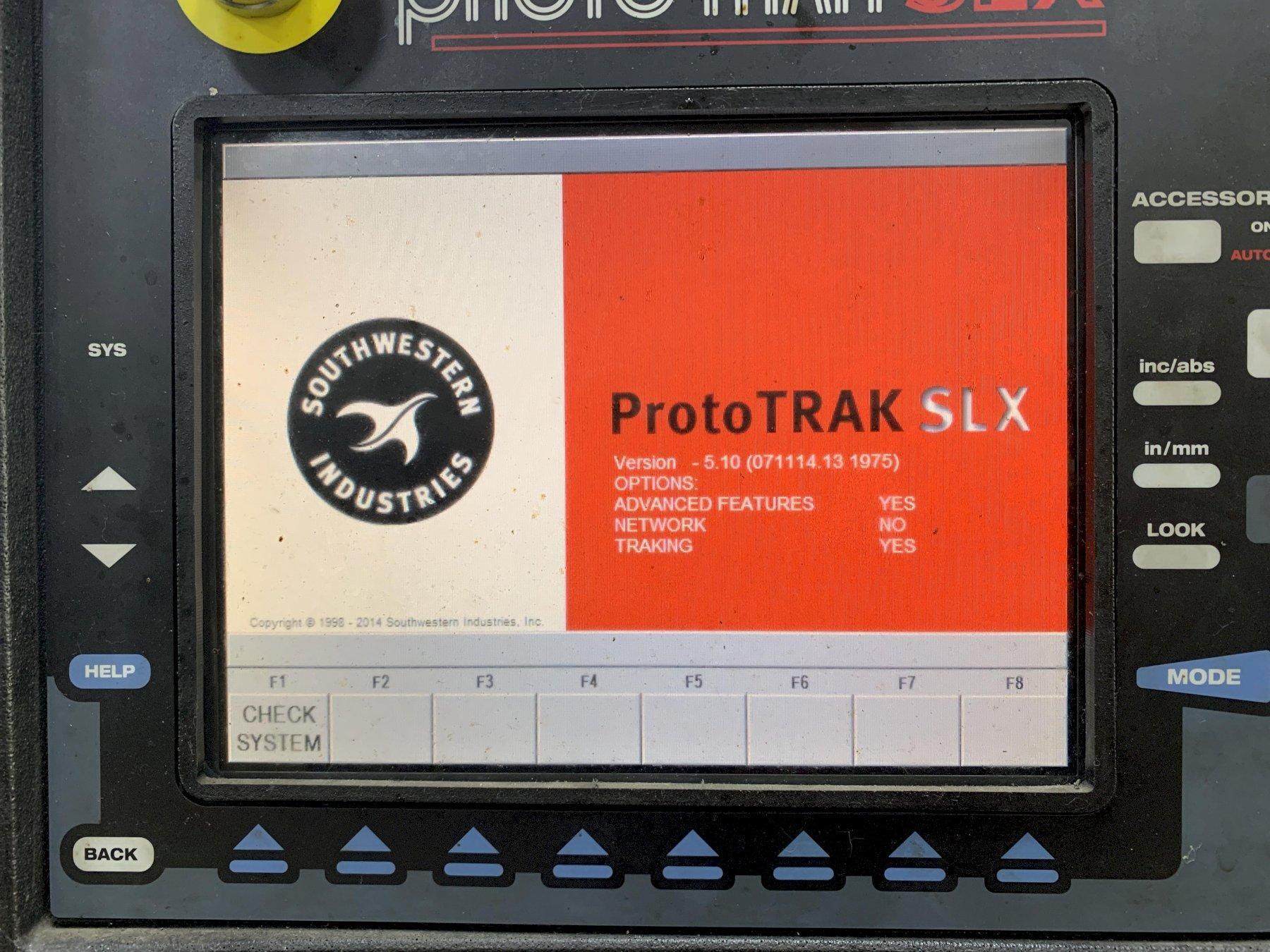

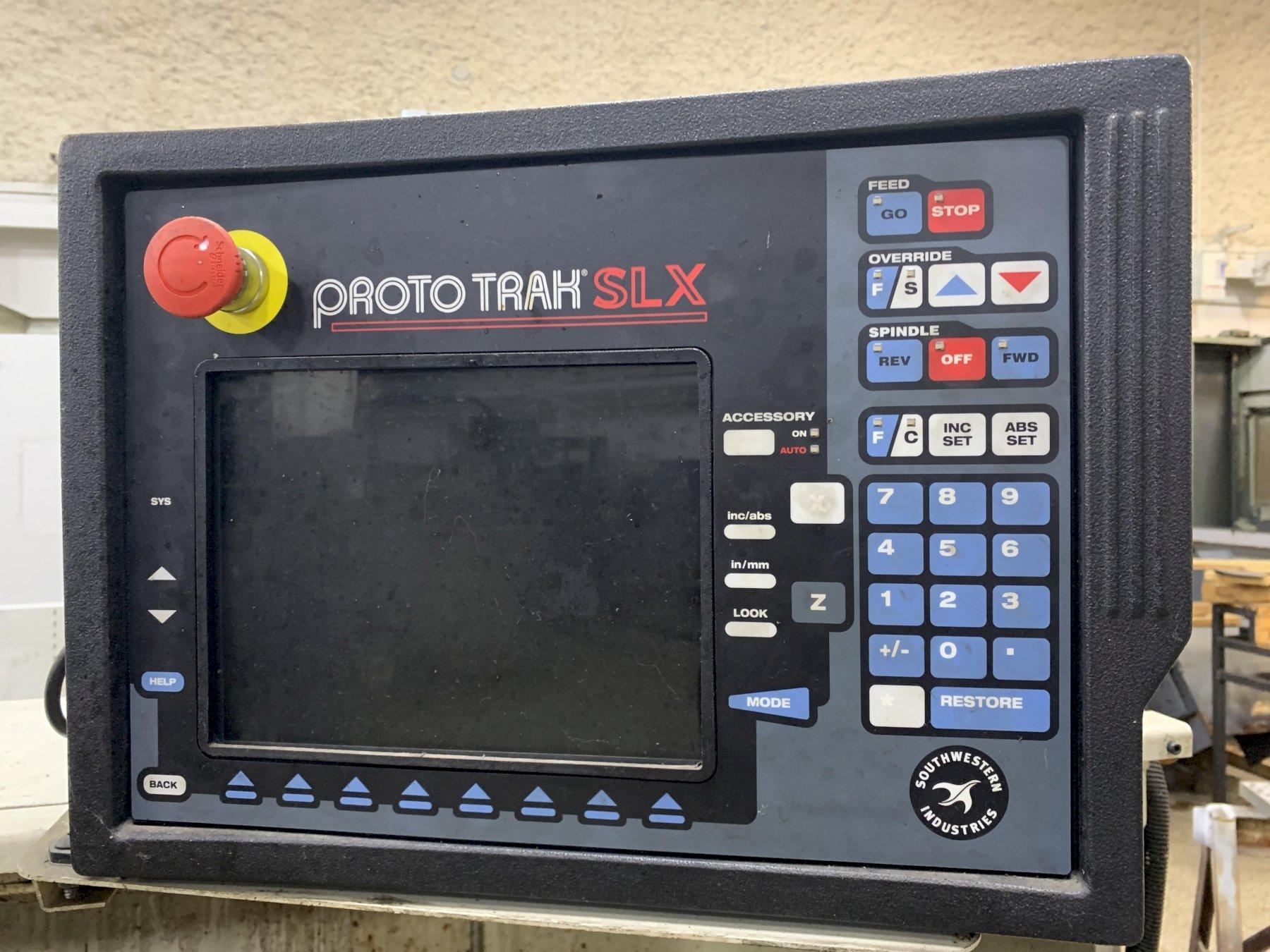

- ProtoTRAK SLX CNC Control with 10.4" color screen, USB ports, graphics
- 4-Position Automatic Electric Tool Turret (for quick tool changes)
- 8" 3-Jaw Chuck
- Air Actuated 5C Collet Attachment, with collets
- Live Center
- Tailstock
- Coolant System
- Work Light
- Chip Enclosure/Guard
- Electronic Handwheels for manual operation
- Control Options - TBD

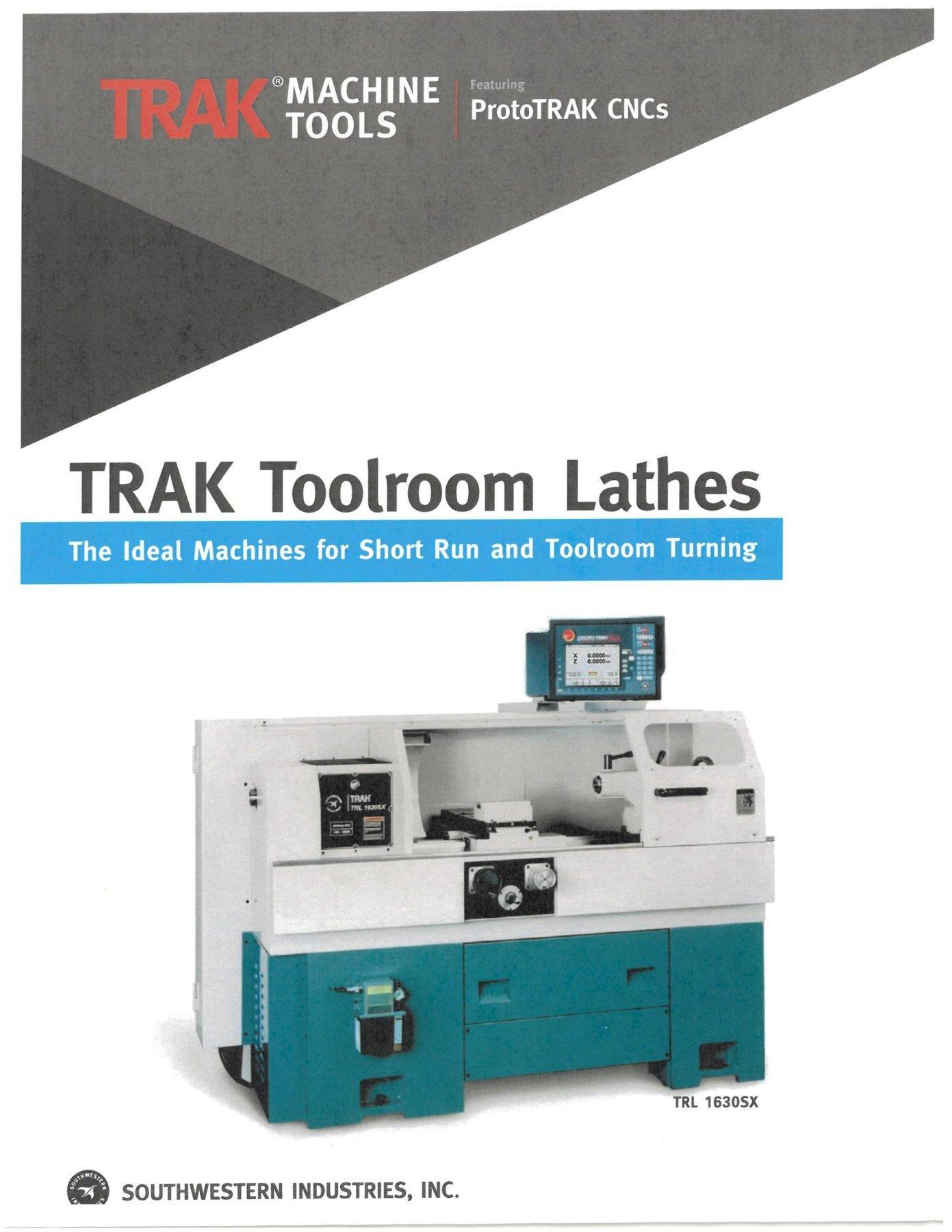

Why Choose the TRAK TRL 1630SX with 4-Way Auto Toolpost? This lathe bridges the gap between traditional engine lathes and full CNC production machines. The ProtoTRAK SLX makes programming intuitive (no G-code required for most jobs), while the 4-position auto turret adds real efficiency for shops running small batches or parts needing multiple tools. With a generous 16" swing, 30" centers, and 2.12" bar capacity, it's ideal for toolroom work, prototypes, maintenance, and light production—especially where quick changeovers matter. Users praise its reliability, ease of use, and Southwestern Industries' support.
Ideal For
- Job shops and toolrooms
- Prototype and short-run production
- Maintenance/repair facilities
- Operators transitioning from manual to CNC
*Specifications and details subject to independent verification by the buyer.
* Seller can load by appointment.
