Specifications
Equipped With
Preliminary Specifications:

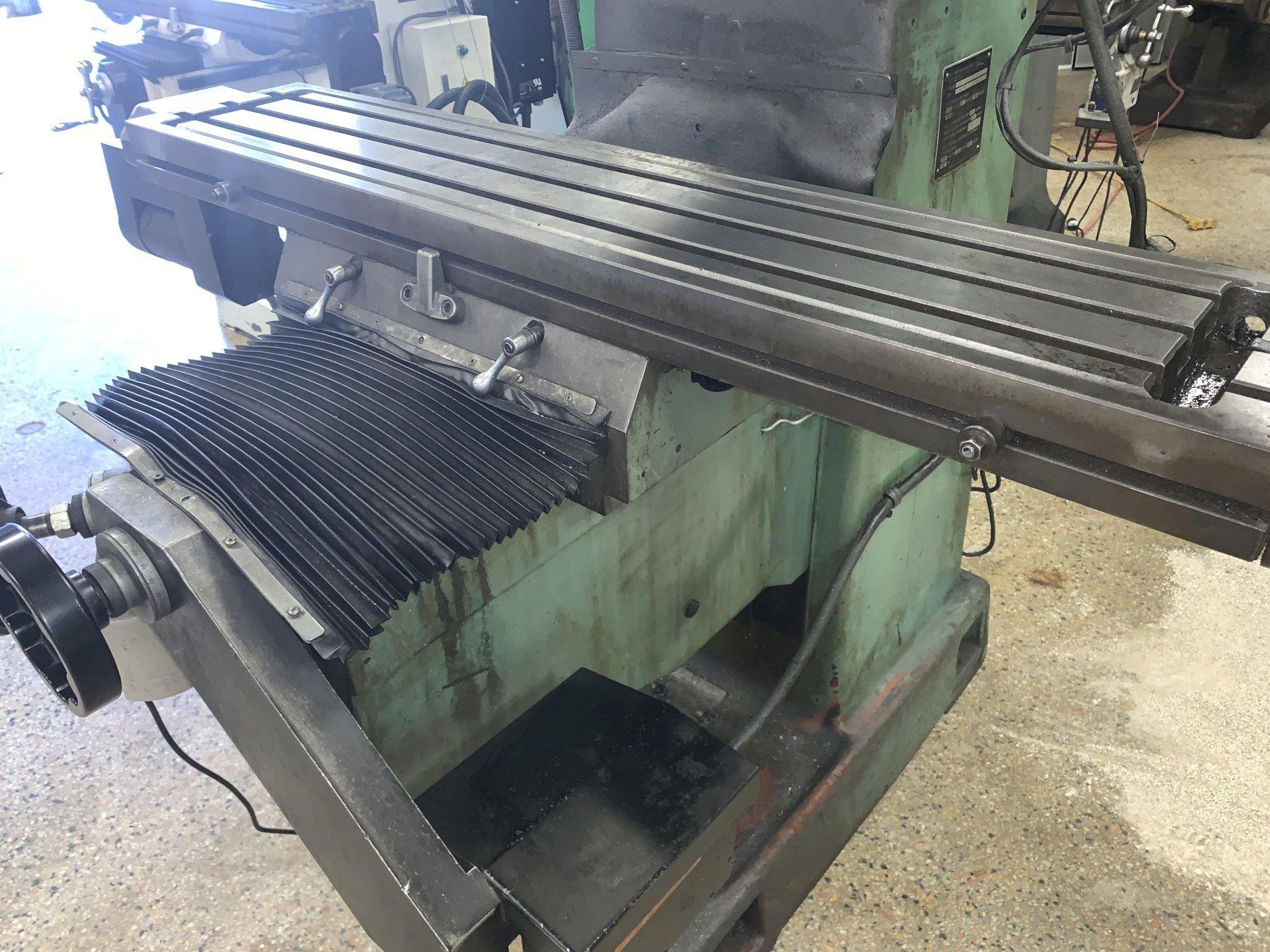

Table Size - 10" x 50"
Table Travel - 32"
Saddle Travel - 15"
Knee Travel - 16"
Ram Travel - 5"
Maximum Quill Travel - 5"
Quill Diameter - 3-3/8"
Spindle Taper - R8
Spindle Speeds - 60 - 4200 RPM
Head Tilt - 45 F-B / 90 L-R
Spindle Motor - 3 HP
Max Rapid Feed - 100 IPM

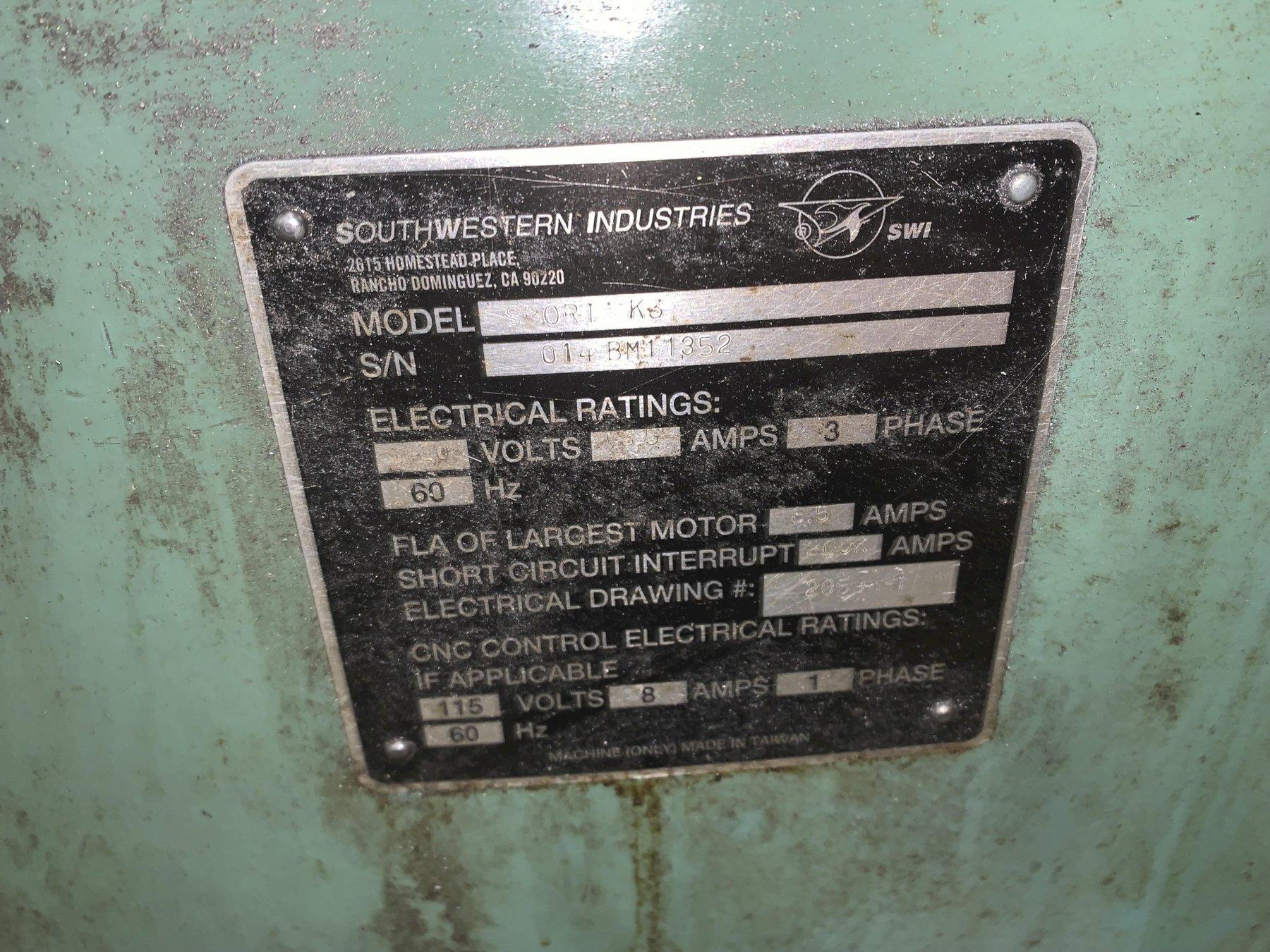

Electrics - 3/60/220 Volt
Table Weight Capacity - 850 Lbs.
Distance Spindle Nose to Table, Max - 17-1/8"
Machine Dimensions - 71" x 59" x 84"
Machine Weight, Approx - 2850 Lbs.
Equipped with:

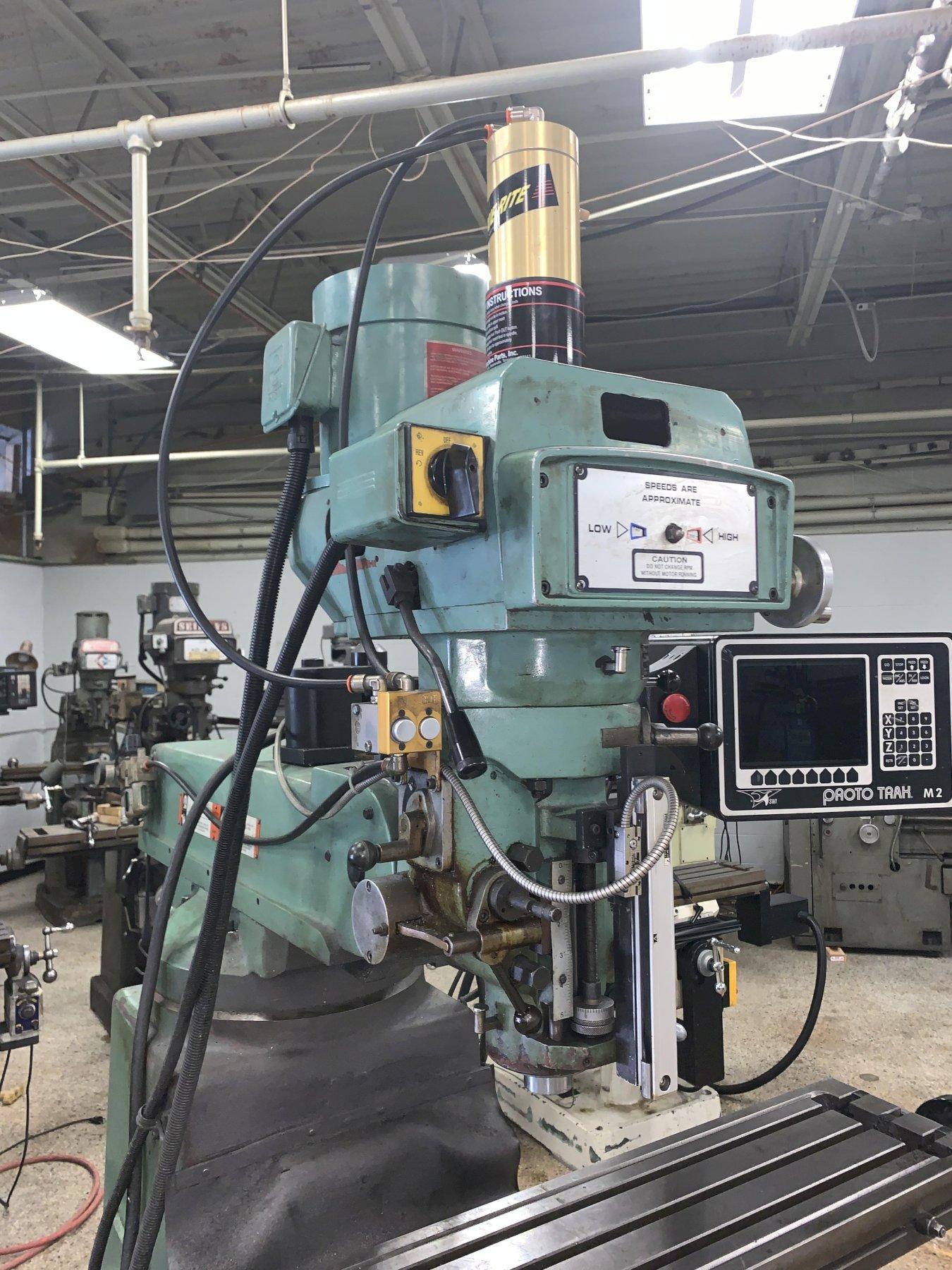

Prototrak M2 Control Servo Type Power Feed to Knee
1-Shot Lubrication
Z-Axis Glass Scale Feedback
Maxi-Torque Power Drawbar
