Specifications
Equipped With
Specifications:
Drilling Capacity in ms -1.97"
Distance, column to spindle center - 11.4" to 45.3"
Distance, spindle end to base surface - 16.1" to 51.9"
Column diameter - 12.6"
Head travel on arm - 33.9"
Arm vertical travel on column - 24.4"
Spindle hole taper - No. 4 MT
Spindle speeds - 40 to 1800 rpm
Spindle traverse in head - 11.8"
Base size - 33.9" x 74.8" x 7.48"
Base work surface - 27.8" x 43.3"
Spindle motor - 3 HP
Weight, approx - 6,600 lbs.
Equipped with:
Plain box table
Tsudakoma Vise
Push Button Power Clamping
Coolant Pump
Wired for 3/60/440v operation
Japanese / Mori Seiki quality

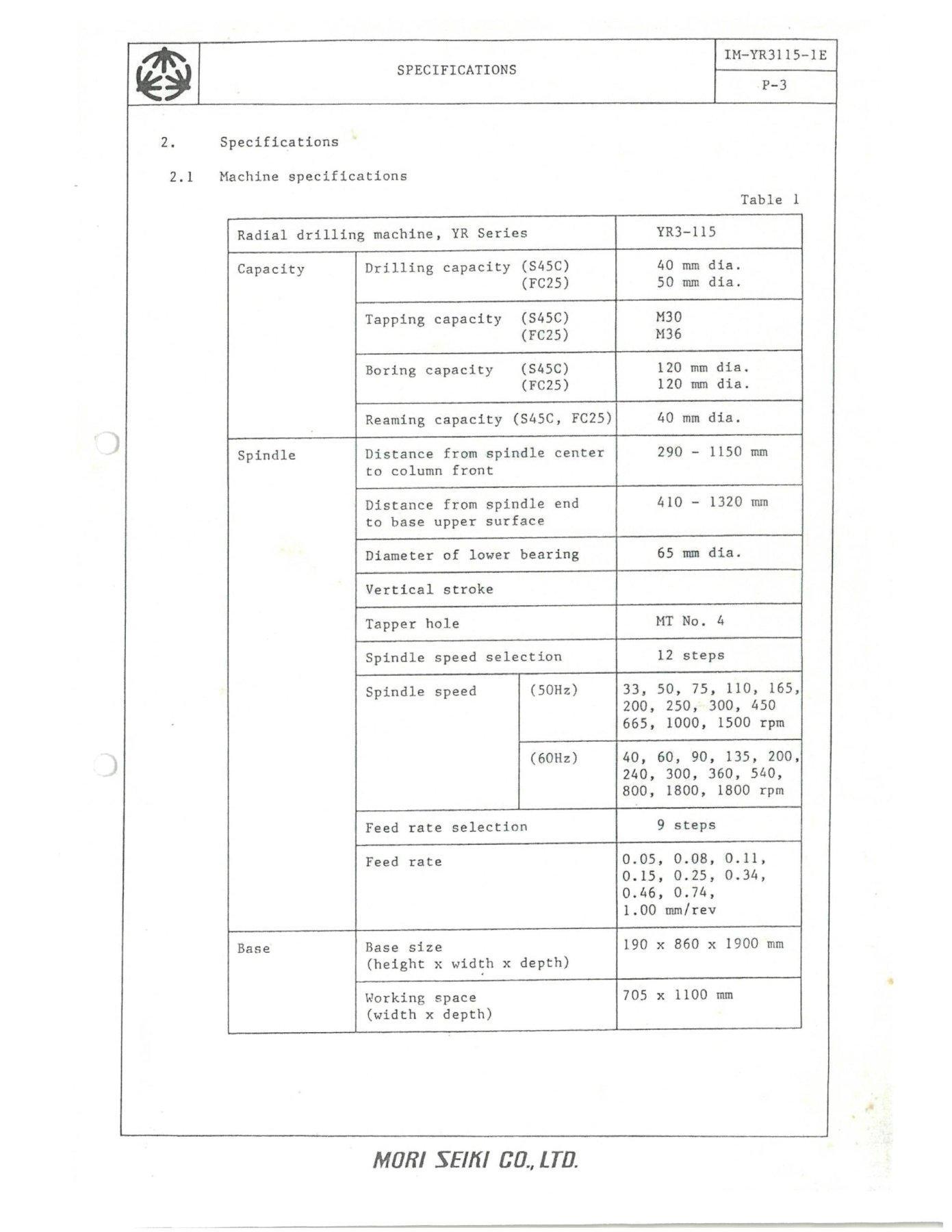

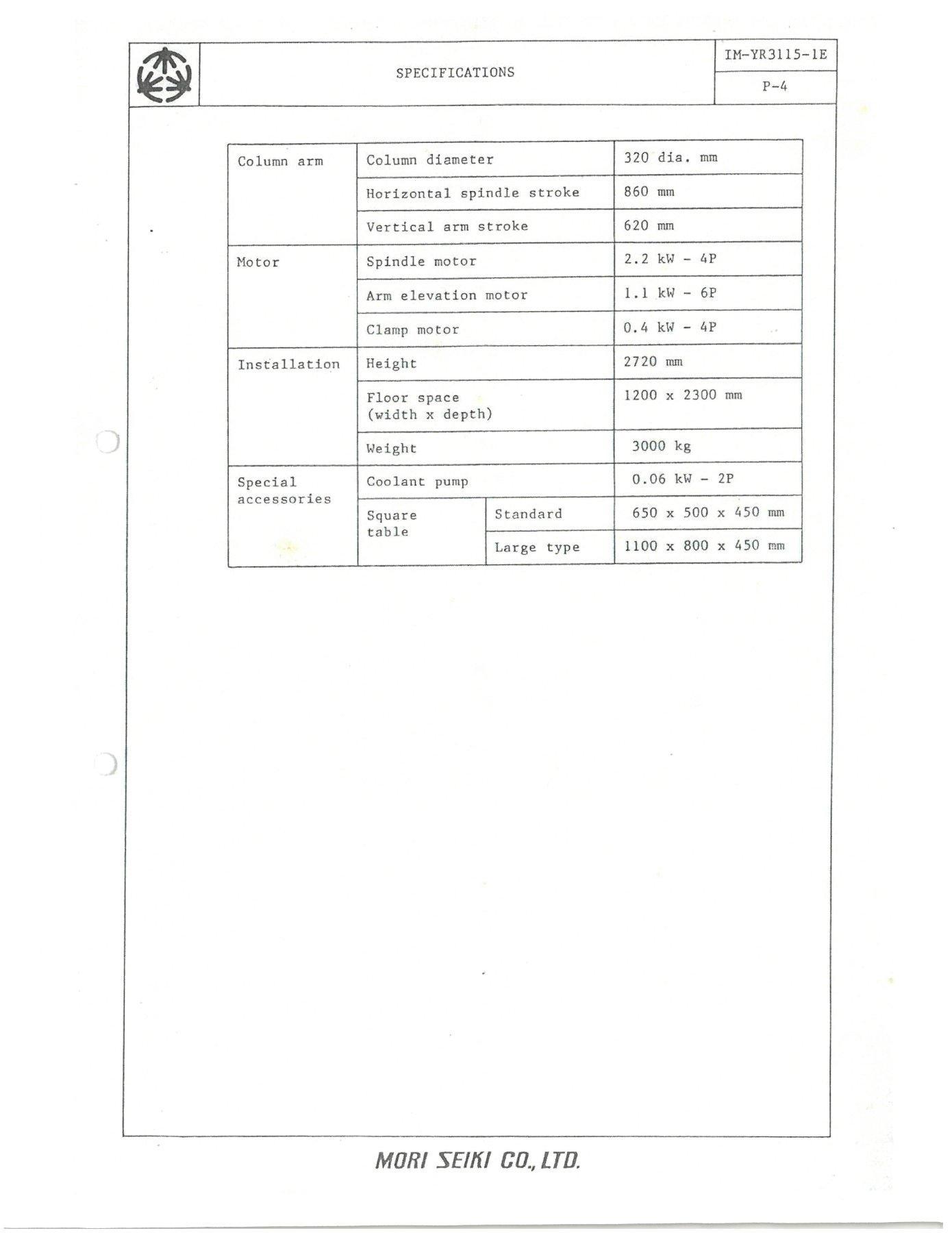

Instruction Manual Available as pdf.
Note - Availability pending
Specifications subject to independent verification by the buyer.
Seller can load by appointment.
This machine is from tool room environment and looks to be in very good condition.
